MAX22216-EVAL Evaluation Board • 319-101029, Rev 1: 03/24

4.2 ChipClick

To configure the control pins for the MAX22216-EVAL, open the Chip Click tool by clicking the appropriate
entry in the tool tree. By hovering the mouse over a pin in the graphical view, a description of the pin's
possible configurations is shown. To change the pin state, click on the small boxes next to the pin name.
There are three possible states that tie to GND, to VCC_IO and to OPEN (tri-stated). Landungsbruecke
then controls the pin directly through the Eselsbruecke interface. Signals read by Landungsbruecke are
read only and their status is displayed within the small boxes.

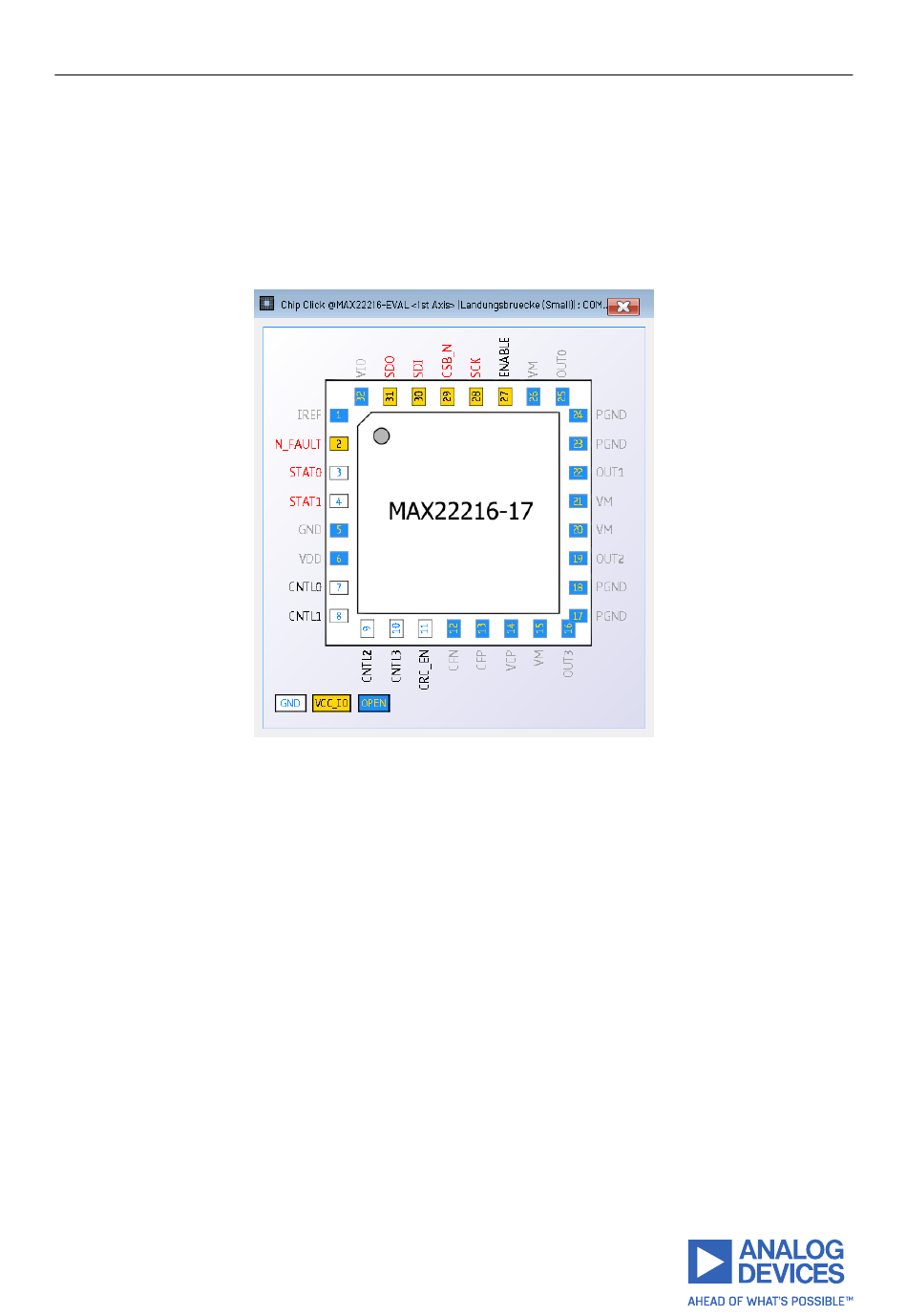

Figure 9: MAX22216 Graphical Pin Control Within the Chip Click Tool
