MAX22216-EVAL Evaluation Board • 319-101029, Rev 1: 03/24
2 Getting Started
Required Equipment
• MAX22216-EVAL evaluation board
• Landungsbruecke with latest firmware
• Eselsbruecke bridge board
• Load (e.g. Solenoid)
• USB interface
• Power supply
• Latest TMCL-IDE and PC
• Cables for interface, load, and power
Precautions
• Do not mix up connections or short-circuit
pins.
• Avoid bundling I/O wires with load wires.
• Do not exceed the maximum rated supply
voltage!
• Do not connect or disconnect the load
while powered!
• START WITH POWER SUPPLY OFF!
• Set the COM jumper correctly.
Use +VM for COM as default.

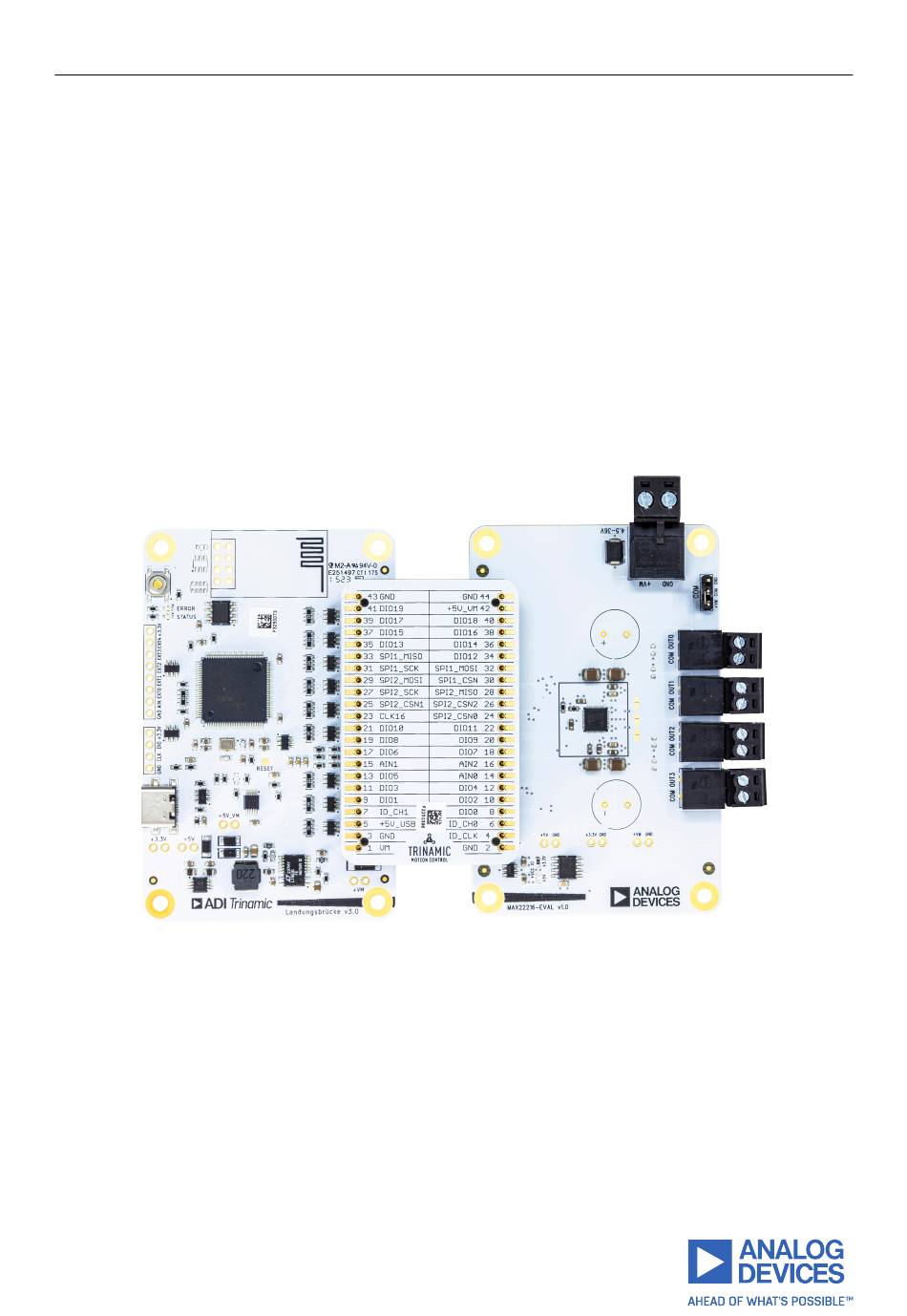

Figure 1: Getting Started
3/17
