MAX22216-EVAL Evaluation Board • 319-101029, Rev 1: 03/24
4.9 OTP Programming
To configure the one-time programmable (OTP) registers for the MAX22216-EVAL, open the OTP Program-
mer tool by clicking the appropriate entry in the tool tree. By pressing Refresh, currently set registers
within the Registry Browser can be applied to this tool. There is a short waiting period while the register
values are loaded. Registers that can be programmed via by the OTP tool are displayed within the Register
Browser with an identifier P in column ACS. Some registers can only be set by OTP programming (e.g. RP
registers).
Info
CAUTION
Refer to the MAX22216 data sheet for additional information about OTP program-
ming as preconditions are required in certain cases.
Exercise caution when using the OTP tool. OTP registers cannot be reset. To
avoid creating an unusable device, check all settings before programming the
device.

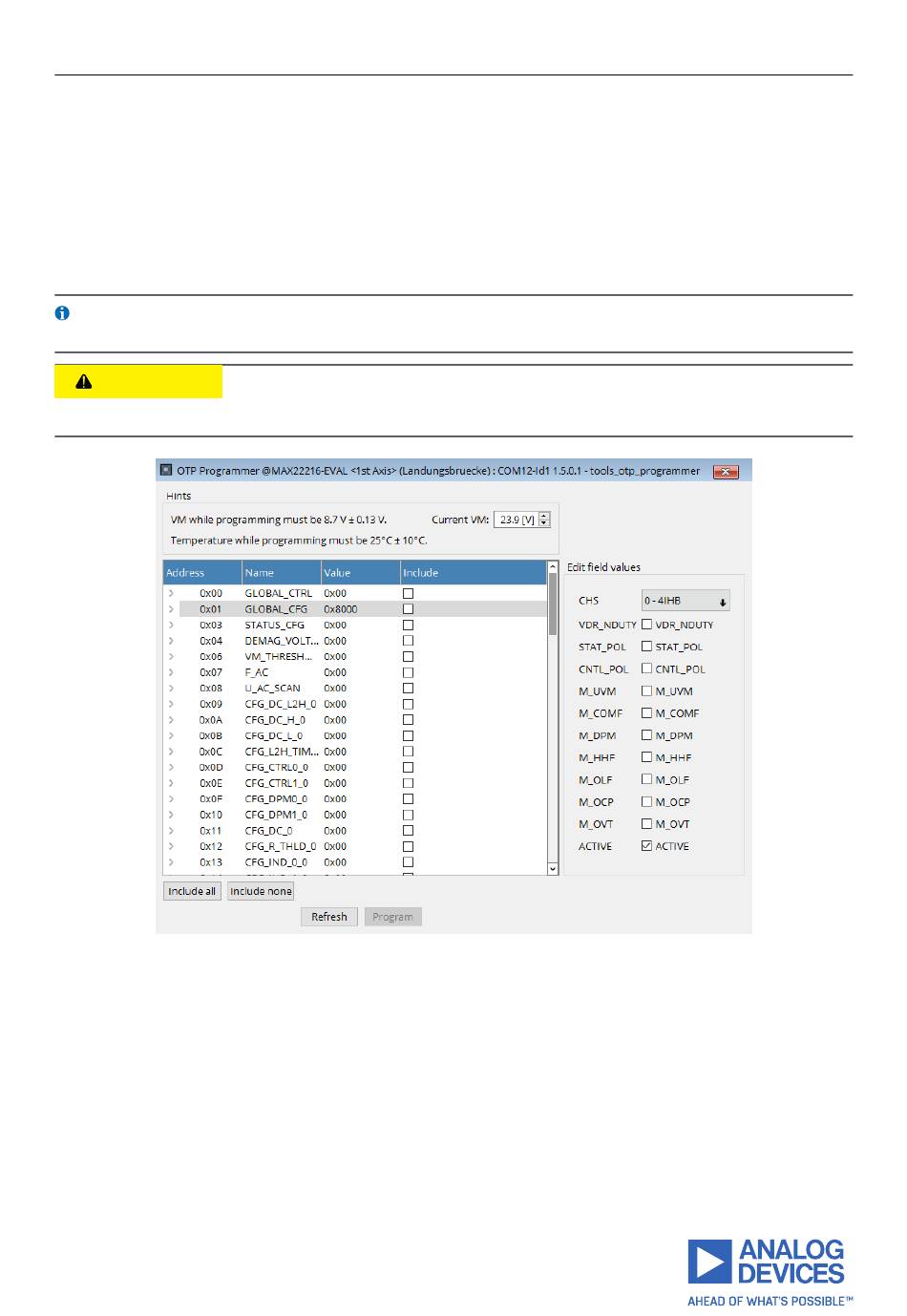

Figure 16: Configuring the MAX22216 OTP Registers
16/17
