BATTERY PACKS AND ACCESSORIES
2

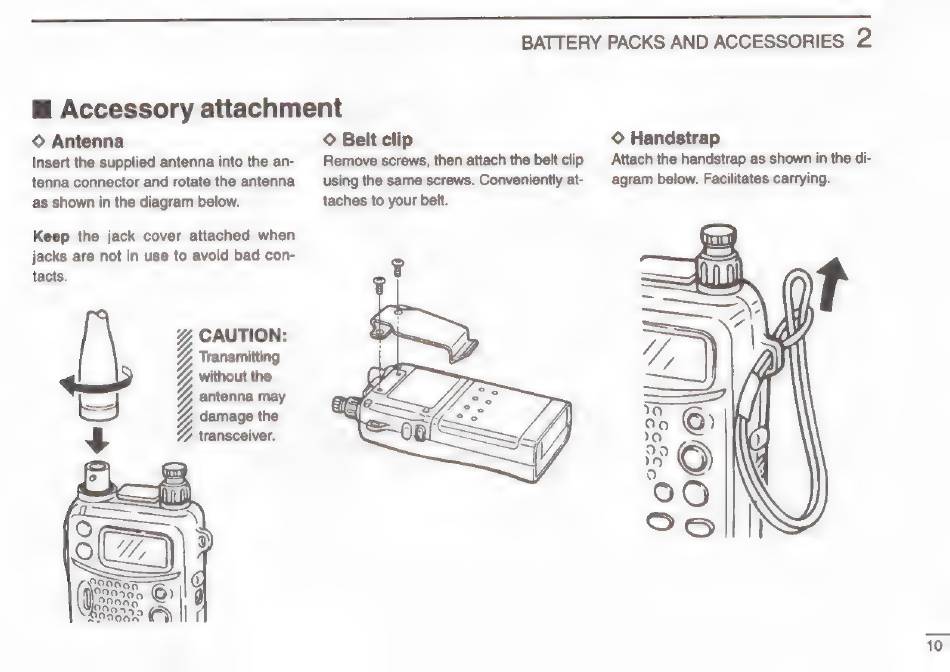

@ Accessory attachment
© Antenna
Insert the supplied antenna into the an-
tenna connector and rotate the antenna
as shown in the diagram below.
Keep the jack cover attached when
jacks are not in use to avoid bad con-
tacts.
Y, CAUTION:
Y Transmitting
Z without the
© Belt clip
© Handstrap
Remove screws, then attach the belt clip
Attach the handstrap as shown in the di-
using the same screws. Conveniently at-
agram below. Facilitates carrying.
taches to your belt.
