Backyard Discovery TIMBER CROSSING Manual page 9

Owner's Manual - Parts Identification
T03
SUPPORT BOARD - W4L18552
1"x1 3/8"x24 3/8" (24x34x619)
(x1)
Y01
(x6)

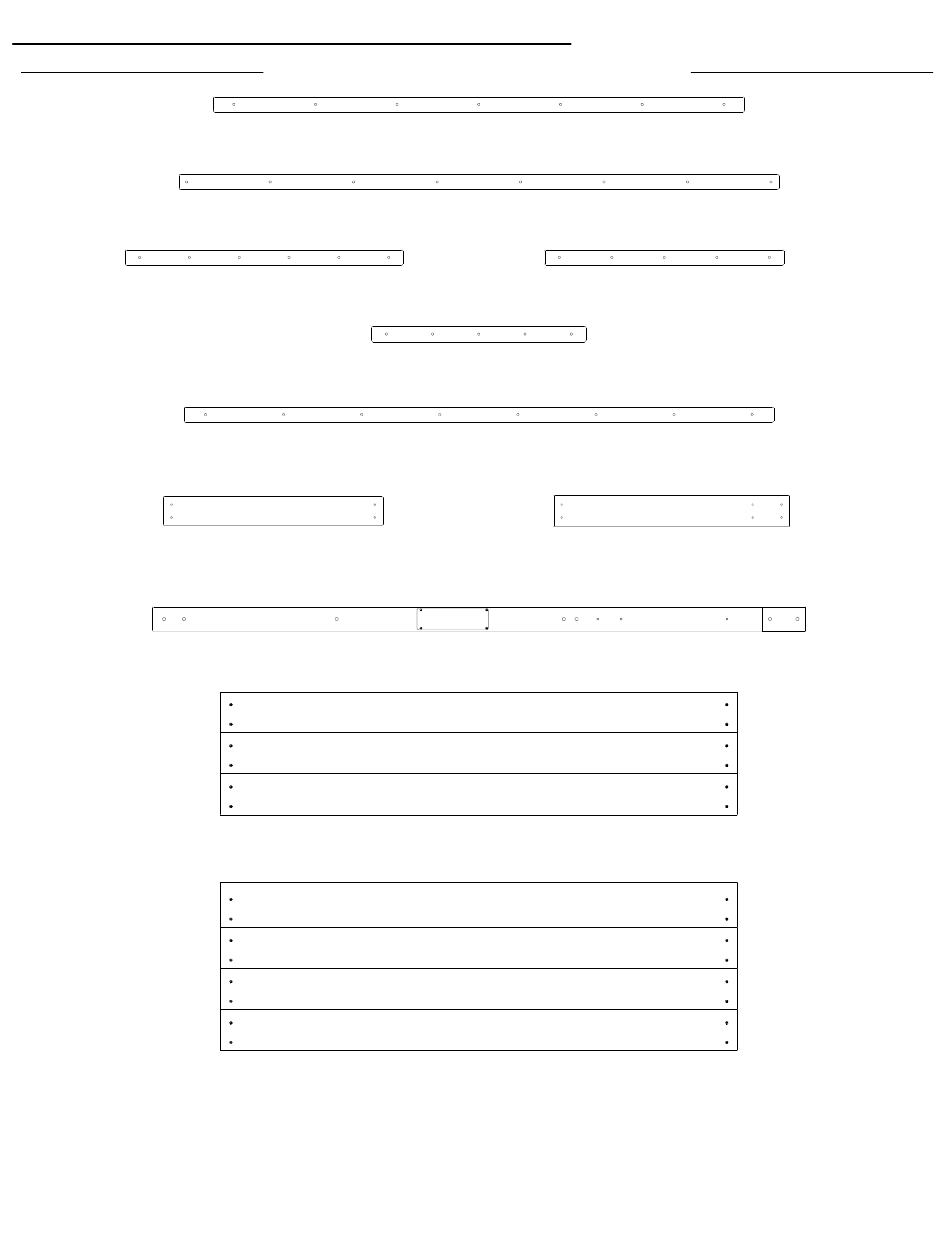

Wood Components (Not to Scale)
T01
(x2)
T02
(x1)
T05
(x2)
T06
(x2)
WALL BOARD - W4L18630
5/8"x3 5/8"x26 7/8" (16x91x684)
B01
RP1
(x2)
RP2
(x2)
SUPPORT BOARD - W4L18536
1"x1 3/8"x46 5/8" (24x34x1184)
SUPPORT BOARD - W4L18546
1"x1 3/8"x52 5/8" (24x34x1336)
T04
(x1)
SUPPORT BOARD - W4L18563
1"x1 3/8"x18 7/8" (24x34x478)
SUPPORT BOARD - W4L18570
1"x1 3/8"x51 3/4" (24x34x1314)
Y02
(x2)
POST - W2A03790
(x1) 3"x3"x80 1/8" (76x76x2036)
PEAK ROOF PANEL - W2A03791
1 5/8"x15"x59 1/8" (42x382x1613)
ROOF PANEL - W2A03792
1 5/8"x20 5/8"x66" (42x524x1613)
9
SUPPORT BOARD - W4L18553
1"x1 3/8"x21" (24x34x533)
WALL BOARD - W4L18590
5/8"x3 7/8"x29" (16x99x736)
