Backyard Discovery TIMBER CROSSING Manual page 4

Owner's Manual - Parts Identification
F02
UPRIGHT - W4L18548
1 3/8"x2 3/8"x30 1/2" (36x60x776)
(x1)
F04
UPRIGHT - W4L18550
1 3/8"x2 3/8"x30 1/2" (36x60x776)
(x1)

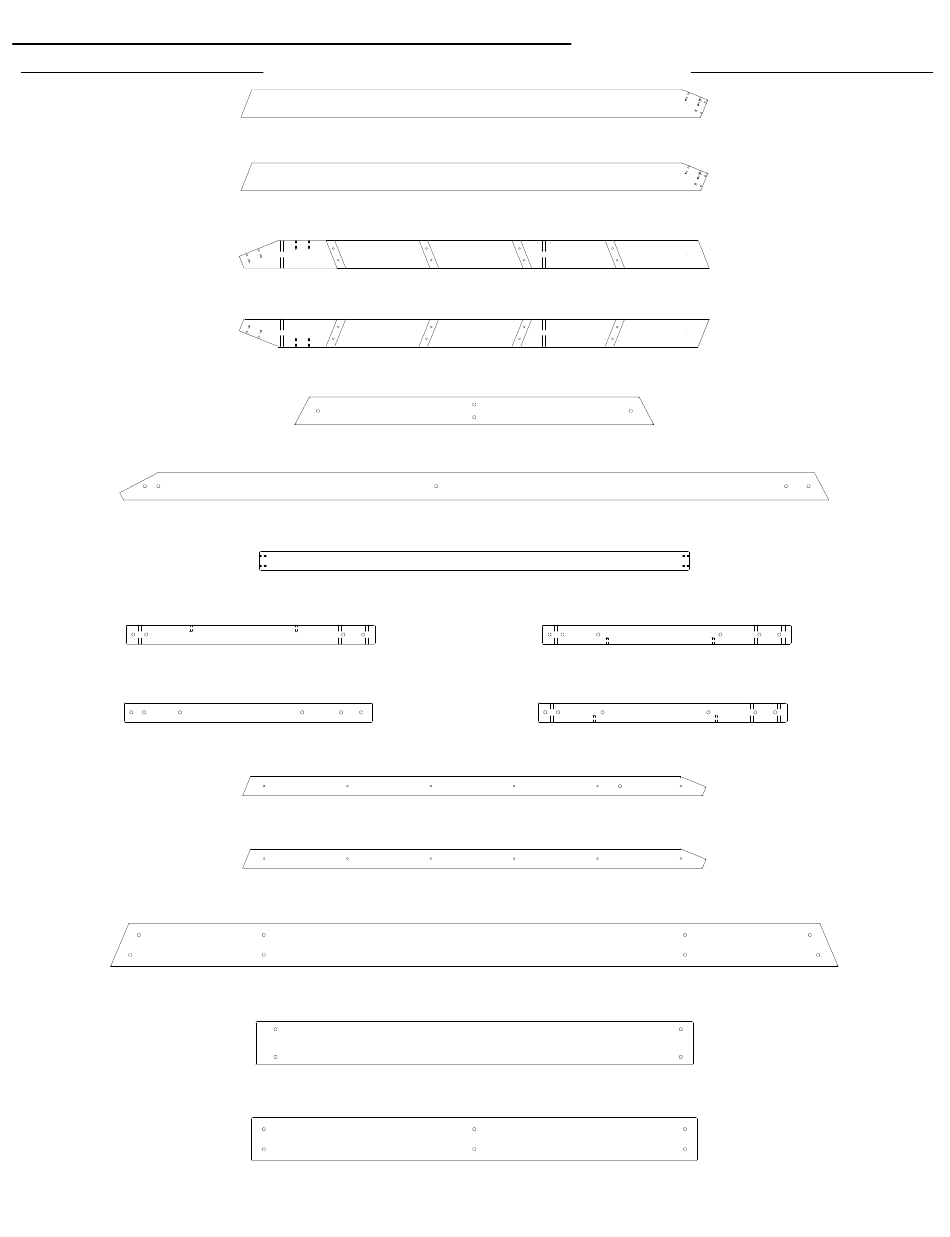

Wood Components (Not to Scale)
E07
LEFT RAIL - W4L18612
1 3/8"x3 3/8"x57 3/8" (36x86x1456)
(x1)
E08
RIGHT RAIL - W4L18613
(x1) 1 3/8"x3 3/8"x57 3/8" (36x86x1456)
E77
LEFT UPRIGHT - W4L18554
1 3/8"x3 3/8"x57 3/4" (36x86x1466)
(x1)
E78
RIGHT UPRIGHT - W4L18555
1 3/8"x3 3/8"x57 3/4" (36x86x1466)
(x1)
E79
END SUPPORT - W4L18634
1 1/2"x3 1/2"x44" (36x86x1120)
(x1)
E80
ANGLE BRACE - W4L18633
1 3/8"x3 3/8"x87 1/8" (36x86x2212)
(x2)
F01
FLOOR JOIST - W4L18547
1 3/8"x2 3/8"x52 3/4" (36x60x1340)
(x2)
F06
SUPPORT RAIL - W4L18610
1 3/8"x2 3/8"x56 7/8" (36x60x1446)
(x2)
F07
SUPPORT RAIL - W4L18614
1 3/8"x2 3/8"x56 7/8" (36x60x1446)
(x2)
G01
GROUND BOARD - W4L18532
1"x5 1/4"x89 3/8" (24x134x2270)
(x1)
G02
GROUND BOARD - W4L18542
1"x5 1/4"x53 3/4" (24x134x1364)
(x2)
G03
GROUND BOARD - W4L18543
1"x5 1/4"x54 3/4" (24x134x1390)
(x1)
F03
UPRIGHT - W4L18549
1 3/8"x2 3/8"x30 1/2" (36x60x776)
(x1)
F05
UPRIGHT - W4L18567
1 3/8"x2 3/8"x30 1/2" (36x60x776)
(x2)
4
