Backyard Discovery TIMBER CROSSING Manual page 61

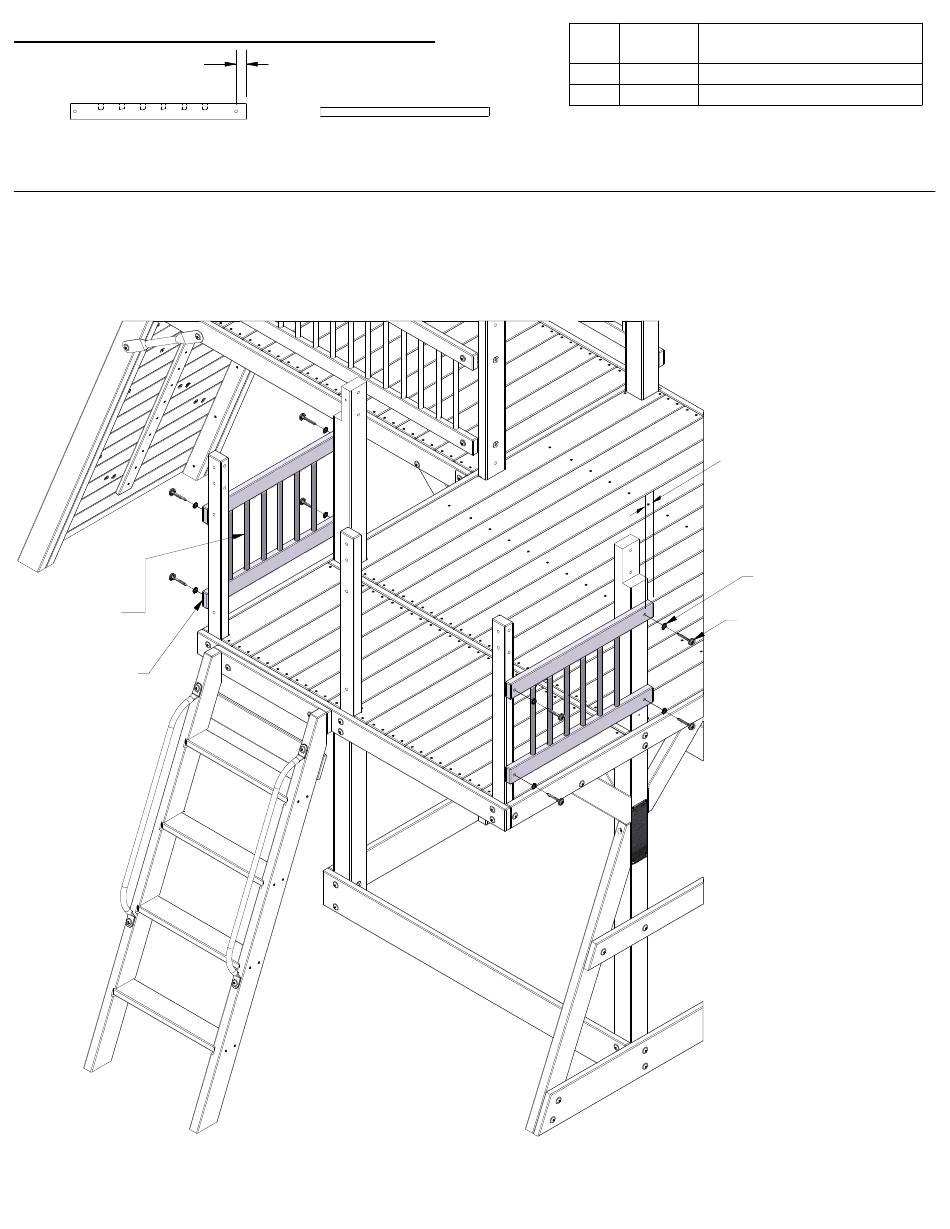

STEP 22 - FORT ASSEMBLY
1 1/2 in
[38 mm]
J01
WALL RAIL - W4L18559
1"x2 3/8"x25 1/4" (24x60x642)
(x4)
TIP:
FOLLOW BELOW ORDER:
1. INSTALL LOWER WALL RAIL BOARDS
2. INSTALL METAL TUBES
3. INSTALL TOP WALL RAIL BOARDS
597
(x12)
METAL TUBE
J01
(x4)
A4M00597
METAL TUBE
(x12)
61
PART
QTY
DESCRIPTION
NUMBER
8 H100197 LAG SCREW WH 5/16x2-1/2 BLK
8 H100198 WASHER LOCK EXT 8x19 BLK
1 1/2 in
[38 mm]
198
WASHER - 8x19
197
LAG SCREW - 2 1/2"
(x8)
(x8)
