Page 1: Warranty Information

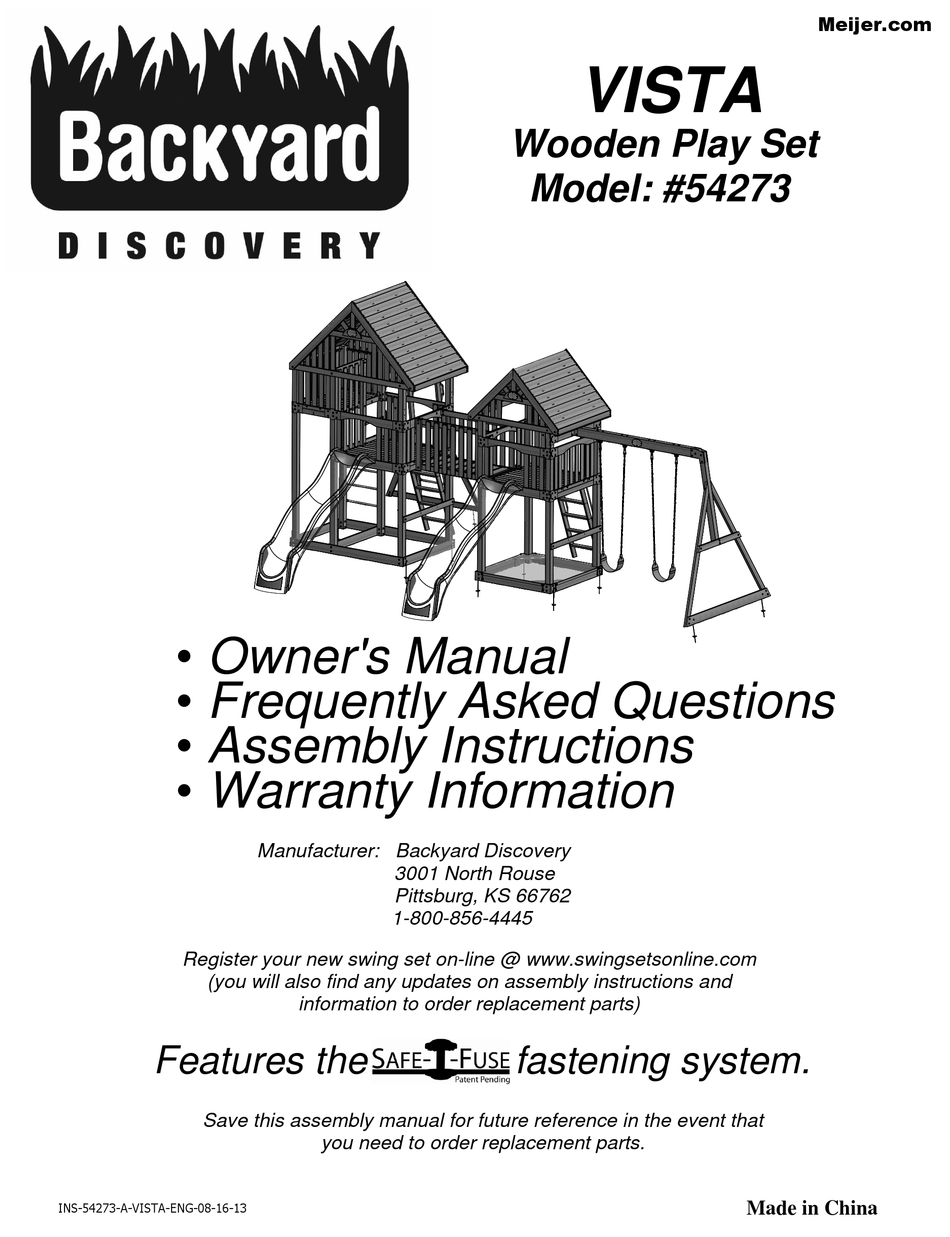

• Frequently Asked Questions • • Assembly Instructions • • Warranty Information Manufacturer: Backyard Discovery 3001 North Rouse Pittsburg, KS 66762 1-800-856-4445 Register your new swing set on-line @ www.swingsetsonline.com (you will also find any updates on assembly instructions and... - Page 2 Meijer.com STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...
-
Page 3: For Your Records
Meijer.com Owner’s Manual Play Set Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application. -
Page 4: Positioning Your Playcenter
Meijer.com Owner’s Manual Play Set Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Playcenter 1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. -
Page 5: Operating Instructions
Meijer.com Owner’s Manual Play Set The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9"... -
Page 6: Maintenance Instructions
Meijer.com Owner’s Manual Play Set 18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they cannot be looped back on it. 19. Instruct children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard. -
Page 7: Disposal Instructions
Third Party Assembly: Customer may, in their sole discretion, elect to use a third party person or service to assemble this product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any assembly services’. - Page 8 Meijer.com Owner’s Manual Play Set APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov/cpscpub/pubs/323.html. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
- Page 9 Meijer.com Owner’s Manual Play Set The American Society for Testing and Materials takes no position respecting the validity of any parent right asserted in connection with any item mentioned in this standard. Users of this standard are expressly advised that determination of the validity of any such parent rights, and the risk of infringement of such rights, are entirely their own responsibility.
- Page 10 5. How often should the playset be stained? Backyard Discovery recommends the playset be stained once each year. A water or oil based stain can be used at the customer’s discretion. 6. Why does it seem that my swing set is developing cracks? Wood is a natural material;...
-
Page 11: Tools Required For Installation
Meijer.com Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Claw Hammer) (Phillips Screw Driver) (Tape Measure) (Drill Attachments: (3/16"... - Page 12 Meijer.com Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 38'-2 1/2" [11.6 m] [1.8 m] 18'-4 1/2"...
- Page 13 Meijer.com VISTA PLAYSET Box Identification Modules Used (NOT TO SCALE) TOWER I BRIDGE TOWER II WITH LOFT MODEL #54013 MODEL #5422 MODEL #54113 (2 BOX SET) (2 BOX SET) 10 FT VACUUM SLIDE MONKEY BAR 2 POSITION SWING BEAM (2) MODEL #50226 MODEL #69012 MODEL #5404...
-
Page 14: Important Notes
Meijer.com ***READ ME FIRST!*** Important Notes 1) OPEN AND ASSEMBLE ONE BOX AT A TIME to prevent confusion during assembly. 2) USE THIS MANUAL IN CONJUCTION WITH THE ASSEMBLY MANUAL FROM EACH BOX to properly assemble your playset. 3) Note "Omitted" and "Modified" steps as found on each page of this manual. 4) Due to the modularity of this playset, some boards and hardware may not be used. - Page 15 Meijer.com VISTA PLAYSET "Order of Assembly" TOWER II WITH LOFT - MODEL #54113 (2 BOX SET) TOWER I - MODEL #54013 (2 BOX SET) BRIDGE - MODEL #5422 2 POSITION SWING BEAM - MODEL #5404 10 FT VACUUM SLIDE - (2) MODEL #50226 MONKEY BAR - MODEL #69012...
- Page 16 Meijer.com VISTA PLAYSET Tower II with Loft Model #54113 START • OPEN "TOWER II WITH LOFT" BOX MODEL #54113 AND USE THE INSTRUCTION MANUAL. • MODIFIED STEPS: STEP 3 - DO NOT ASSEMBLE G1 BOARD. STEP 40 - ASSEMBLE ONLY THE OUTSIDE PLUG BOARDS G12, M1, M13, & (2) TZ BRACKETS. •...
- Page 17 Meijer.com VISTA PLAYSET Tower I Model #54013 • OPEN "TOWER I" BOX MODEL #54013 AND USE THE INSTRUCTION MANUAL. • MODIFIED STEPS: STEP 22 - PLACE A PLUG IN THE SWING BEAM (RIGHT SIDE) OPENING. DO NOT PLUG THE OPPOSITE SIDE. •...
- Page 18 Meijer.com VISTA PLAYSET Bridge Model #5422 • OPEN "BRIDGE" BOX MODEL #5422 AND USE THE INSTRUCTION MANUAL. • OMITTED STEPS: 9, 10, 11, 12 & 13. • YOUR BRIDGE SHOULD LOOK LIKE THE ABOVE ILLUSTRATION WHEN FINISHED.
- Page 19 Meijer.com VISTA PLAYSET 2 Position Swing Beam Model #5404 • OPEN "2 POSITION SWING BEAM" BOX MODEL #5404 AND USE THE INSTRUCTION MANUAL. • YOUR 2 POSITION SWING BEAM SHOULD LOOK LIKE THE ABOVE ILLUSTRATION WHEN FINISHED.
- Page 20 Meijer.com VISTA PLAYSET 10 Ft Vacuum Slide (2) Model #50226 • OPEN "10 FT VACUUM SLIDE" BOX MODEL #50226 AND USE THE INSTRUCTION MANUAL. • OMITTED STEPS: 1 & 2. • REPEAT PROCESS TO ATTACH OTHER SLIDE. • YOUR 10 FT VACUUM SLIDES SHOULD LOOK LIKE THE ABOVE ILLUSTRATION WHEN FINISHED.
- Page 21 Meijer.com VISTA PLAYSET Monkey Bar Model #69012 • OPEN "MONKEY BAR" BOX MODEL #69012 AND USE THE INSTRUCTION MANUAL. • OMITTED STEPS: 6, 7 & 8. • YOUR MONKEY BAR SHOULD LOOK LIKE THE ABOVE ILLUSTRATION WHEN FINISHED. FINISH ED...
- Page 22 Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
