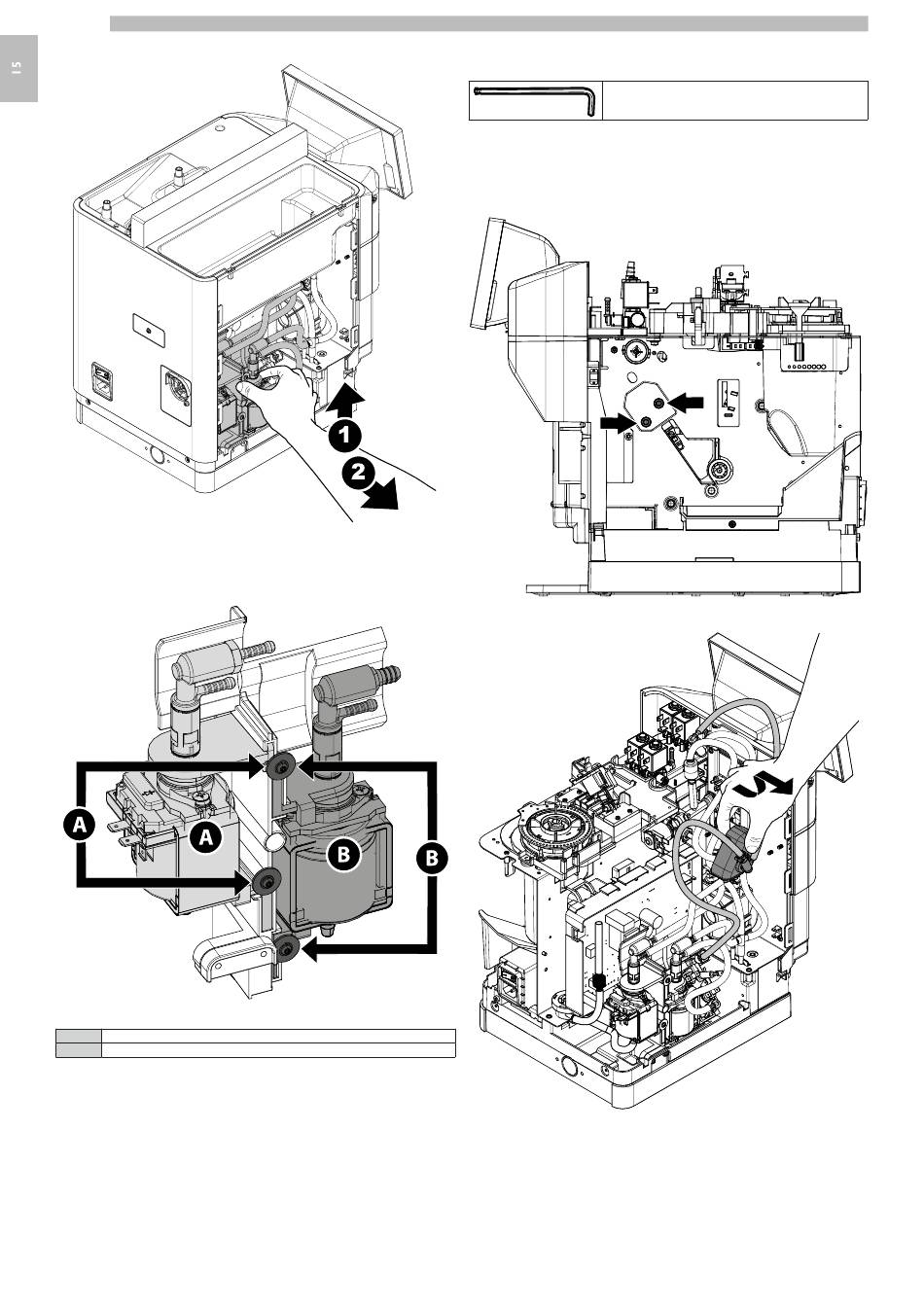

Slip the pump holder off.
Using a Torx T10 screwdriver, remove the pair of screws locking the pump holder
of the pump that we want to replace.
A
Steam pump
B Coffee pump
90
15.6

Disassemb. the boiler pin

The following tools are necessary to remove this component:
Allen wrench no. 5
Disassemble the external covers as described above, until disassembly of the upper
cover, to access the component to be replaced. Remove the brew group.
Remove the 2 screws using a no. 5 Allen wrench as shown in figure.
Remove the boiler pin.
Disconnect the pipes indicated in the picture.
