Electronics; Boiler Pin - Saeco TALEA Service Manual

TALEA / ODEA - LINE
7.3.

Electronics

1
3
7.4. Boiler's pin
1
Saeco International Group

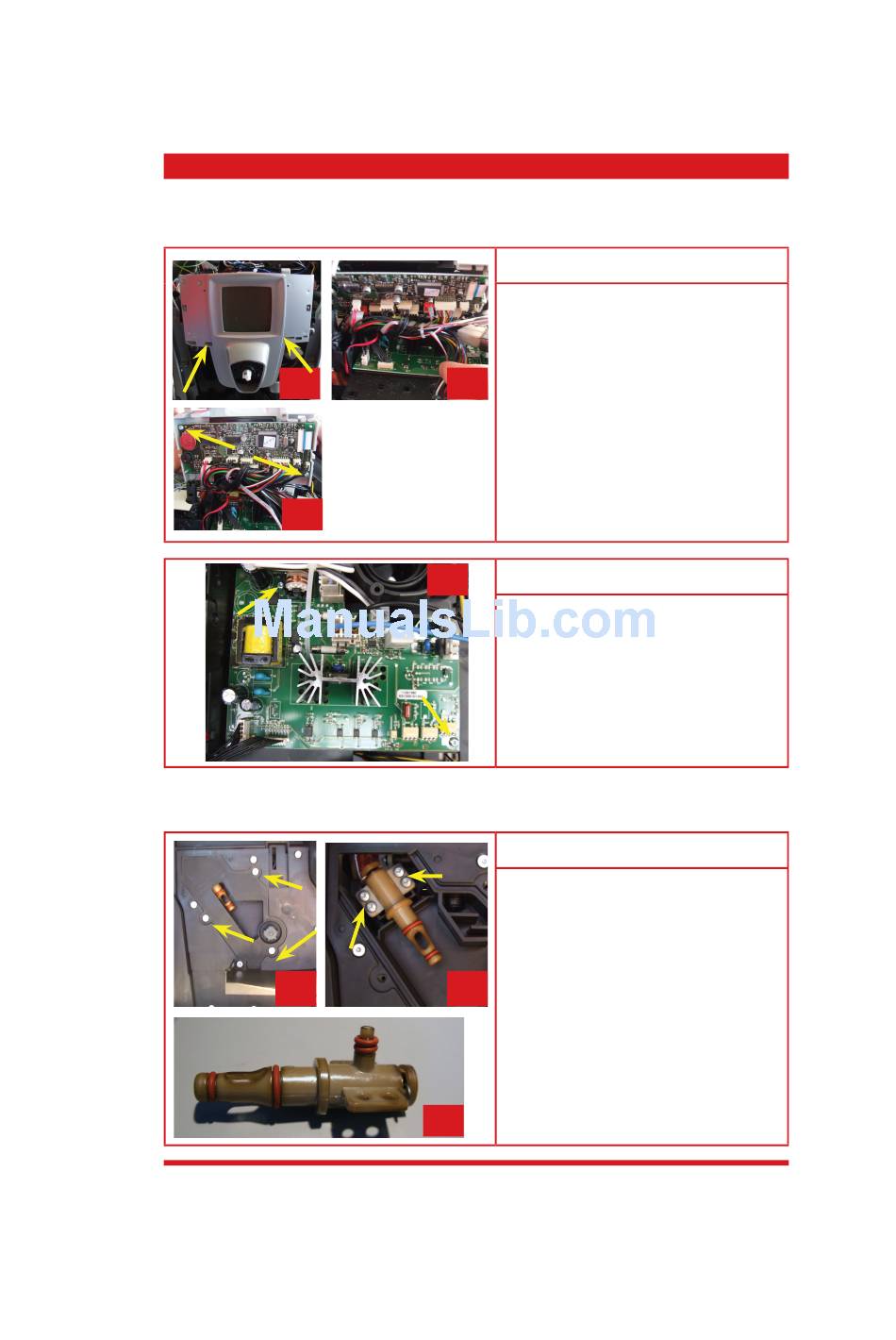

To disassemble the control board
Fig. 1
• Remove the screws shown.
• Fold the board to the back.
Fig. 2
2
• Loosen the plug contact.
Fig. 3
• Remove the screws shown.
To disassemble the power board
1
Fig. 1
• Remove the black board's cover.
• Loosen the plug contact.
• Remove the screws shown.
To disassemble the boiler's pin
Fig. 1
• Remove the screws shown.
• Remove the water channel cover.
Fig. 2
• Remove the screws (4 off) shown.
2
Fig. 3
• During assembly, both screws have
to be tightened alternately at equal
rates to prevent the O-rings from being
squeezed.
3
07 DISASSEMBLY
Page 3 / 13
