1.3 Printer Components

1.3.1 The front side of the printer

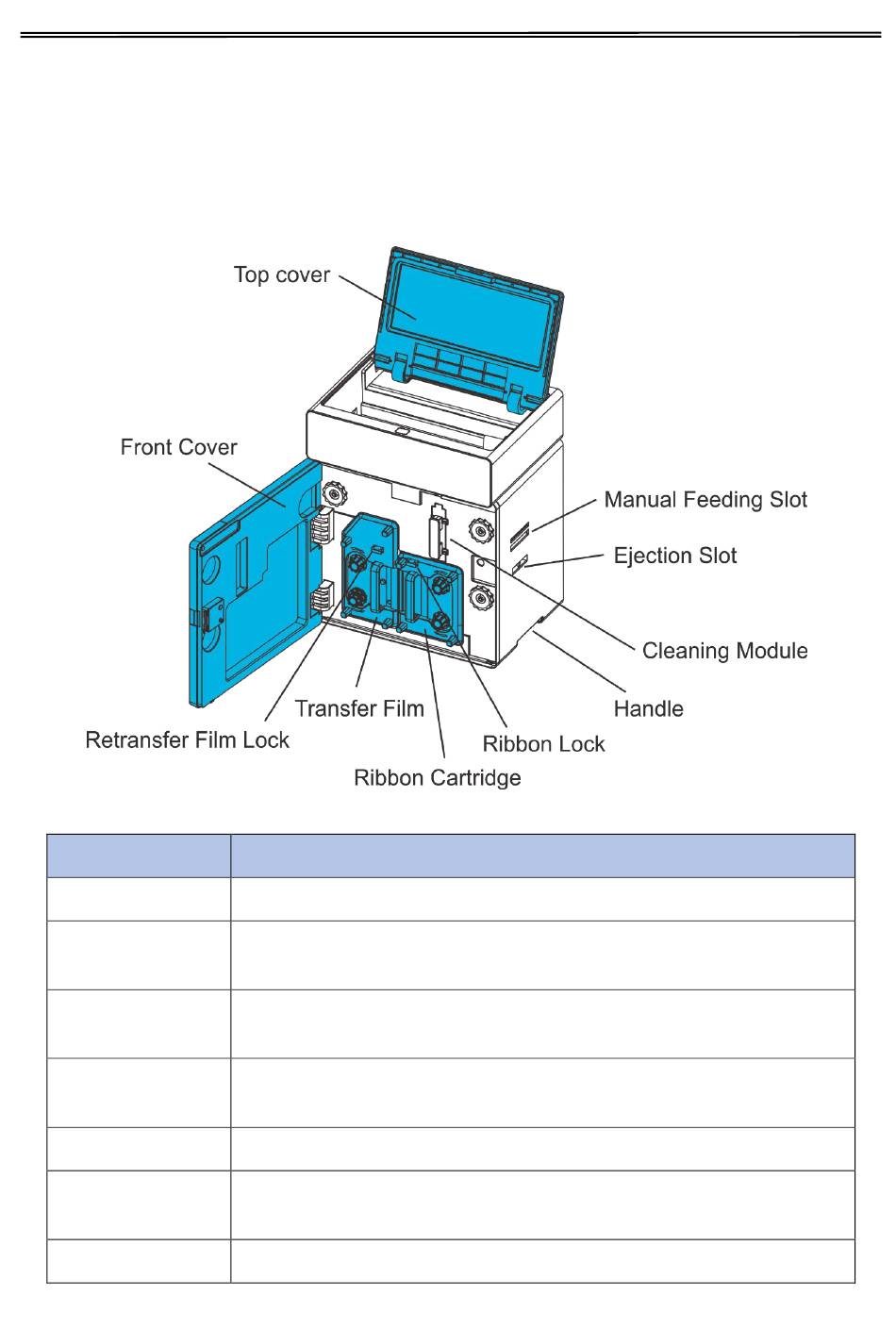

Printer components and their functions are shown as below:
Component Name
Top cover
Front cover
Retransfer film lock
Retransfer film
cartridge
Ribbon cartridge
Ribbon cartridge
lock
Handle
Function
Open when loading cards or cleaning the feeding roller.
Open when changing print ribbons and retransfer film, and when
cleaning the Cleaning Roller.
When loading retransfer film, move the lock switch away from
retransfer film cartridge to release.
Retransfer film. This is where you install retransfer (INTM) film
Ribbon cartridge. This is where you install color print ribbon.
When loading ribbon, move the lock switch away from print ribbon
cartridge to release.
Move the printer.
7
User Guide V1.0
