1.3 Printer Components

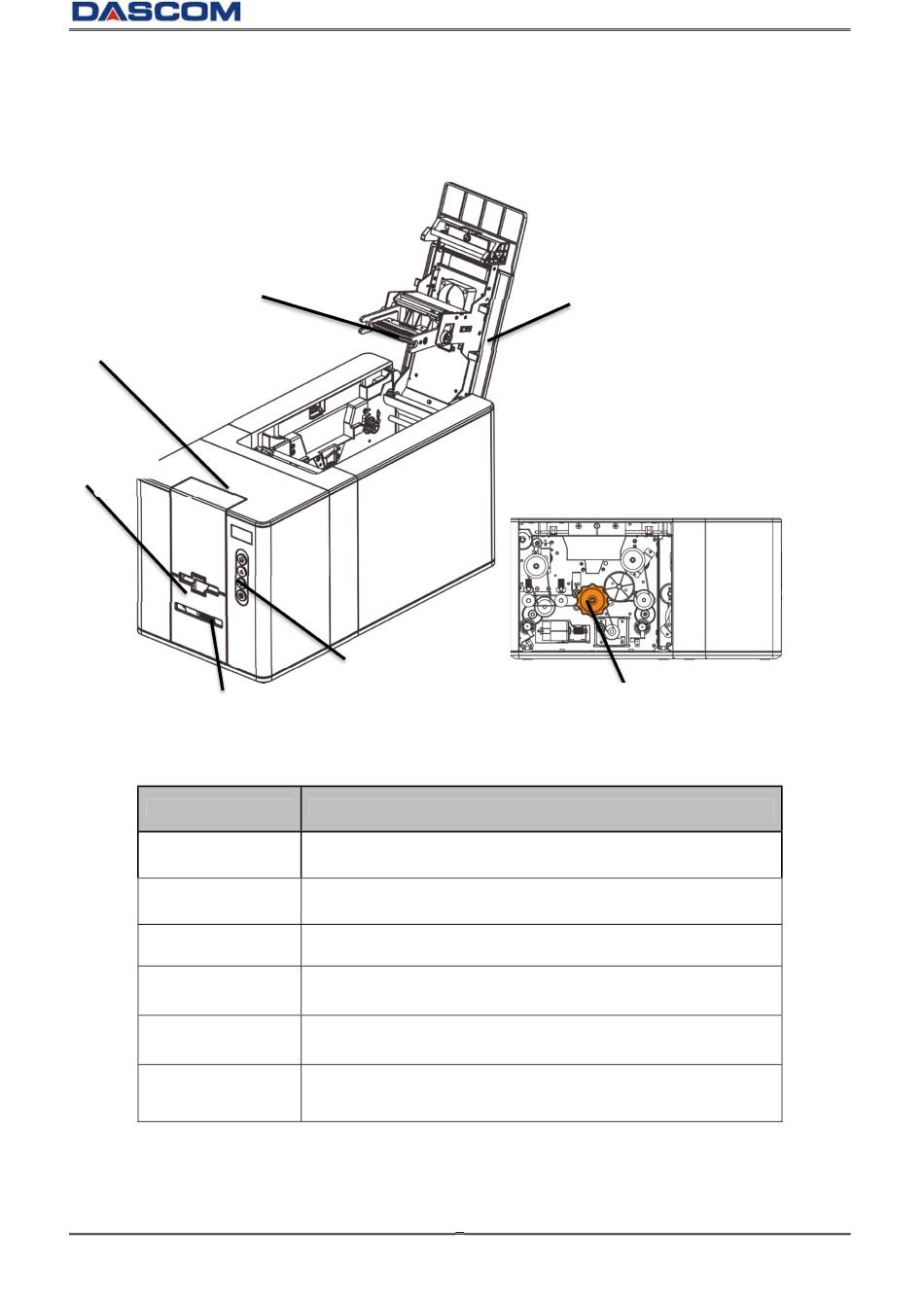

1.3.1 Component and function

Thermal print head
Front cover
Lower cover
Card eject slot
Part name
Top cover
Front cover
Thermal print head Core component of the printer.
Control panel
Card eject slot
Knob
DC-2300
Control panel
Function
Protects the print head and the internal components, and
reduce noise. Open to replace the ribbon.
Opens to load cards. Max. 100 pieces of 0.76mm thickness
cards can be placed.
Includes the keys, the OLED Panel, and a variety of simple
operations can be performed on the printer functions.
Ejects printed cards.
If the jammed card can not be ejected, power off the printer
and turn the knob.
