2.1.2 Setting the Card Thickness



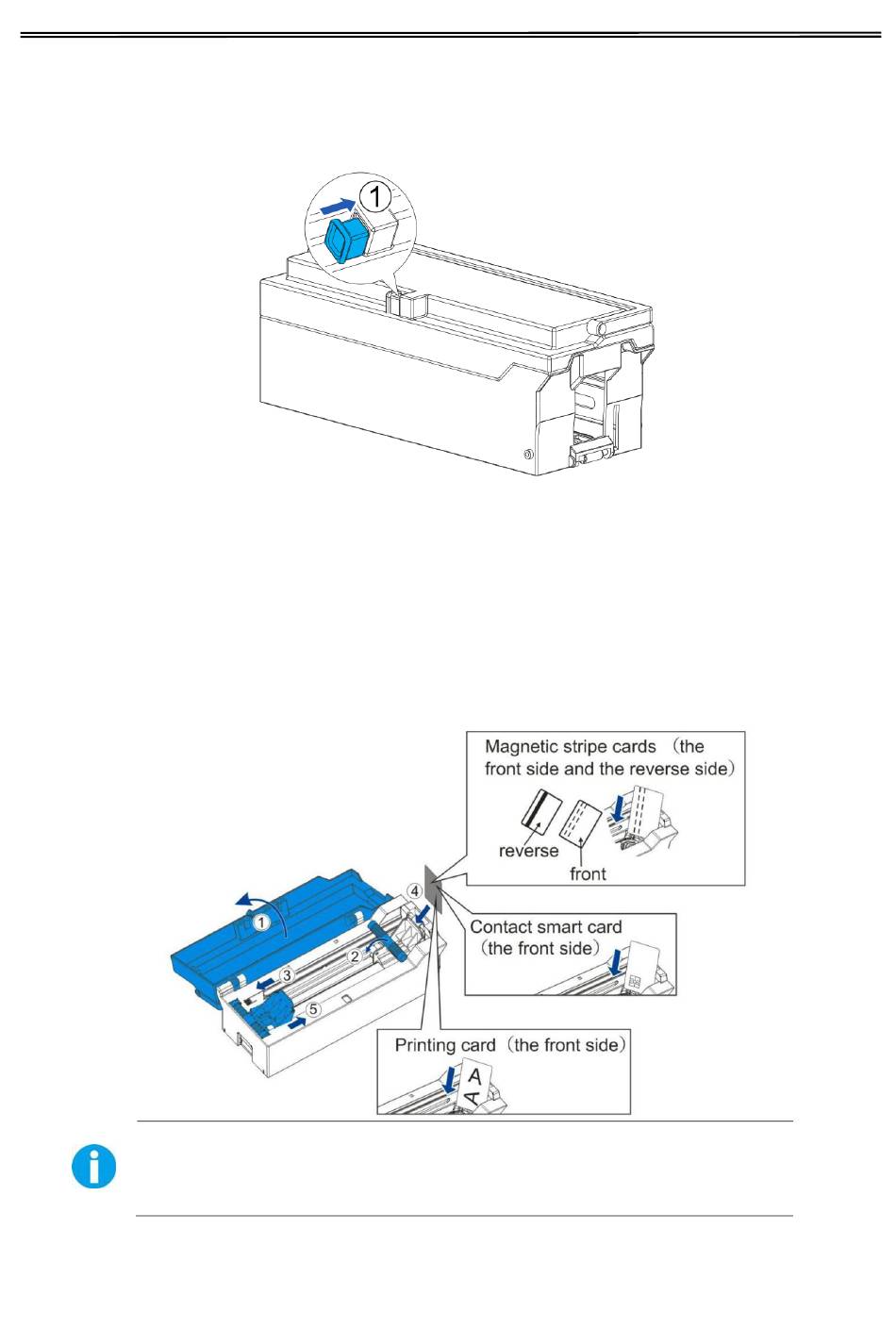

Install the card to the Card cassette.
(1) Push the slot button to the right, the slot cover will be released.
(2)
○
Open the slot cover backwards;
1
○
Move the card block lever to the left;
2
○
Press the lever handle with your hand and move the card to the left;
3
○
At the same time insert the card into the slot. Release the lever handle, the block return to fix the
4
card.
○
Move the lever to the right, close the cassette.
5
Please put the card carefully. Ensure that magnetic stripe CARDS and
contact smart CARDS are properly placed in the card feeder. If the card is
inserted in the wrong direction, the code selection may not work properly.
