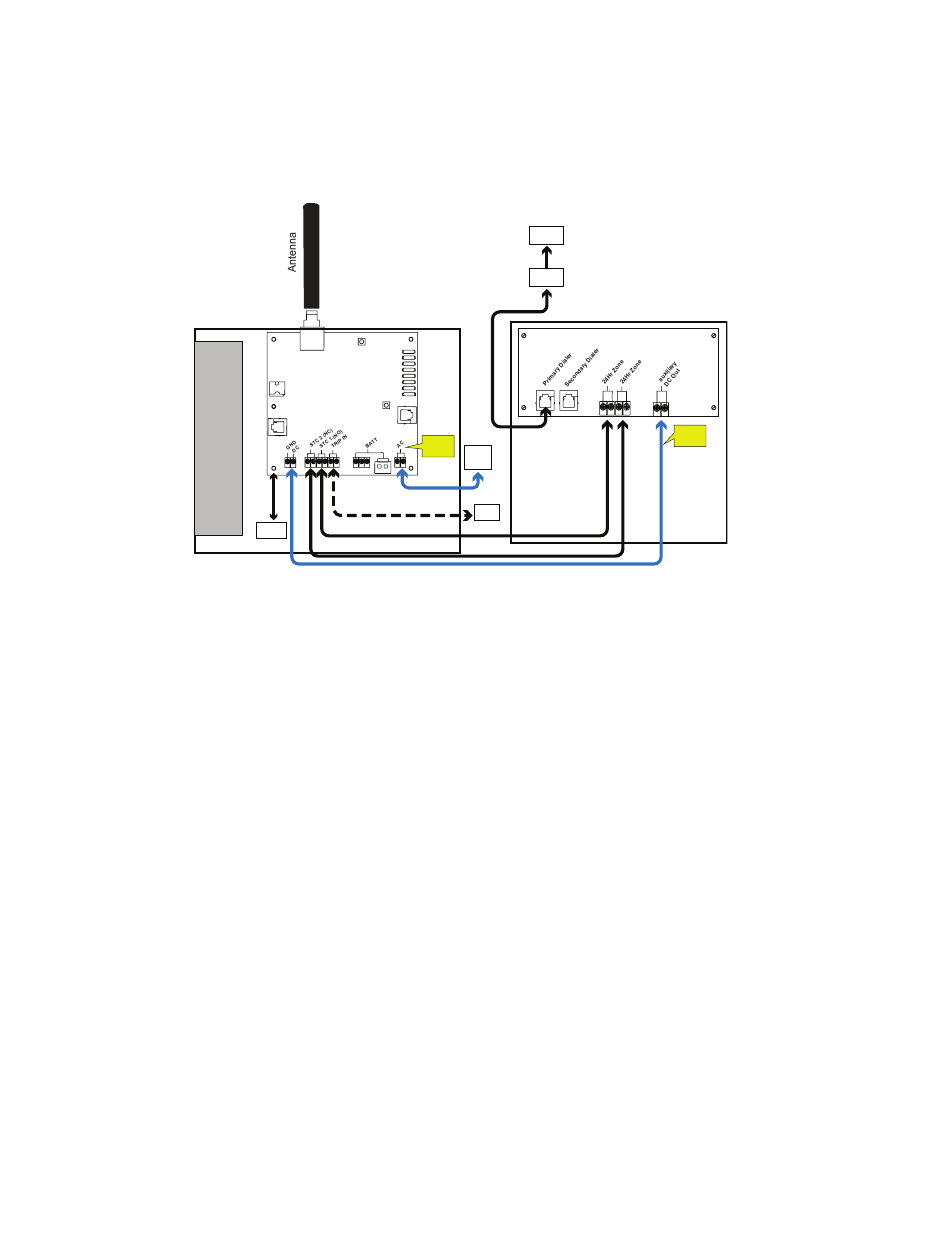

DACT Panel Cellular-Only Wiring (When Second Communication Path to FACP is Used)
This configuration is used when IntelliCom is working in a system that also involves a Telco connection or another
communication path not connected through IntelliCom. In this case, both IntelliCom and the alternate connections are
being monitored by the Alarm Panel. It is the alarm panel that determines which communication connection to use for
signal delivery.
BATTERY
EARTH
GROUND
INTELLICOM • 5403797 • REV A • 8/23
Note1: Use either AC Power
(from adapter) with battery or
use DC Power (from panel)
D1
D2
D3
D4
D5
D6
D7
D8
NOTE 1
AC
Plug-In
Adapter
Trip
Input
A-28
INCOMING
TELCO
RJ-31X
FACP
NOTE 1
:
