Appendix A: Connection Guide

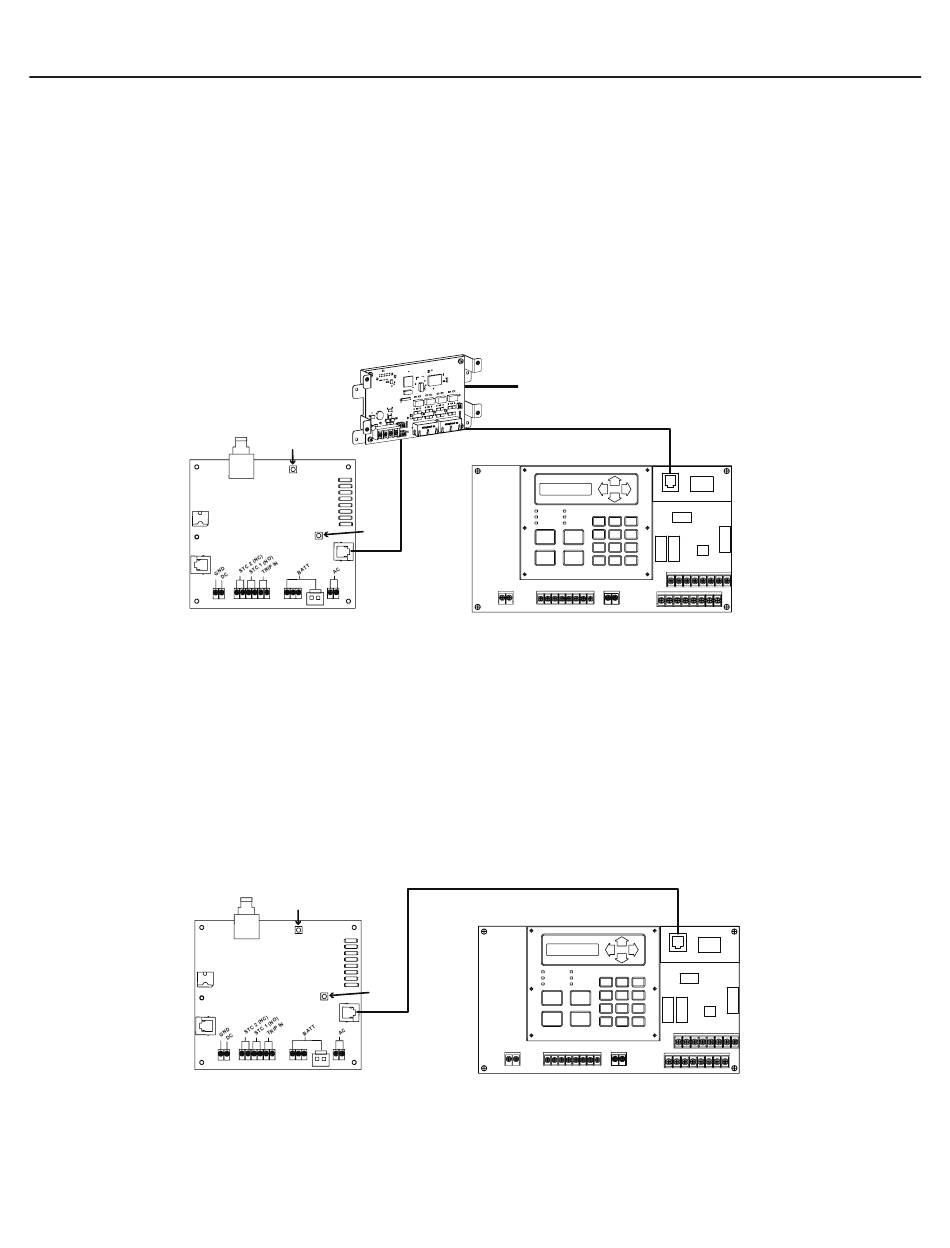

Wiring Diagrams
The following wiring diagrams show the configurations in which IntelliCom can be used.
Potter Panel Dual Path Wiring Applicable to Cellular or LAN Primary:
Physical installation is the same for either Dual Path mode of operation. The configuration chosen during registration is
what determines which is the primary and which is the secondary path. In this configuration, the LAN connection will be
monitored by IntelliCom. UL requires a UL listed Ethernet switch (e.g., NCE-1000) when connecting to a LAN. Connect
the Ethernet within 20 ft and routed in conduit to network equipment in the same room (supervised, power limited)
Potter Panel Cellular-Only Wiring (When Communicator is Only Path Used):
This configuration is used when IntelliCom is set to cellular only mode and is working in a system that does not require
a secondary path. The alarm panel is connected directly to IntelliCom using an Ethernet cable, and there is no other form
of communication that is active. For commercial fire installations, a specific level of link supervision may be required
(frequencies of 180 seconds, 5 minutes, or 60 minutes).
INTELLICOM • 5403797 • REV A • 8/23
NCE-1000 or similar
RESET
BUTTON P-COMM ETHERNET PORT
D1
D2
D3
D4
D5
D6
D7
RSSI
D8
BUTTON
RJ-45
ETHERNET
JACK
for LAN
CONNECTION
CELLULAR W/ LAN CONNECTIONS
SEE POWER OPTIONS
RESET
P-COMM ETHERNET PORT
BUTTON
D1
D2
D3
D4
D5
D6
D7
RSSI
D8
BUTTON
CELLULAR ONLY CONNECTIONS
SEE POWER OPTIONS
A-26
TO LAN
POWER ON ALARM
EARTH FAULT SUPERVISORY
1 2 3
SILENCED TROUBLE
4 5 6
SIGNAL
RESET
SILENCE
7 8 9
FIRE
ACK
0
DRILL
ENTER ESC
POWER ON ALARM
EARTH FAULT SUPERVISORY
1 2 3
SILENCED TROUBLE
4 5 6
SIGNAL
RESET
SILENCE
7 8 9
FIRE
ACK
0
DRILL
ENTER ESC
