Section 11: Getting Ready

Pre-Installation Checklist

Before attempting to connect IntelliCom to the alarm panel, make sure you have all the proper parts prior to going to the job
site.
The following items are shipped with each IntelliCom Advanced Gateway:
• IntelliCom Advanced Gateway
• Cellular Antenna
• Antenna Cable and Mounting Bracket
• AC Power Adapter
• Battery Connection Cable
• Pluggable screw terminal blocks (2-, 2-, 3-, & 6- position)
• Enclosure Key – Note: Key on IntelliCom is different than the one used on Potter fire panels
The following items may be needed and are not included with IntelliCom:
• CAT-5 or higher cable for connection between Potter panel and IntelliCom
• Screws for mounting IntelliCom enclosure and antenna to the wall
• Solid or stranded electrical wire for connecting the STC relay outputs, trip input, or tamper to the alarm panel. The
terminal strips can accommodate solid or stranded wire from 16 to 22 gauge in size.
• Telephone cable for panel DACT to communicator RJ-45 phone jack connection
• CAT-5 or higher cable for premises LAN to communicator RJ-45 Ethernet jack connection
• Conduit and connectors for protecting wiring
• Lead acid backup battery (minimum 4Ah) when installation will use the AC power adapter
Finally, certain installation and testing tools may be needed or helpful:
• Screwdrivers for mounting and making connections
• Standard telephone or lineman's butt-set for verifying communication between the panel and IntelliCom
• Device that you can use to verify a working LAN port
NOTE: IntelliCom registration must be completed in advance to avoid installation delays

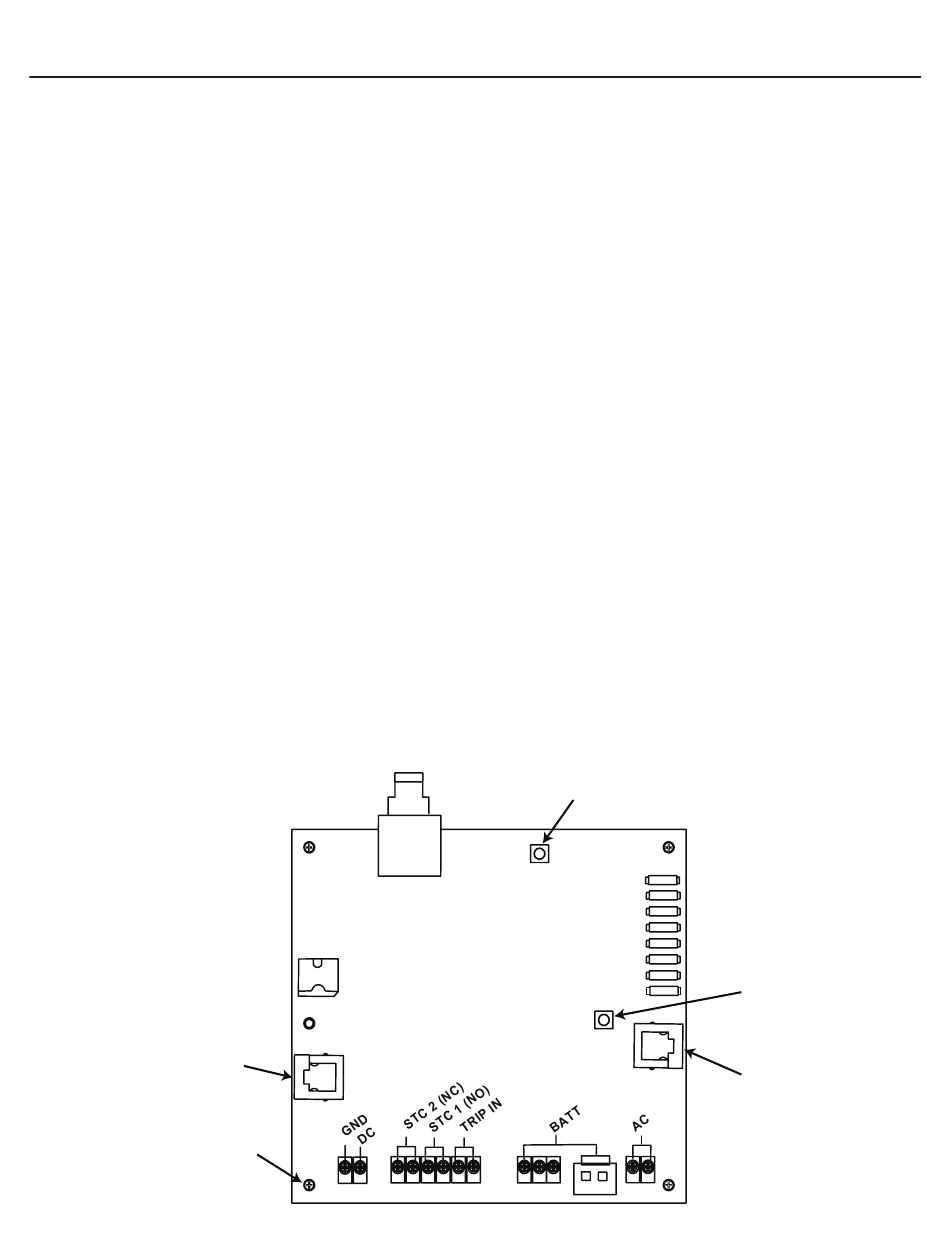

PCB Layout

PCB Layout
RJ-45
DACT JACK
for PANEL
CONNECTION
EARTH
GROUND
INTELLICOM • 5403797 • REV A • 8/23
15
RESET
BUTTON
D1
D2
D3
D4
D5
D6
D7 RSSI
D8
BUTTON
RJ-45
ETHERNET
JACK for
PANEL OR LAN
CONNECTION
