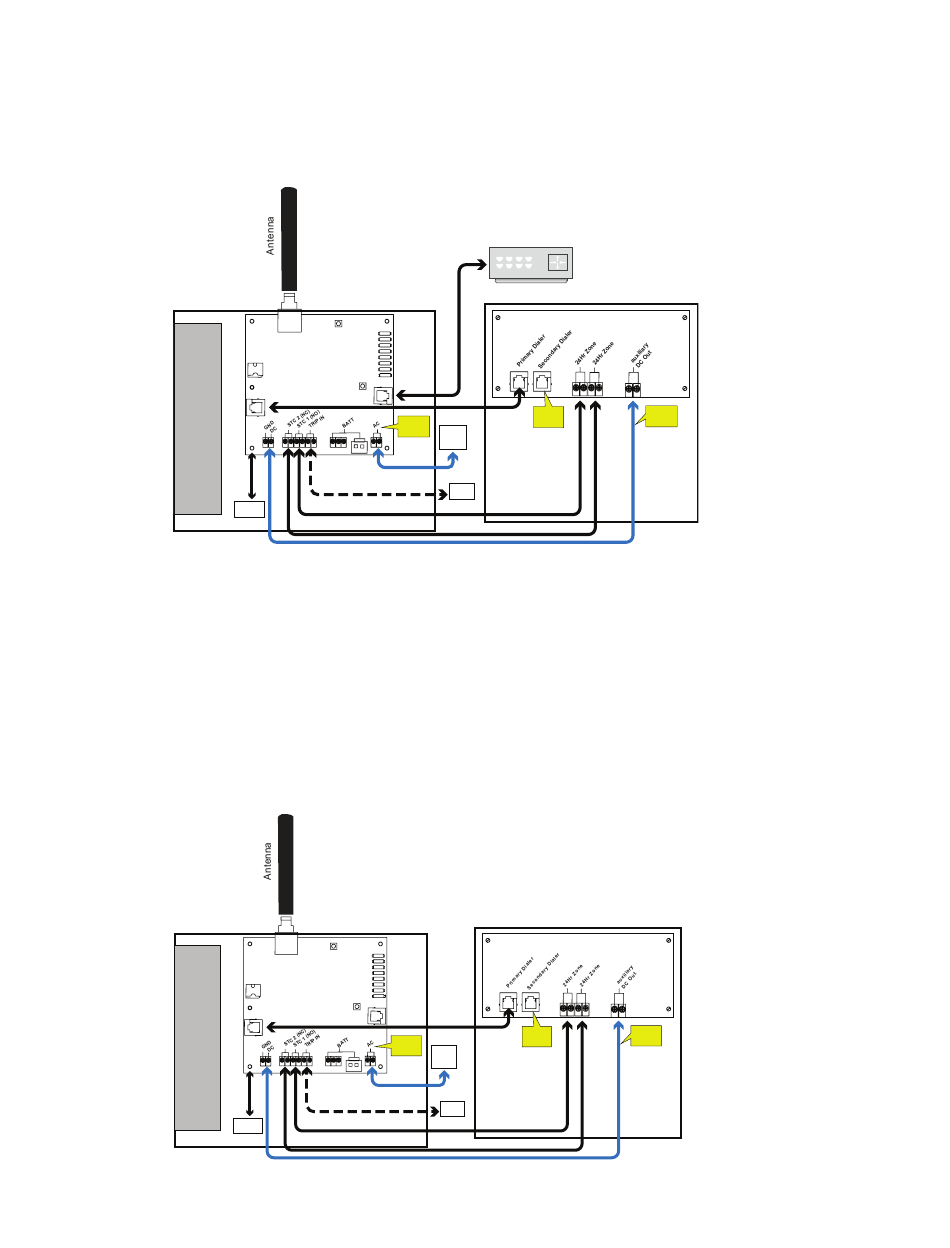

DACT Panel Dual Path Wiring Applicable to Cellular or LAN Primary
Physical installation is the same for either Dual Path mode of operation. The configuration chosen
during registration is what determines which is the primary and which is the secondary path. In this
configuration, the LAN connection will be monitored by IntelliCom.
BATTERY
EARTH
GROUND
DUAL PATH OR LAN PRIMARY CONNECTIONS
DACT Panel Cellular-Only Wiring (When Communicator is Only Path Used)
This configuration is used when IntelliCom is set to cellular only mode and is working in a system that does not involve
a Telco connection or a secondary path. In this case, the alarm panel is connected directly to IntelliCom, and there is no
other form of communication that is active. For commercial fire installations, a specific level of link supervision may be
required (frequencies of 180 seconds, 5 minutes, or 60 minutes).
In this configuration, the LAN connection is not being used or monitored by IntelliCom.
BATTERY
EARTH
GROUND
