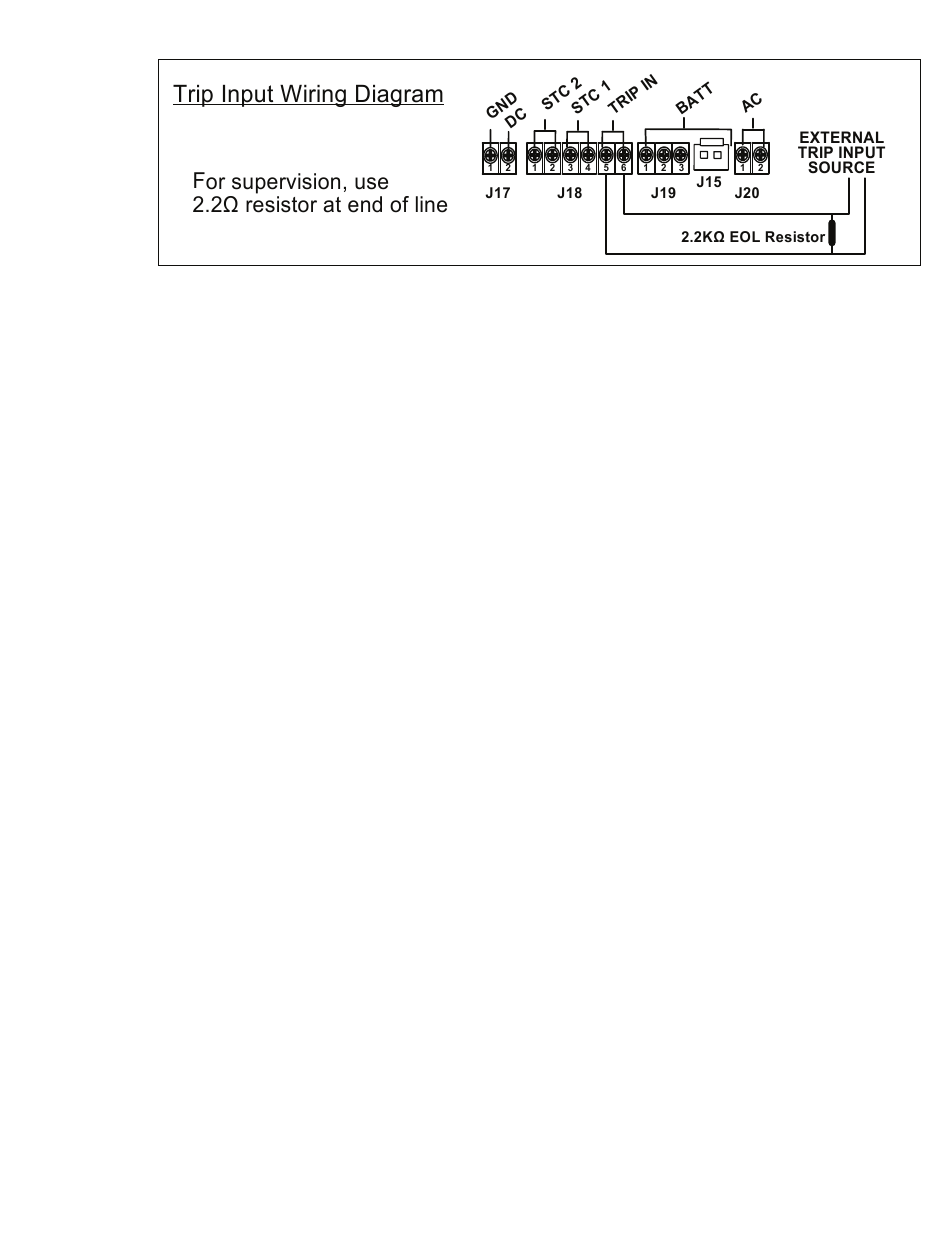

Be sure to use a UL-approved 2200-ohm resistor if the trip input circuit will be supervised (e.g., Bosch P110BL, Bosch
EOL-22K, Elk ELR 22). The trip input circuit is not supervised for grounds.
UL Compliance Note: The trip input feature shall only be used for supplementary signaling. Initiating zones shall not be
connected to the trip input.
Connect Tamper Switch (optional in fire systems)
IntelliCom supports an optional tamper switch. Note that the tamper switch will not connect to the circuit board of
IntelliCom.
Optional Use or As Required by AHJ
A tamper switch can be used to report unauthorized alarm system access by connecting it to a zone on the panel and
designating the zone as Tamper Protection. Some local enforcing authorities may require the tamper feature be used.
INTELLICOM • 5403797 • REV A • 8/23
24
