Potter intellicom Advanced Gateway Installation, Operation, & Programming Manual page 13

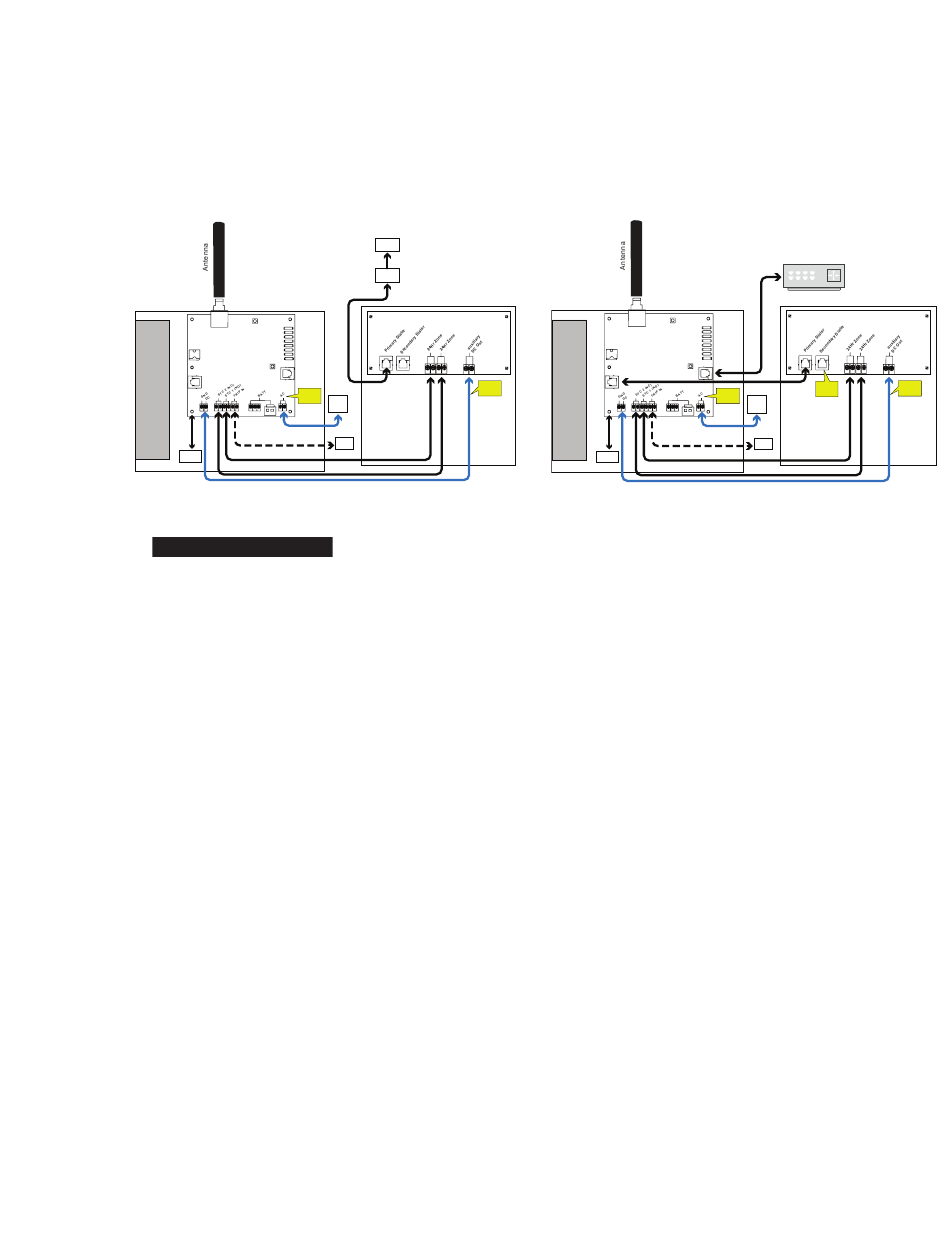

DACT Connection (For use with non-Potter panels)
Connect alarm panel to IntelliCom by connecting a cable from the modular telephone jack (DACT) of the alarm
panel into the black RJ-45 jack of IntelliCom. If using a LAN connection, connect a cable from a router or other
premises LAN port to the silver RJ-45 jack of IntelliCom; the LEDs on the jack should illuminate or flash to indicate
the LAN port is active. Consult PCB Layout section above for jack guidance. All wires connecting with IntelliCom
should be in conduit or otherwise protected, but no segregation of circuits is necessary. IntelliCom is now ready for
activation.
Note1: Use either AC Power
(from adapter) with battery or
use DC Power (from panel)
D1
BATTERY D2
D3
D4
D5
D6
D7
D8
EARTH
GROUND
CELLULAR ONLY CONNECTIONS
UL Compliance NOTE:
be mechanically protected and no greater than 20 feet in distance.
Create an event on the alarm panel and confirm that IntelliCom enables the alarm panel to transmit alarm events.
IntelliCom will transmit the initial activation signal over the cellular network and confirm activation with the PCC
(if registration was completed prior to installation).
During processing of the first alarm signal over the cellular network, IntelliCom will transmit to the PCC all
programming parameters along with the information (Central Station number and account code) from the alarm
panel. Once this information is received, the PCC transmits a message back indicating that the unit is activated.
When this message is received the LEDs on the communicator will begin operating in normal mode and Activation
LED 1 will remain on. The LAN connection between IntelliCom and the PCC will automatically be validated after
IntelliCom is activated and configured (if it is in dual path mode). When that pathway has been validated, LAN LED
6 will remain on.
NOTE: The initial alarm is to confirm registration and activate IntelliCom. This alarm will NOT be transmitted to the Central
Station.
INTELLICOM • 5403797 • REV A • 8/23
INCOMING
TELCO
RJ-31X
FACP
NOTE 1
AC
Plug-In
Adapter
Trip
Input
For Fire System installations, all connections from the alarm panel and IntelliCom must
8
Note1: Use either AC Power
(from adapter) with battery or
use DC Power (from panel)
BATTERY
NOTE 1
EARTH
GROUND
DUAL PATH OR LAN PRIMARY CONNECTIONS DUAL PATH OR LAN PRIMARY CONNECTIONS
ROUTER, SWITCH,
or OTHER LAN PORT
Note 2: Secondary dialer
on FACP must be disabled
or connections spiced. See
Appendix 3 for instructions
FACP
D1
D2
D3
D4
D5
D6
D7
D8
NOTE 2
NOTE 1
AC
Plug-In
Adapter
Trip
Input
NOTE 1
