Potter intellicom Advanced Gateway Installation, Operation, & Programming Manual page 12

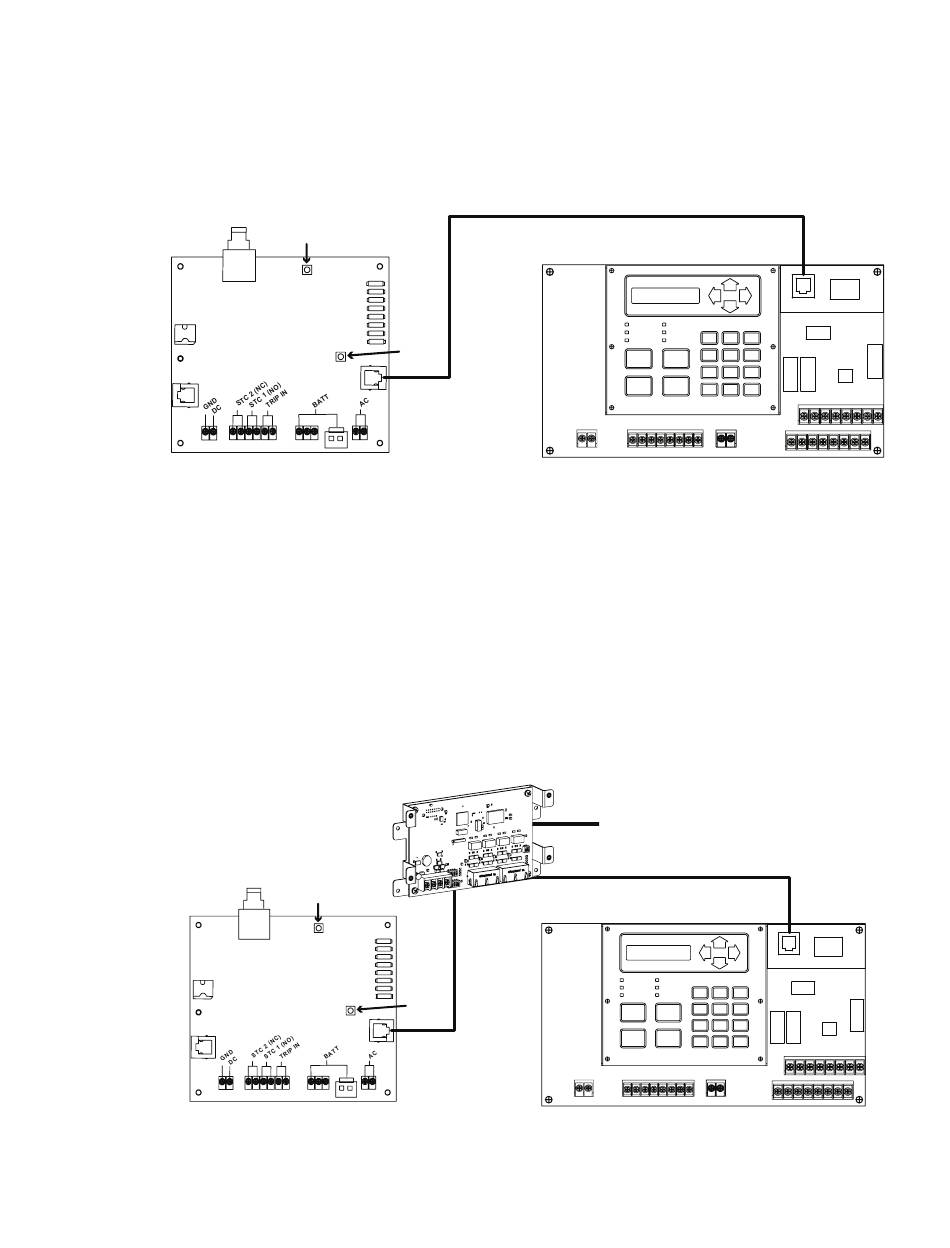

Option 1: Sole Path Cellular Direct Connect To Potter Panel
Connect Potter alarm panel to IntelliCom by connecting an Ethernet cable from the silver RJ-45 Ethernet connector
on IntelliCom to the P-Comm Ethernet port on the Potter fire alarm panel. All wires connecting with IntelliCom
should be in conduit or otherwise protected, but no segregation of circuits is necessary. IntelliCom is now ready for
activation.
Option 2: Sole Path Cellular and/or LAN Connection To Potter Panel
Connect Potter alarm panel, IntelliCom, and LAN (if required) to a UL listed Ethernet switch. The NCE-1000 can be
used as the UL listed switch. Other third party UL 864 listed switches are also acceptable. All wires connecting with
IntelliCom should be in conduit or otherwise protected, but no segregation of circuits is necessary. IntelliCom is now
ready for activation.
INTELLICOM • 5403797 • REV A • 8/23
RESET
P-COMM ETHERNET PORT
BUTTON
D1
D2
D3
D4
D5
D6
D7
RSSI
D8
BUTTON
CELLULAR ONLY CONNECTIONS
SEE POWER OPTIONS
NCE-1000 or similar
RESET
BUTTON
D1
D2
D3
D4
D5
D6
D7
RSSI
D8
BUTTON
RJ-45
ETHERNET
JACK
for LAN
CONNECTION
CELLULAR W/ LAN CONNECTIONS
SEE POWER OPTIONS
POWER ON ALARM
EARTH FAULT SUPERVISORY
SILENCED TROUBLE
SIGNAL
RESET
SILENCE
ACK
DRILL
TO LAN
P-COMM ETHERNET PORT
POWER ON ALARM
EARTH FAULT SUPERVISORY
SILENCED TROUBLE
SIGNAL
RESET
SILENCE
FIRE
ACK
DRILL
7
1 2 3
4 5 6
7 8 9
FIRE
0
ENTER ESC
1 2 3
4 5 6
7 8 9
0
ENTER ESC
