Figure 5-7 Direct Host Connection Without Failover - Silicon Graphics InfiniteStorage S330 RAID User Manual

Direct Connection without Failover
007-4798-001

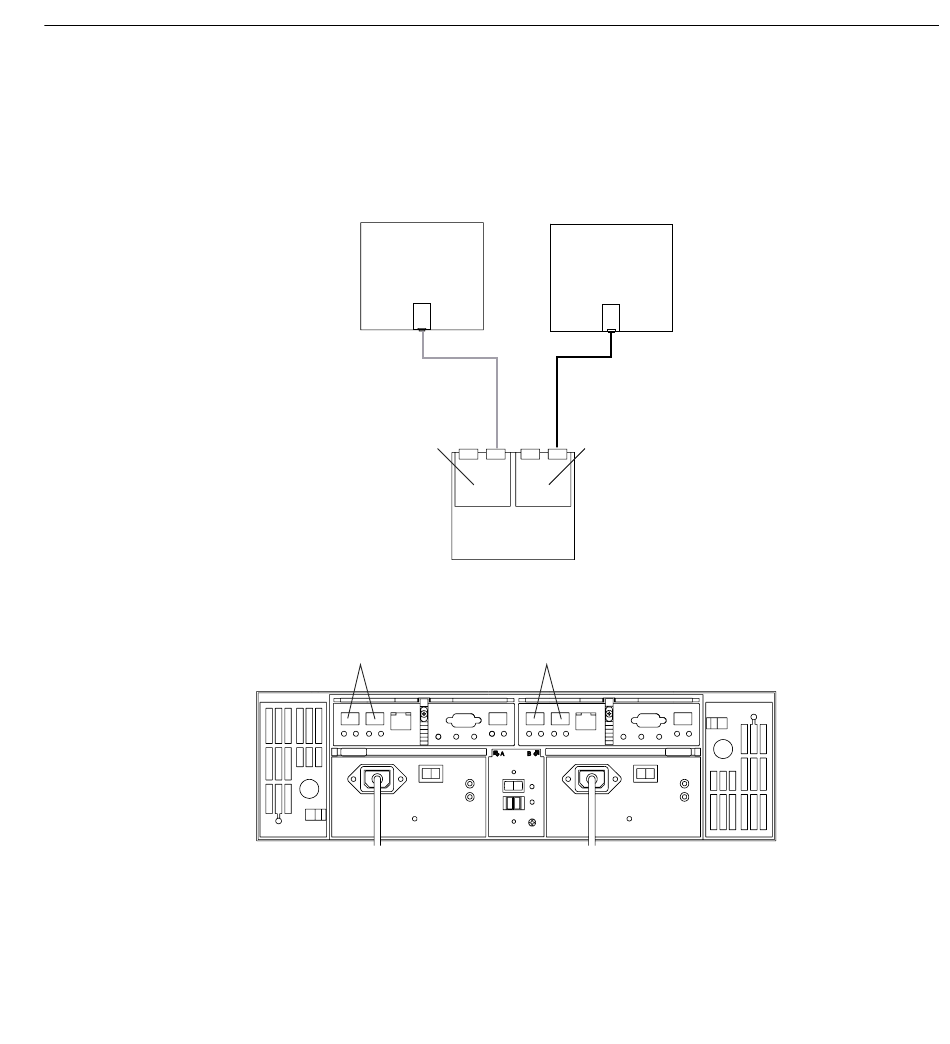

Figure 5-7 shows the possible configurations for direct connection systems without failover.
Direct connection to dual
hosts with single HBAs
Host 1
Controller B
Controller A
Host connectors
(SFP transceivers)
Figure 5-7 Direct Host Connection without Failover
Host 2
Controller A
Controller
enclosure
Controller B
Host connectors
(SFP transceivers)
