007-4798-001
ESM A
Drive channel in

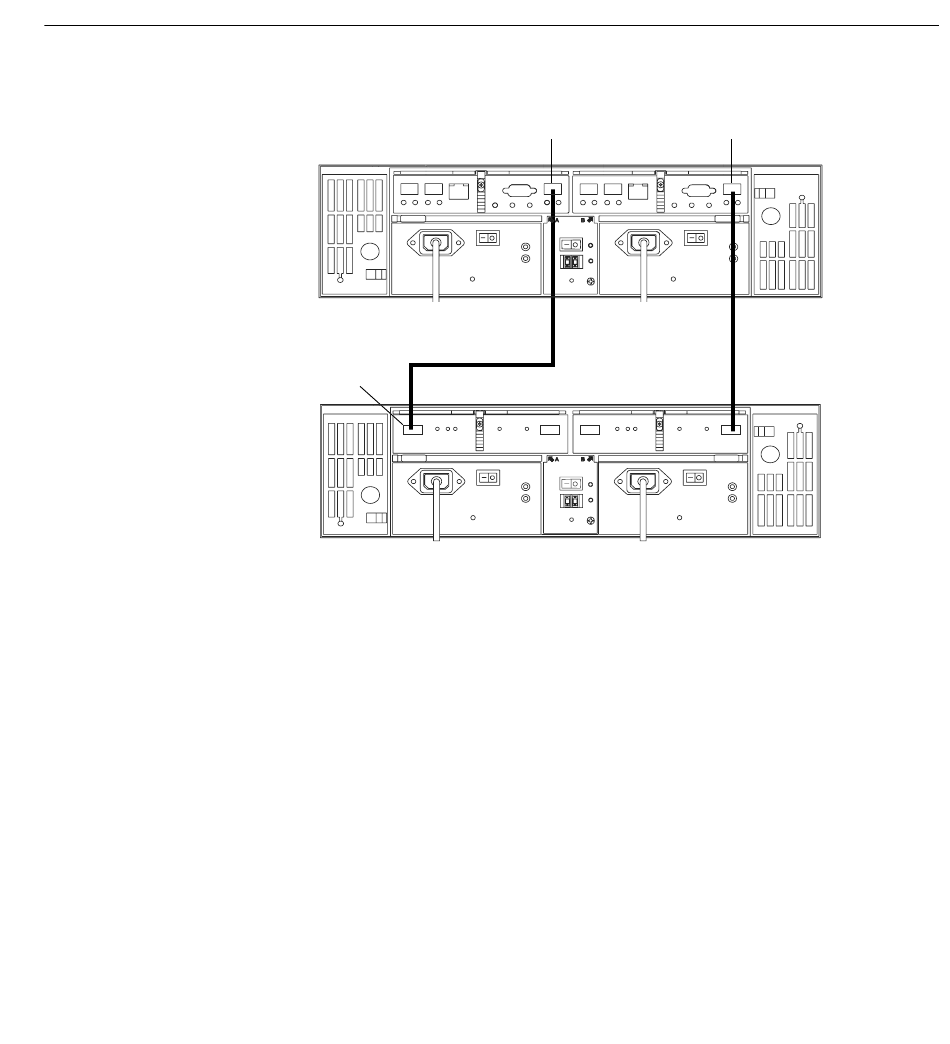

Figure 5-2
System Drive Loop Cabling for Two Controllers and Two Enclosures
3. In a single-controller configuration additional drive enclosures can be connected by
attaching a cable between the ESM loop A OUT and ESM FCAL loop IN of the additional
drive enclosure. See Figure 5-3 for an example.
Controller A
Drive channel 1
1Gb 2Gb
0 0
Conflict
X10 X1
Tray Number
Drive loop A
1Gb 2Gb
0 1
Conflict
X10 X1
Tray Number
Connecting the Drive Loop Cables
Controller B
Drive channel 2
Drive loop B
ESM B
Drive loop out
Controller
enclosure ID 00
Disk drive
enclosure ID 01
71
