5: Cabling

Examples of Fabric/Switch Host Connection Cabling

78
Figure 5-8 shows an example of connecting the SGI S330 to hosts using a Fibre Channel switch.
For more information, see the SGI Storage Area Network Installation Instructions (108-0252-00x)
shipped with the Fibre Channel switch.
Figure 5-8 shows a simple switch configuration.
Host system
with two host
bus adapters
Switch
Controller A
host connectors
(SFP transceivers)

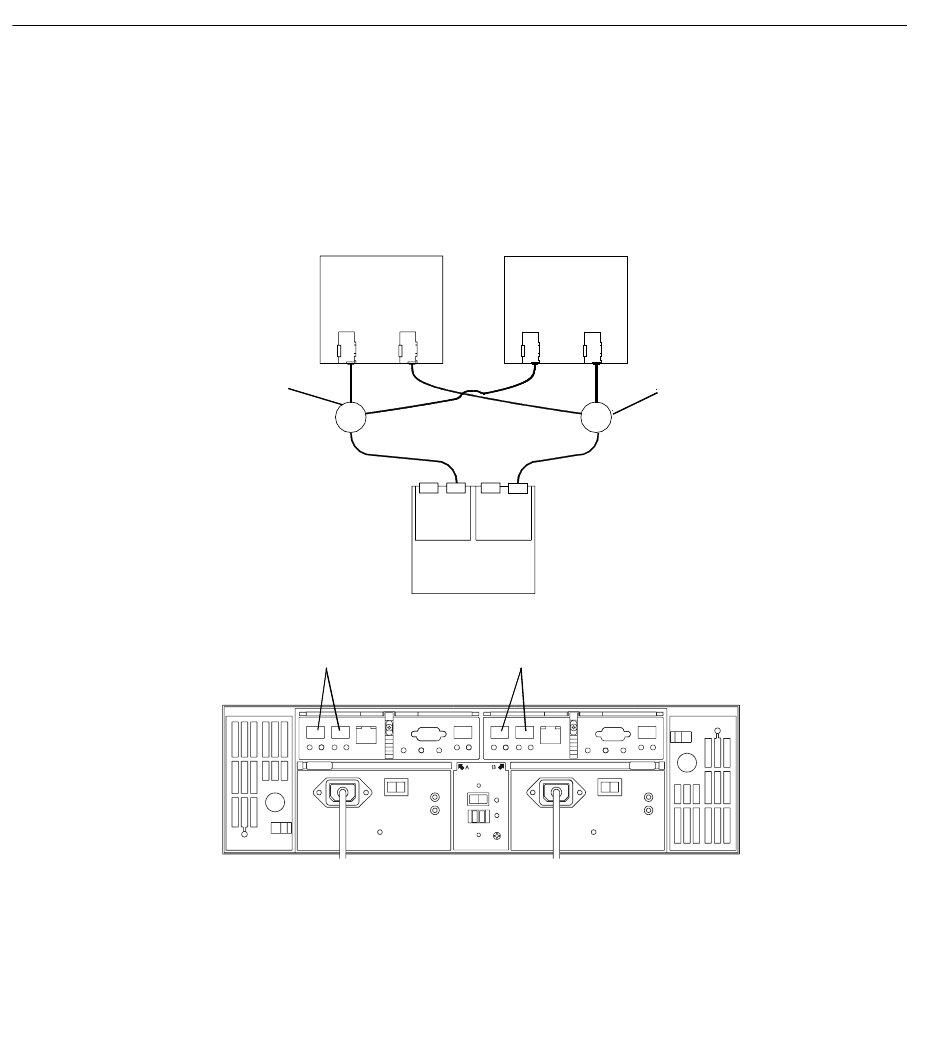

Figure 5-8 Connecting to Hosts via a Fibre Channel Switch
Host system
with two host
bus adapters
Note: Other configurations
are possible
Controller
enclosure
Controller B
host connectors
(SFP transceivers)
Switch
007-4798-001
