Enclosure Specifications
Important: Allow a minimum of two feet of clearance in front of and behind the controller
enclosure for proper ventilation and servicing.
Rear
Front

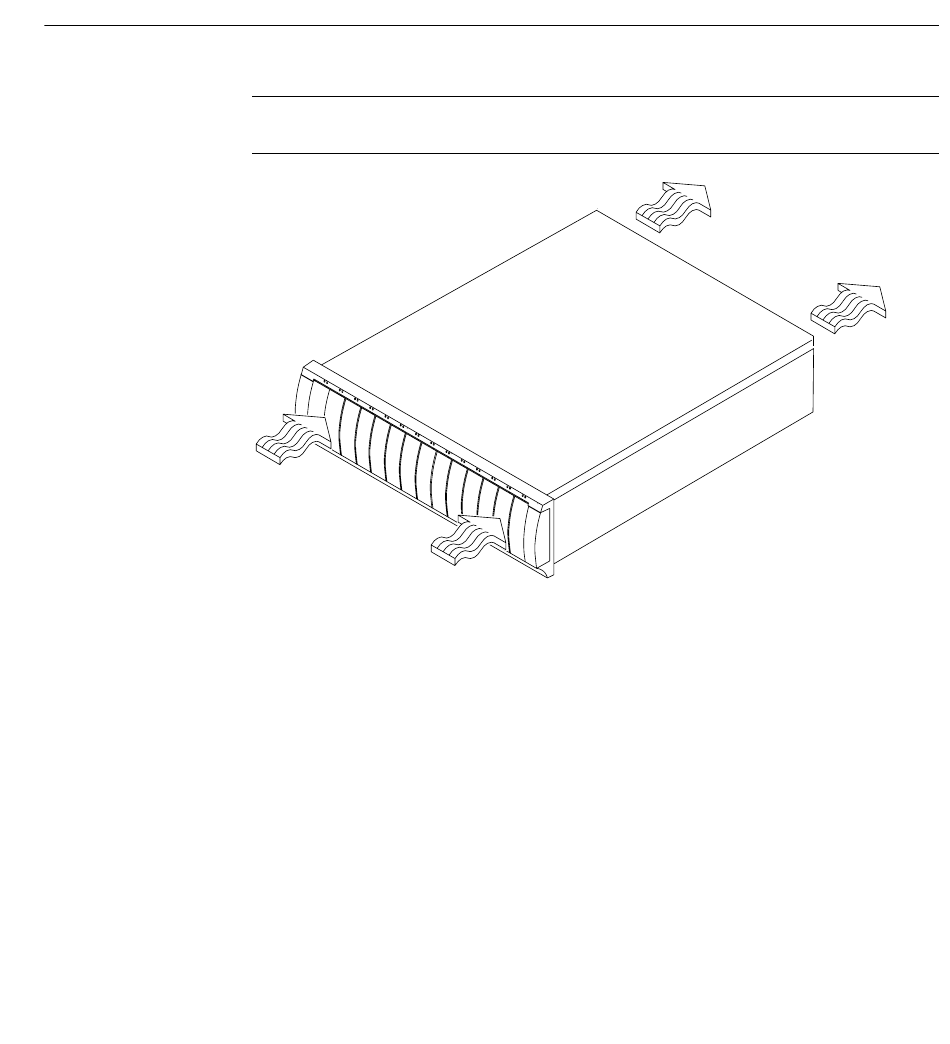

Figure A-8
Air Flow in the System Enclosure
007-4798-001
101
