The floor area at the installation site must provide the following:
• Enough stability to support the weight of the system and installed devices (see Table A-1).
• Sufficient space to install and service the rack and components (see Figure A-4).
229 cm
(90 in.)

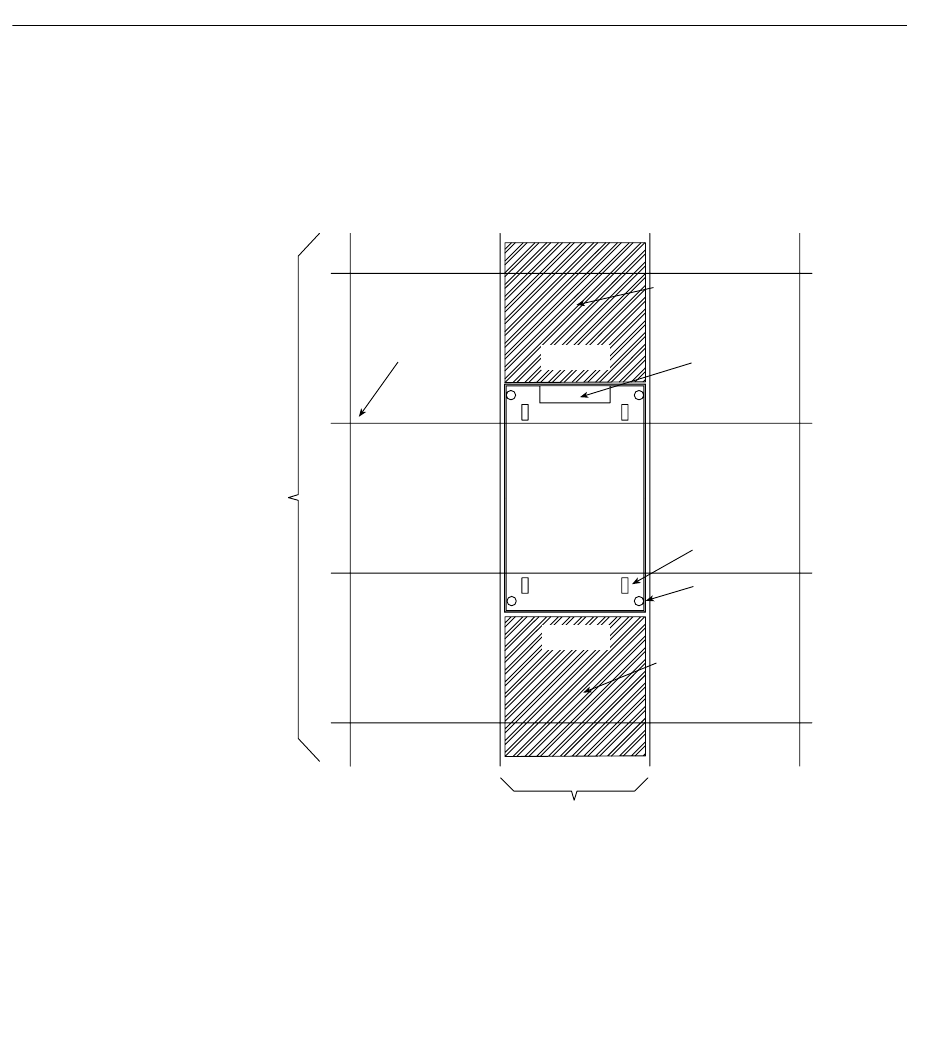

Figure A-4 System Area Requirements
Rear
Computer
floor grid
Front
56 cm (22 in.)
Required
service area
61 cm (24 in.)
Cable
access
Caster
Stability foot
Required
service area
76 cm (30 in.)
