4: Replacing Enclosure Components
!
48
1. Check TPSSM for instructions on drive failure recovery procedures. Follow any instructions
provided by the software before proceeding.
Caution: Removing the wrong drive can cause data loss. Ensure that you remove only the
failed drive. The drive fault indicator of the failed drive module illuminates amber. Removing
a drive module while its green activity indicator is blinking can cause data loss and may cause
the host controller to mark the drive as failed. If you remove an active drive accidentally, wait
at least 30 seconds and then reinstall it. See TPSSM for further recovery instructions.
2. Locate the failed drive module (its fault light should be on).
3. Wearing antistatic protection, lift (open) the lever of the failed drive module.
4. Pull out the drive module (see Figure 4-1).
Drive
Drive lever

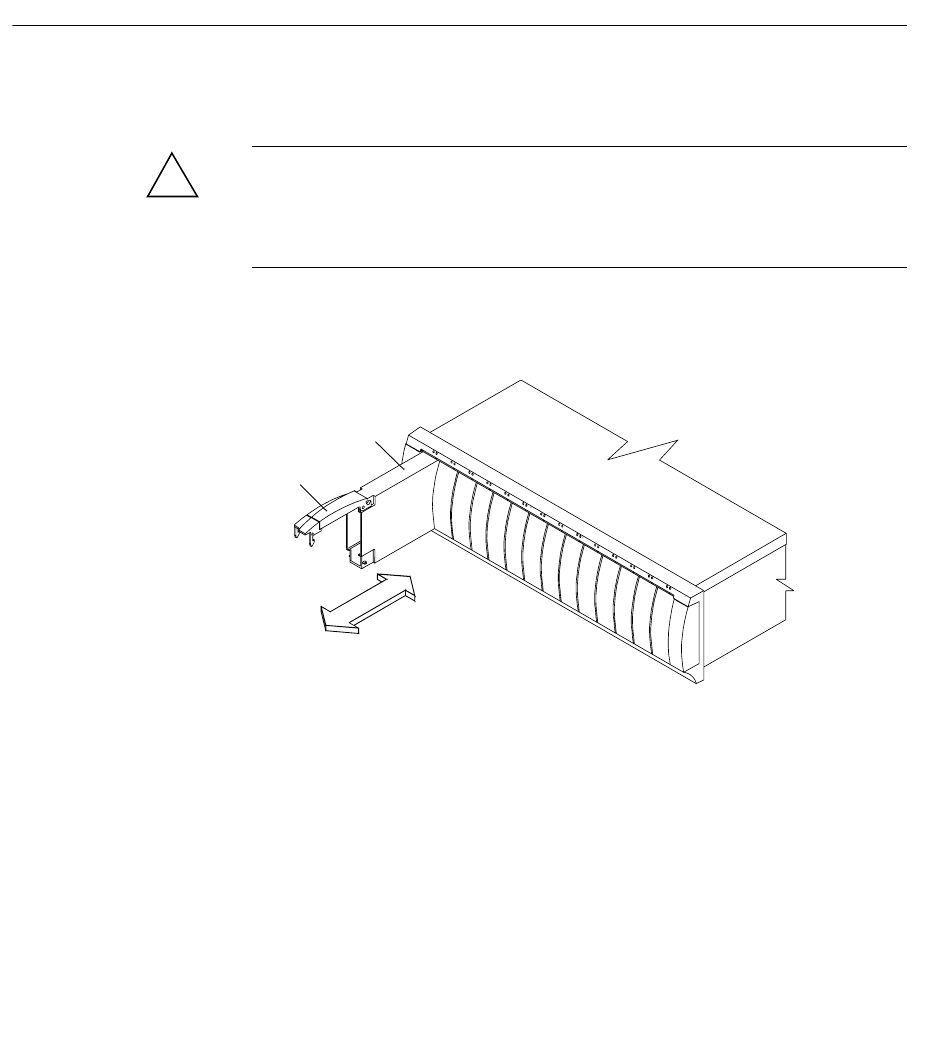

Figure 4-1
Removing and Installing a Drive Module
5. Wait at least 30 seconds for the drive to spin down. Then remove the failed drive module
from the enclosure.
6. Unpack the new drive module. Save all packing materials in case you need to return the
module.
7. Review all documentation shipped with the new drive module for updated replacement
procedures and other information. If necessary, modify the remaining steps to meet the
system requirements. Kits often contain the most current servicing information. If the kit
instructions conflict with those in this procedure, follow the kit instructions.
