2: Storage Enclosures

Fans

Pull knob
22
The storage enclosures each have two fan units. These fan units are mounted in the rear of the
enclosure (see Figure 2-6). They pull air through the front bezel to cool the internal components
of the enclosure. The air is exhausted out the rear of the fan units. The fans provide redundant
cooling of the enclosure. If one fan unit fails, the other fan unit runs at a higher speed to
compensate for the loss. Each fan unit has a fault light that illuminates if there is a problem with
the units.
Vent
Fault light
Latch

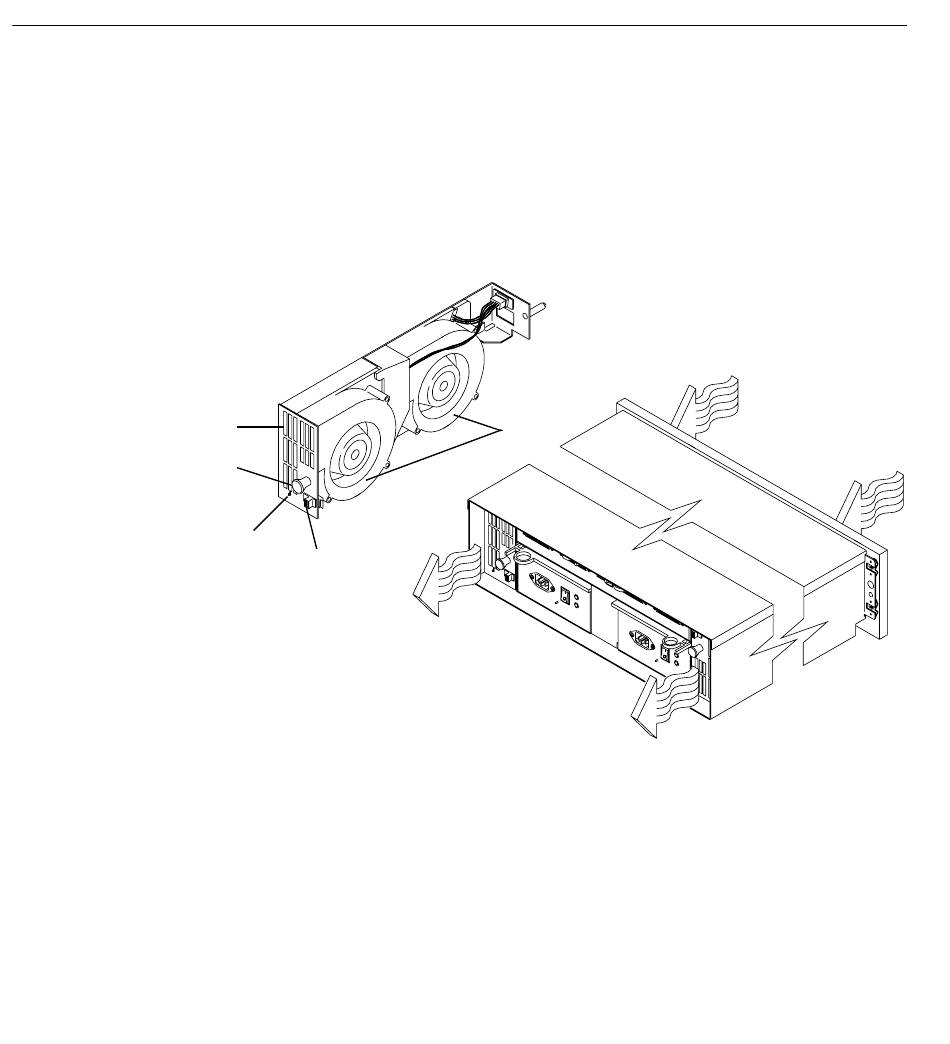

Figure 2-6
Fan Units
Fans
