Direct Connection without Failover
007-4644-001

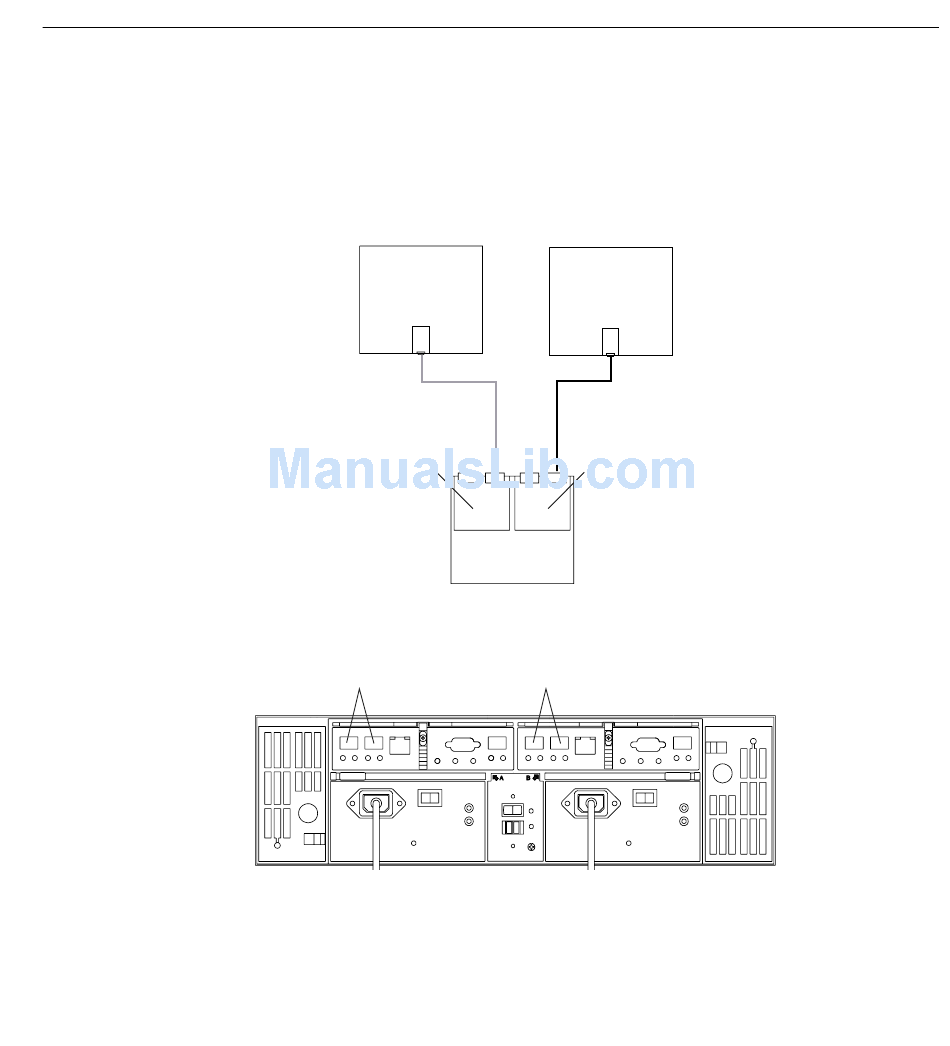

Figure 5-5 shows the possible configurations for direct connection systems without
failover.
Direct connection to dual
hosts with single HBAs
Host 1
Controller B
Controller A
Host connectors
(SFP transceivers)
Figure 5-5 Direct Host Connection without Failover
Host 2
Controller A
Controller
enclosure
Controller B
Host connectors
(SFP transceivers)
Connecting the System to the Hosts
71
