Figure 5-11 Pdu Cabling - Silicon Graphics InfiniteStorage S330 RAID User Manual

5: Cabling
82
5. To ensure power redundancy, plug each power distribution unit into a separate AC power
circuit (see Figure 5-11).
Controller enclosure
power supplies
Expansion enclosure
power supplies
Power
distribution
units (PDUs)

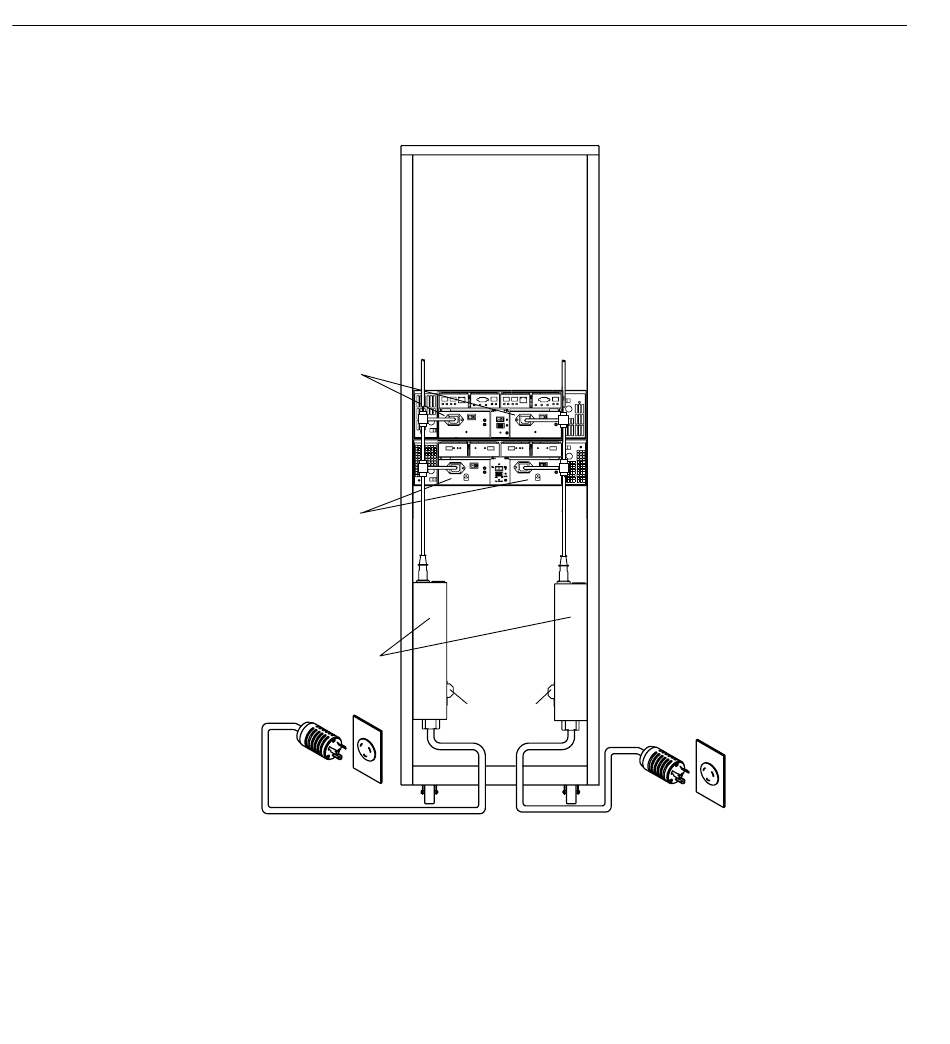

Figure 5-11 PDU Cabling
1Gb 2Gb
Conflict
X10 X1
Tray Number
Breaker
switches
