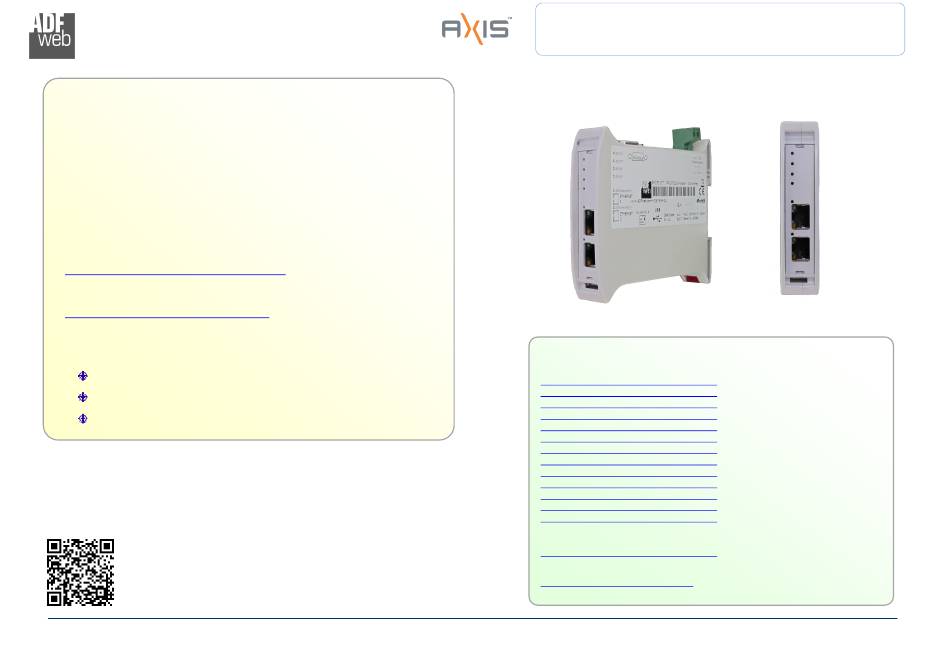

Industrial Electronic Devices
User Manual
Revision 1.001
English
BACnet/IP Master / CAN - Converter
(Order Code: HD67717-IP-A1)
BACnet MS/TP Master / CAN - Converter
(Order Code: HD67717-MSTP-A1, HD67717-MSTP-B2)
For Website information:
www.adfweb.com?Product=HD67717
For Price information:
www.adfweb.com?Price=HD67717
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com S.r.l.
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
User Manual BACnet Master / CAN
Document code: MN67717_ENG
For other BACnet Master products see also the following link:
Converter BACnet Master to
www.adfweb.com?Product=HD67704
www.adfweb.com?Product=HD67712
www.adfweb.com?Product=HD67714
www.adfweb.com?Product=HD67716
www.adfweb.com?Product=HD67718
www.adfweb.com?Product=HD67719
www.adfweb.com?Product=HD67721
www.adfweb.com?Product=HD67722
www.adfweb.com?Product=HD67723
www.adfweb.com?Product=HD67725
www.adfweb.com?Product=HD67726
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67832
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
in India
in India
in India
in India
Revision 1.001
Page 1 of 34
(DMX)
(Modbus Slave)
(Modbus TCP Slave)
(PROFIBUS Slave)
(CANopen)
(PROFINET)
(DeviceNet Slave)
(EtherNet/IP)
(NMEA 2000)
(J1939)
(SNMP Agent)
(KNX)
(DALI)
