SEND FRAMES:

By pressing the "Send Frames" button from the main window for SW67717 (Fig. 2) the "Send CAN frames" window appears (Fig. 6).
The COB-IDs inserted in this table contain the data that the converter will read from the BACnet slaves. These frames are sent by the
converter.

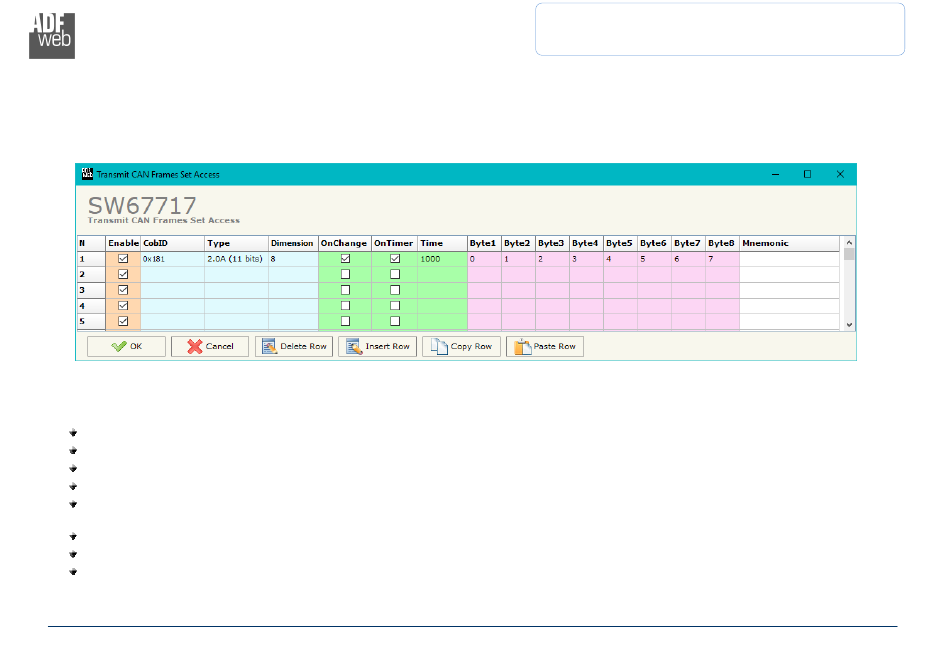

Figure 6: "Send CAN Frames" window
The data of the columns have the following meanings:
If the field "Enable" is checked, the CAN message is enabled;
In the field "Cob-ID" the COB-ID of the CAN frame is defined;
In the field "Type" the type of CAN format (2.0A (11 bits) or 2.0B (29 bits)) used for the message is defined;
In the field "Dimension" the number of byte of the CAN message (from 1 to 8) is defined;
By checking the field "OnChange" the CAN message is sent only if the data from BACnet are changed; otherwise (if it is selected the
field "OnTimer") it is sent cyclically, using the "Time" defined;
In the field "Time" the frequency of the transmission is defined;
In the fields "Byte X" the positions/bytes of the internal array from which taking the data of the CAN message are defined;
In the field "Mnemonic" a brief description is defined.
