ADF Web HD67726-IP-A1 User Manual

Bacnet master / snmp agent - converter
Hide thumbs

Advertisement

Quick Links

Download this manual
Industrial Electronic Devices
User Manual
Revision 1.100
English
BACnet Master / SNMP Agent - Converter
(Order Code: HD67726-IP-A1 , HD67726-MSTP-A1, HD67726-MSTP-B2)
For Website information:
www.adfweb.com?Product=HD67726
For Price information:
www.adfweb.com?Price=HD67726-IP-A1
www.adfweb.com?Price=HD67726-MSTP-A1
www.adfweb.com?Price=HD67726-MSTP-B2
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual BACnet Master / SNMP Agent
Document code: MN67726_ENG
For other BACnet products see also the following link:
Converter BACnet Master to
www.adfweb.com?Product=HD67704
www.adfweb.com?Product=HD67712
www.adfweb.com?Product=HD67714
www.adfweb.com?Product=HD67716
www.adfweb.com?Product=HD67717
www.adfweb.com?Product=HD67718
www.adfweb.com?Product=HD67719
www.adfweb.com?Product=HD67721
www.adfweb.com?Product=HD67722
www.adfweb.com?Product=HD67723
www.adfweb.com?Product=HD67725
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67832
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.100
Page 1 of 42
(DMX)
(Modbus Slave)
(Modbus TCP Slave)
(PROFIBUS Slave)
(CAN)
(CANopen)
(PROFINET)
(DeviceNet Slave)
(EtherNet/IP)
(NMEA 2000)
(J1939)
(KNX)
(DALI)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD67726-IP-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for ADF Web HD67726-IP-A1

Summary of Contents for ADF Web HD67726-IP-A1

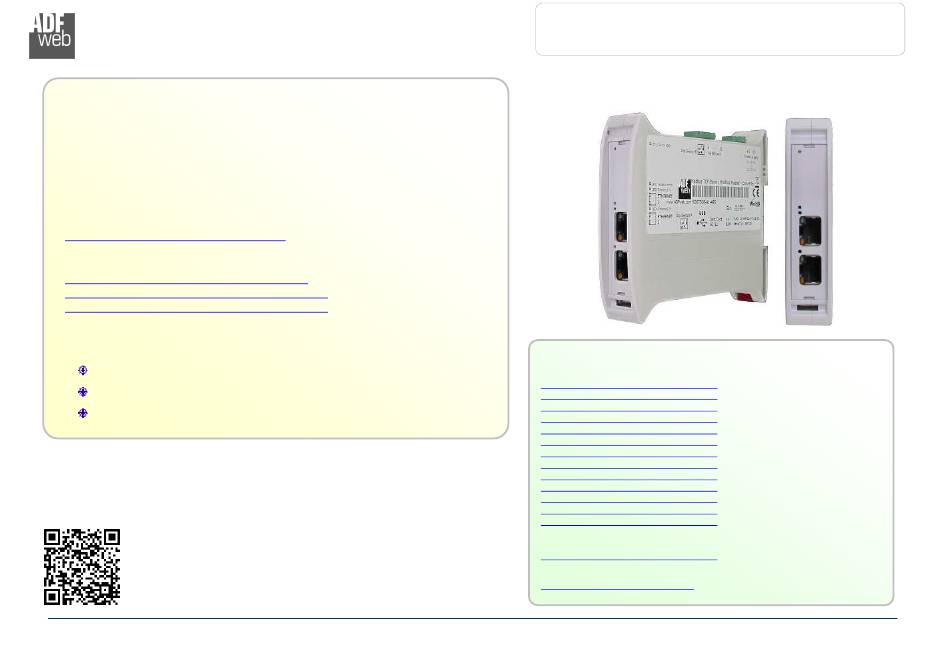

  • Page 1 Revision 1.100 Page 1 of 42 Industrial Electronic Devices User Manual Revision 1.100 English BACnet Master / SNMP Agent - Converter (Order Code: HD67726-IP-A1 , HD67726-MSTP-A1, HD67726-MSTP-B2) For Website information: www.adfweb.com?Product=HD67726 For Price information: www.adfweb.com?Price=HD67726-IP-A1 www.adfweb.com?Price=HD67726-MSTP-A1 www.adfweb.com?Price=HD67726-MSTP-B2 Benefits and Main Features:...
  • Page 2 With this “Document Code” go to web page www.adfweb.com/download/ CHARACTERISTICS and search for the corresponding code on the page. Click on the proper CONFIGURATION “Document Code” and download the updates. POWER SUPPLY FUNCTION MODES LEDS (for HD67726-IP-A1) REVISION LIST: LEDS (for HD67726-MSTP-A1/B2) RS485 (for HD67726-MSTP-A1/B2) ETHERNET Revision Date...
  • Page 3 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 3 of 42 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
  • Page 4 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 4 of 42 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l.
  • Page 5 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 5 of 42 Industrial Electronic Devices ADFweb.com S.r.l.
  • Page 6 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 6 of 42 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67726-IP-A1 ADFweb.com S.r.l.
  • Page 7 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 7 of 42 Industrial Electronic Devices Figure 1b: Connection scheme for HD67726-MSTP-A1 ADFweb.com S.r.l.
  • Page 8 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 8 of 42 Industrial Electronic Devices Figure 1c: Connection scheme for HD67726-MSTP-B2 ADFweb.com S.r.l.
  • Page 9 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 9 of 42 Industrial Electronic Devices CHARACTERISTICS: The HD67726-xxx-A1 and HD67726-xxx-B2 are BACnet Master / SNMP Agent Converters. It allows for the following characteristics: Up to 512 BACnet objects in reading and 512 objects in writing; Triple isolation between Serial - Power Supply, Serial - Ethernet, Ethernet - Power Supply;...
  • Page 10 The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67726-IP-A1 HD67726-MSTP-A1/B2 Caution: Do not reverse the polarity power HD67726-IP-A1 HD67726-MSTP-B2 HD67726-MSTP-A1 ADFweb.com S.r.l.
  • Page 11 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 11 of 42 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’...
  • Page 12 Revision 1.100 Page 12 of 42 Industrial Electronic Devices LEDS (for HD67726-IP-A1): The device has got six LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below.
  • Page 13 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 13 of 42 Industrial Electronic Devices LEDS (for HD67726-MSTP-A1/B2): The device has got four LEDs (five the –B2 version) that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below.
  • Page 14 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 14 of 42 Industrial Electronic Devices RS485 (HD67726-MSTP-A1/B2): To terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet).
  • Page 15 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 15 of 42 Industrial Electronic Devices ETHERNET: The BACnet/IP and SNMP connection and the updating of the converters must be made using Connector3 and/or Connector4 and/or Connector5 of HD67726-xxx-A1/B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps.
  • Page 16 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 16 of 42 Industrial Electronic Devices USE OF COMPOSITOR SW67726: To configure the Converter, use the available software that runs with Windows called SW67726. It is downloadable on the site www.adfweb.com and its operation is described in this document.
  • Page 17 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 17 of 42 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “BACnet Master / SNMP Agent - Converter”...
  • Page 18 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 18 of 42 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
  • Page 19 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 19 of 42 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
  • Page 20 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 20 of 42 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, BACnet and SNMP. By Pressing the “Set Communication” button from the main window for SW67726 (Fig. 2) the window “Set Communication”...
  • Page 21 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 21 of 42 Industrial Electronic Devices If selected “BACnet MS/TP” the means of the fields for “BACnet” are: In the field “Baudrate” the baud rate of the BACnet line is defined; In the field “Parity”...
  • Page 22 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 22 of 42 Industrial Electronic Devices SET BACNET ACCESS: By Pressing the “Set BACnet Access ” button from the main window of SW67726 (Fig. 2), the window “Set BACnet Access” appears (Fig. Figure 4a: “Set BACnet Access BACnet Read”...
  • Page 23 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 23 of 42 Industrial Electronic Devices In the field “D Adr” the address of the endpoint is defined. If “D Len” is ‘1’ it is possible to insert a number from 1 to 255; if “D Len” is ‘2’...
  • Page 24 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 24 of 42 Industrial Electronic Devices Figure 4b: “Set BACnet Access BACnet Write” window The means of the fields in the window (Write) are the follows: In the field “IP Address / ID”...
  • Page 25 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 25 of 42 Industrial Electronic Devices In the field “Max Error” the number of consecutive errors that the Master waits before stopping the specific requests is defined; In the field “Position”...
  • Page 26 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 26 of 42 Industrial Electronic Devices SET SNMP ACCESS (only if “Dynamic Map” is used): By pressing the “Set SNMP Access” button from the main window for SW67726 (Fig. 2) the “Set SNMP Access” window appears (Fig. 5). In this section, it is possible to create the OIDs for SNMP side to read or write using GET and SET commands or to be sent as TRAP messages.
  • Page 27 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 27 of 42 Industrial Electronic Devices The data of the columns in the “SNMP Write” have the following meanings: field “Enable” checked, SNMP enabled; field “Community Name” name Community is defined;...
  • Page 28 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 28 of 42 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;...
  • Page 29 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 29 of 42 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67726 device.
  • Page 30 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 30 of 42 Industrial Electronic Devices SNMP COMMUNICATION (Dynamic Map) In order to read/write the data from/to BACnet side, it is necessary to use specific SNMP commands in order to see the SNMP Input and write the SNMP Output.
  • Page 31 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 31 of 42 Industrial Electronic Devices Each SNMP variable created will have its own OID and it will be created following this rule: OID 1 (first row of “Set SNMP Access -> SNMP Read” table): .1.3.6.1.4.1.49314.1.1.1.4.9.1 OID 2 (second row of “Set SNMP Access ->...
  • Page 32 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 32 of 42 Industrial Electronic Devices Writing BACnet data from SNMP: In order to write the data from the HD67726, it is necessary to use the SET command. Each OID defined in the section “Set SNMP Access ->...
  • Page 33 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 33 of 42 Industrial Electronic Devices Each SNMP variable created will have its own OID and it will be created following this rule: OID 1 (first row of “Set SNMP Access -> SNMP Write” table): .1.3.6.1.4.1.49314.1.1.1.5.9.1 OID 2 (second row of “Set SNMP Access ->...
  • Page 34 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 34 of 42 Industrial Electronic Devices TRAP messages from SNMP: All the OIDs defined in the “Set SNMP Access -> SNMP Read” table can be sent as TRAP messages too. The TRAP messages are contained in the MIB tree and they have these OIDs: TRAP 1 (first row of “Set SNMP Access ->...
  • Page 35 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 35 of 42 Industrial Electronic Devices SNMP COMMUNICATION In order to read/write the data from/to BACnet side, it is necessary to use specific SNMP commands in order to see the SNMP Input and write the SNMP Output.
  • Page 36 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 36 of 42 Industrial Electronic Devices Writing BACnet data from SNMP: In order to write the data to the HD67726 it is necessary to use the “snmpset” command. The Output array is contained to this internal directory: 1.3.6.1.4.1.33118.1.1.1.4.x.0, where ‘x’...
  • Page 37 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 37 of 42 Industrial Electronic Devices Note: The data blocks from 1 to 8 are used to read/write the entire internal BACnet arrays of the converter. The data are represented in bytes.
  • Page 38 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 38 of 42 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8a: Mechanical dimensions scheme for HD67726-IP-A1 ADFweb.com S.r.l.
  • Page 39 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 39 of 42 Industrial Electronic Devices Figure 8b: Mechanical dimensions scheme for HD67726-MSTP-A1 Figure 8c: Mechanical dimensions scheme for HD67726-MSTP-B2 ADFweb.com S.r.l.
  • Page 40 BACnet type IP: BACnet/IP MSTP: BACnet MS/TP Device Family HD67726: BACnet Master / SNMP Agent - Converter Order Code: HD67726-IP-A1 BACnet/IP Master / SNMP Agent – Converter Order Code: HD67726-MSTP-A1 BACnet MS/TP Master / SNMP Agent – Converter Order Code: HD67726-MSTP-B2...
  • Page 41 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 41 of 42 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
  • Page 42 User Manual BACnet Master / SNMP Agent Document code: MN67726_ENG Revision 1.100 Page 42 of 42 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
