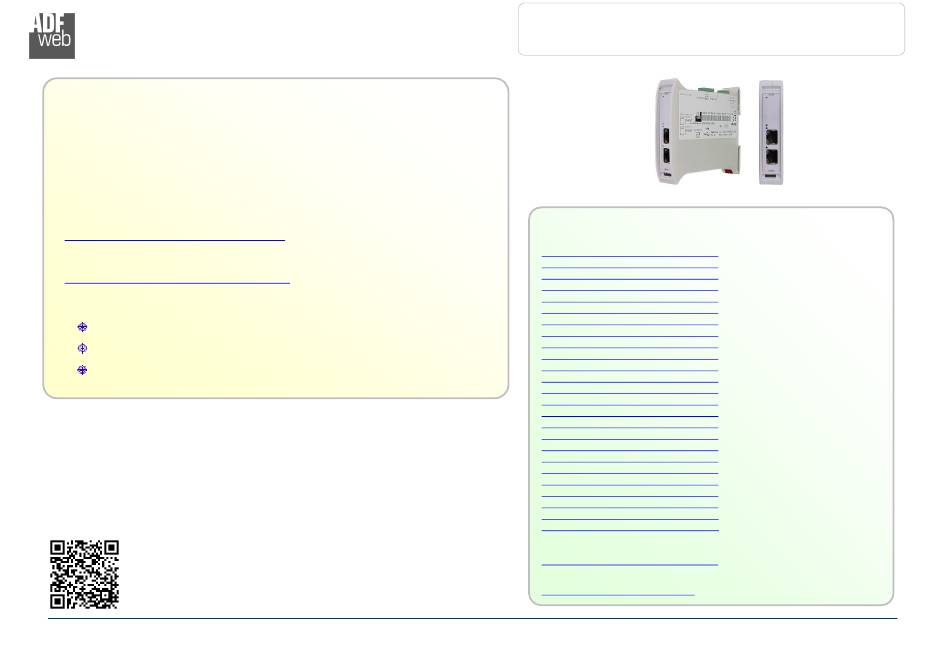

Industrial Electronic Devices
User Manual
Revision 1.000
English
IEC 61850 Server / PROFINET Slave - Converter
(Order Code: HD67752-A1)
For Website information:
www.adfweb.com?Product=HD67752
For Price information:
www.adfweb.com?Price=HD67752-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual IEC 61850 Server / PROFINET Slave
Document code: MN67752_ENG
For other IEC 61850 Server products see also the following link:
Converter IEC 61850 Server to
www.adfweb.com?Product=HD67733
www.adfweb.com?Product=HD67734
www.adfweb.com?Product=HD67735
www.adfweb.com?Product=HD67736
www.adfweb.com?Product=HD67737
www.adfweb.com?Product=HD67738
www.adfweb.com?Product=HD67739
www.adfweb.com?Product=HD67740
www.adfweb.com?Product=HD67741
www.adfweb.com?Product=HD67742
www.adfweb.com?Product=HD67743
www.adfweb.com?Product=HD67744
www.adfweb.com?Product=HD67745
www.adfweb.com?Product=HD67746
www.adfweb.com?Product=HD67747
www.adfweb.com?Product=HD67748
www.adfweb.com?Product=HD67749
www.adfweb.com?Product=HD67750
www.adfweb.com?Product=HD67751
www.adfweb.com?Product=HD67753
www.adfweb.com?Product=HD67754
www.adfweb.com?Product=HD67755
www.adfweb.com?Product=HD67756
www.adfweb.com?Product=HD67B82
www.adfweb.com?Product=HD67C65
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 28
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(EtherNet/IP Master)
(EtherNet/IP Slave)
(J1939)
(KNX)
(MQTT)
(NMEA 0183)
(NMEA 2000)
(PROFIBUS Master)
(PROFIBUS Slave)
(SNMP Manager)
(SNMP Agent)
(Serial)
(Ethernet)
(PROFINET Master)
(EnOcean)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67752-A1
Summary of Contents for ADF Web HD67752-A1
- Page 1 Industrial Electronic Devices User Manual Revision 1.000 English IEC 61850 Server / PROFINET Slave - Converter (Order Code: HD67752-A1) For Website information: For other IEC 61850 Server products see also the following link: www.adfweb.com?Product=HD67752 Converter IEC 61850 Server to www.adfweb.com?Product=HD67733...
-
Page 2: Table Of Contents
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 2 of 28 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 3 of 28 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 4 of 28 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 5 of 28 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67752-A1 ADFweb.com S.r.l. -
Page 6: Characteristics
Page 6 of 28 Industrial Electronic Devices CHARACTERISTICS: The HD67752-A1 is IEC 61850 Server / PROFINET Slave - Converter. It allows for the following characteristics: Isolation between Ethernet - Power Supply; Two-directional information between IEC 61850 bus and PROFINET bus;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67752-A1 Caution: Do not reverse the polarity power HD67752-A1 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 8 of 28 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 9 of 28 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Ethernet
IEC 61850 connection, PROFINET connection and the updating of the converters must be made using Connector3 and/or Connector4 of the HD67752-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. -
Page 11: Use Of Compositor Sw67752
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 11 of 28 Industrial Electronic Devices USE OF COMPOSITOR SW67752: To configure the Converter, use the available software that runs with Windows called SW67752. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Configuration / Open Configuration
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 12 of 28 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “IEC 61850 Server / PROFINET Slave - Converter”... -
Page 13: Software Options
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 13 of 28 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 14 User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 14 of 28 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 15: Set Communication
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 15 of 28 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameter of two buses, PROFINET and IEC 61850. By pressing the “Set Communication”... - Page 16 User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 16 of 28 Industrial Electronic Devices The means of the fields for “PROFINET” are: In the field “IP Address” the IP address of the converter is defined; In the field “SubNet Mask”...
-
Page 17: Iec 61850 Access
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 17 of 28 Industrial Electronic Devices IEC 61850 ACCESS: By Pressing the “IEC 61850 Access” button from the main window for SW67752 (Fig. 2) the window “Set Variables Access for IEC 61850” appears (Fig. -
Page 18: Tls Known Certificate
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 18 of 28 Industrial Electronic Devices TLS KNOWN CERTIFICATE: Figure 5: “TLS Known Certificate” window By pressing the “TLS Known Certificate” button from the Main Window of SW67752 (Fig. 2) the “Definition the list of Known Certificates” window appears (Fig. -
Page 19: Profinet Xml
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 19 of 28 Industrial Electronic Devices PROFINET XML: By Pressing the “PROFINET XML” button from the main window for SW67752 (Fig. 2) it is possible to generate the xml file to be imported into the master PROFINET. -
Page 20: Update Device
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 20 of 28 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 21 User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 21 of 28 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67752 device. Warning: If Fig.
-
Page 22: Plc Configuration
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 22 of 28 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the TIA Portal software by Siemens. - Page 23 User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 23 of 28 Industrial Electronic Devices 2) Import the module in the network; connect the device to the PLC network and edit the parameters of IP, station name etc. ADFweb.com S.r.l.
- Page 24 User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 24 of 28 Industrial Electronic Devices 3) Load the configuration into the PLC. ADFweb.com S.r.l.
-
Page 25: Mechanical Dimensions
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 25 of 28 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67752-A1 ADFweb.com S.r.l. -
Page 26: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67752: IEC 61850 Server / PROFINET Slave - Converter Order Code: HD67752-A1 IEC 61850 Server / PROFINET Slave - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 27: Disclaimer
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 27 of 28 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 28: Warranties And Technical Support
User Manual IEC 61850 Server / PROFINET Slave Document code: MN67752_ENG Revision 1.000 Page 28 of 28 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
