User Manual
Revision 1.200
English

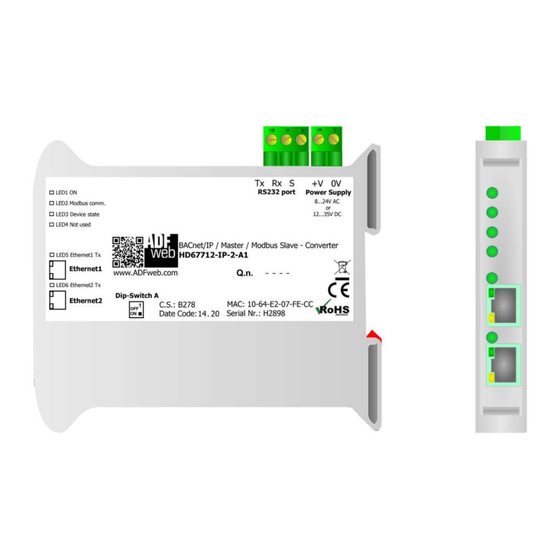

BACnet Master / Modbus Slave - Converter
(Order Code: HD67712-IP-2-A1 , HD67712-IP-4-A1,
HD67712-MSTP-2-A1, HD67712-MSTP-4-A1)
For Website information:
www.adfweb.com?Product=HD67712
For Price information:
www.adfweb.com?Price=HD67712-IP-2-A1
www.adfweb.com?Price=HD67712-IP-4-A1
www.adfweb.com?Price=HD67712-MSTP-2-A1
www.adfweb.com?Price=HD67712-MSTP-4-A1
Benefits and Main Features:
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual BACnet Master / Modbus Slave
Document code: MN67712_ENG
For other BACnet products see also the following link:
Converter BACnet Master to
www.adfweb.com?Product=HD67704
www.adfweb.com?Product=HD67714
www.adfweb.com?Product=HD67716
www.adfweb.com?Product=HD67717
www.adfweb.com?Product=HD67718
www.adfweb.com?Product=HD67719
www.adfweb.com?Product=HD67721
www.adfweb.com?Product=HD67722
www.adfweb.com?Product=HD67723
www.adfweb.com?Product=HD67725
www.adfweb.com?Product=HD67726
www.adfweb.com?Product=HD67737
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67832
www.adfweb.com?Product=HD67937
www.adfweb.com?Product=HD67965
www.adfweb.com?Product=HD67B31
www.adfweb.com?Product=HD67D16
www.adfweb.com?Product=HD67E05
www.adfweb.com?Product=HD67E55
www.adfweb.com?Product=HD67F16
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.200
Page 1 of 37
(DMX)
(Modbus TCP Slave)
(PROFIBUS Slave)
(CAN)
(CANopen)
(PROFINET Slave)
(DeviceNet Slave)
(EtherNet/IP Slave)
(NMEA 2000)
(J1939)
(SNMP Agent)
(IEC 61850 Server)
(KNX)
(DALI)
(MQTT)
(IO-Link Slave)
(OPC UA Server)
(LoRaWAN)
(EtherCAT Slave)
(EtherCAT Master)
(LoRaWAN Gateway)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD67712-IP-2-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADF Web HD67712-IP-2-A1

Summary of Contents for ADF Web HD67712-IP-2-A1

  • Page 1 Page 1 of 37 Industrial Electronic Devices User Manual Revision 1.200 English BACnet Master / Modbus Slave - Converter (Order Code: HD67712-IP-2-A1 , HD67712-IP-4-A1, HD67712-MSTP-2-A1, HD67712-MSTP-4-A1) For other BACnet products see also the following link: For Website information: Converter BACnet Master to www.adfweb.com?Product=HD67712 www.adfweb.com?Product=HD67704...

  • Page 2: Updated Documentation

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 2 of 37 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST...

  • Page 3: Security Alert

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 3 of 37 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.

  • Page 4: Examples Of Connection

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 4 of 37 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l.
  • Page 5 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 5 of 37 Industrial Electronic Devices ADFweb.com S.r.l.

  • Page 6: Connection Scheme

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 6 of 37 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67712-IP-2-A1 ADFweb.com S.r.l.
  • Page 7 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 7 of 37 Industrial Electronic Devices Figure 1b: Connection scheme for HD67712-IP-4-A1 ADFweb.com S.r.l.
  • Page 8 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 8 of 37 Industrial Electronic Devices Figure 1c: Connection scheme for HD67712-MSTP-2-A1 ADFweb.com S.r.l.
  • Page 9 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 9 of 37 Industrial Electronic Devices Figure 1d: Connection scheme for HD67712-MSTP-4-A1 ADFweb.com S.r.l.
  • Page 10 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 10 of 37 Industrial Electronic Devices CHARACTERISTICS: The HD67712-IP-x-A1 and HD67712-MSTP-x-A1 are BACnet Master / Modbus Slave Converters. It allows for the following characteristics: Up to 512 BACnet objects in reading and 512 objects in writing; Triple isolation between RS232/485 - Power Supply, RS232/RS485 - Ethernet, Ethernet - Power Supply;...

  • Page 11: Power Supply

    The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67712-IP-x-A1 HD67712-MSTP-x-A1 Caution: Do not reverse the polarity power HD67712-IP-2-A1 HD67712-IP-4-A1 HD67712-MSTP-2-A1 HD67712-MSTP-4-A1 ADFweb.com S.r.l.

  • Page 12: Function Modes

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 12 of 37 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware.
  • Page 13 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 13 of 37 Industrial Electronic Devices LEDS (for HD67712-IP-x-A1): The device has got six LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered...
  • Page 14 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 14 of 37 Industrial Electronic Devices LEDS (for HD67712-MSTP-2-A1): The device has got four LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered...
  • Page 15 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 15 of 37 Industrial Electronic Devices LEDS (for HD67712-MSTP-4-A1): The device has got four LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered...
  • Page 16 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 16 of 37 Industrial Electronic Devices RS485 (for HD67712-IP-4-A1 and HD67712-MSTP-2/4-A1): To terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet).
  • Page 17 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 17 of 37 Industrial Electronic Devices RS232 (for HD67712-IP-4-A1 and HD67712-MSTP-2-A1): The connection from a RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a serial cable where the pins 2 and 3 are crossed).
  • Page 18 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 18 of 37 Industrial Electronic Devices ETHERNET: The BACnet/IP connection and the updating of the converters must be made using Connector3 and/or Connector4 and/or Connector5 of HD67712 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps.
  • Page 19 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 19 of 37 Industrial Electronic Devices USE OF COMPOSITOR SW67712: To configure the Converter, use the available software that runs with Windows called SW67712. It is downloadable on the site www.adfweb.com and its operation is described in this document.

  • Page 20: New Configuration / Open Configuration

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 20 of 37 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “BACnet Master / Modbus Slave - Converter”...

  • Page 21: Software Options

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 21 of 37 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
  • Page 22 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 22 of 37 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.

  • Page 23: Set Communication

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 23 of 37 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, BACnet and Modbus. By Pressing the “Set Communication” button from the main window for SW67712 (Fig. 2) the window “Set Communication”...
  • Page 24 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 24 of 37 Industrial Electronic Devices If selected “BACnet MS/TP” the means of the fields for “BACnet” are: In the field “Baudrate” it is possible to select the baudrate of the BACnet line; In the field “Parity”...
  • Page 25 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 25 of 37 Industrial Electronic Devices SET BACNET ACCESS: By Pressing the “Set BACnet Access ” button from the main window of SW67712 (Fig. 2), the window “Set Communication” appears (Fig. The window is divided in two parts, the “BACnet in Read”...
  • Page 26 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 26 of 37 Industrial Electronic Devices In the field “D Len” define the length of “D Add” field (1 or 2 or 6); In the field “D Add”...
  • Page 27 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 27 of 37 Industrial Electronic Devices Figure 4b: “BACnet Set Access  BACnet Write” window The means of the fields in the window (Write) are the follows: If the field “Enable”...
  • Page 28 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 28 of 37 Industrial Electronic Devices By checking the field “Change” the BACnet write request is made only if Modbus data are changed; otherwise (if is selected the field “Timer”) is sent cyclically, using the “Poll Time”;...

  • Page 29: Update Device

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 29 of 37 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;...
  • Page 30 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 30 of 37 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67712 device. Warning: If Fig.

  • Page 31: Mechanical Dimensions

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 31 of 37 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7a: Mechanical dimensions scheme for HD67712-IP-2-A1 ADFweb.com S.r.l.
  • Page 32 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 32 of 37 Industrial Electronic Devices Figure 7b: Mechanical dimensions scheme for HD67712-IP-4-A1 ADFweb.com S.r.l.
  • Page 33 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 33 of 37 Industrial Electronic Devices Figure 7c: Mechanical dimensions scheme for HD67712-MSTP-2-A1 ADFweb.com S.r.l.
  • Page 34 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 34 of 37 Industrial Electronic Devices Figure 7d: Mechanical dimensions scheme for HD67712-MSTP-4-A1 ADFweb.com S.r.l.

  • Page 35: Ordering Informations

    IP: BACnet/IP MSTP: BACnet MSTP Device Family HD67712: BACnet Master / Modbus Slave - Converter Order Code: HD67712-IP-2-A1 BACnet/IP Master / Modbus Slave – Converter (Modbus on RS232) Order Code: HD67712-IP-4-A1 BACnet/IP Master / Modbus Slave - Converter (Modbus on RS485)
  • Page 36 User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 36 of 37 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.

  • Page 37: Warranties And Technical Support

    User Manual BACnet Master / Modbus Slave Document code: MN67712_ENG Revision 1.200 Page 37 of 37 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
