LEDS:
HD67717-IP-A1

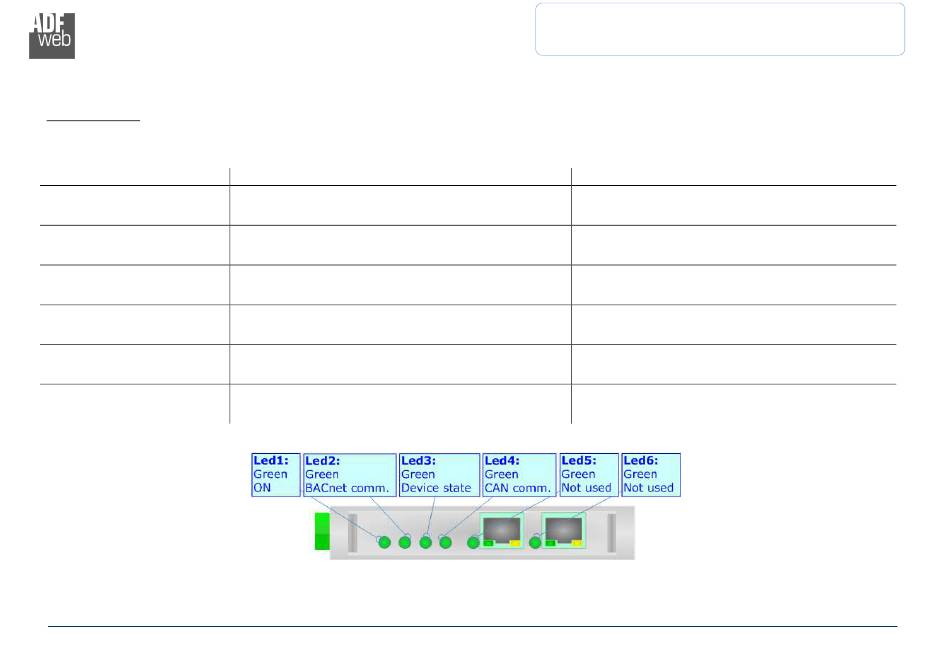

The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: BACnet comm. (green)
3: Device state (green)
4: CAN comm. (green)
5: Not used (green)
6: Not used (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks quickly when a BACnet response is received
Blinks slowly (~1Hz)
Blinks quickly when a CAN frame is received
OFF
OFF
User Manual BACnet Master / CAN
Document code: MN67717_ENG Revision 1.001
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
