Industrial Electronic Devices

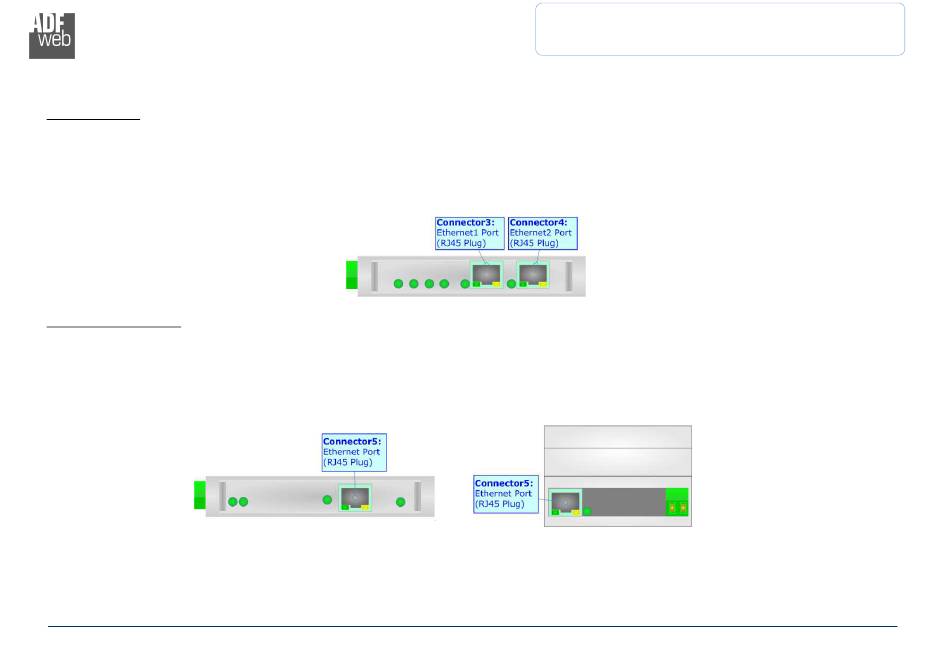

ETHERNET:
HD67717-IP-A1
The Ethernet ports are used for BACnet/IP communication and for programming the device.
The BACnet/IP connection must be made using Connector3 and/or Connector4 of HD67717-IP-A1 with at least a Category 5E cable.
The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in
cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a
PC/PLC/other is recommended the use of a cross cable.
HD67717-MSTP-A1/B2
The Ethernet port is used for programming the device.
The Ethernet connection must be made using Connector5 of HD67717-MSTP-A1/B2 with at least a Category 5E cable. The maximum
length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100
Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is
recommended the use of a cross cable.
ADFweb.com S.r.l.
User Manual BACnet Master / CAN
Document code: MN67717_ENG
Revision 1.001
Page 14 of 34
