Chapter 7: 24 Volt Test

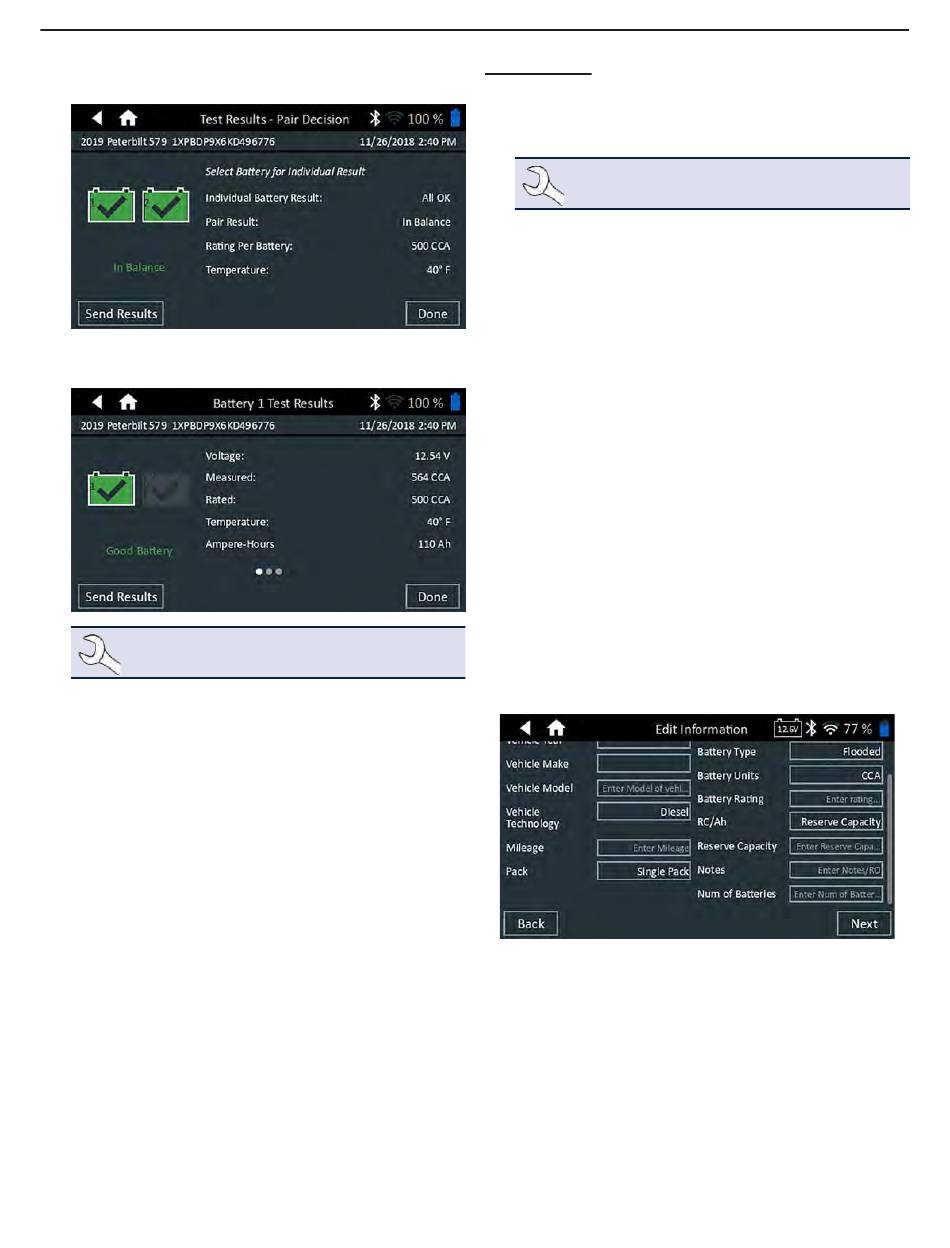

9. After the last battery in the pack has been tested, the re-
sults of the individual battery tests are displayed.
10. Tap the individual battery icons to view the specific result
for each battery.
NOTE: See Appendix A for possible test result
descriptions.
11. Tap Send Results to print or send the test results to a con-
figured printer. To return to the Home Screen, tap Done
or reconnect the pack and tap System Test to continue.

System Test

1. If available, connect the optional Amp Clamp to the Tester
Pod and hold the clamp away from any cables with the
jaws closed.
NOTE: If the Amp Clamp is not being used,
begin the System Test at Step 4.
Tap Next to zero out the clamp or Skip if the Amp Clamp
2.
is not being used.
3. With the engine and electrical loads off, place the Amp Clamp
around the negative (–) battery pack cable and tap Next.
4. Start the engine and let it idle.
5. Turn off all accessory loads such as the headlight high
beams and ventilation blower fan.
Tap Next. The analyzer tests the alternator output.
6.
7. Turn on the high beam headlights and ventilation blower
motor.
8. When prompted, rev the engine to between 1000 to 1250
rpm and hold it there while the analyzer tests the alterna-
tor output again.
Tap Next.
9.
10. Turn off the high beam headlights and ventilation blower
motor.
11. Return the engine to idle, then shut it off.
12. Tap Next to display the test results.

Test Results-Summary

A Test Results - Summary screen is displayed following a
>
System Test. Tap to view detailed test results for each part
of the test.
