DSS-5000 HD

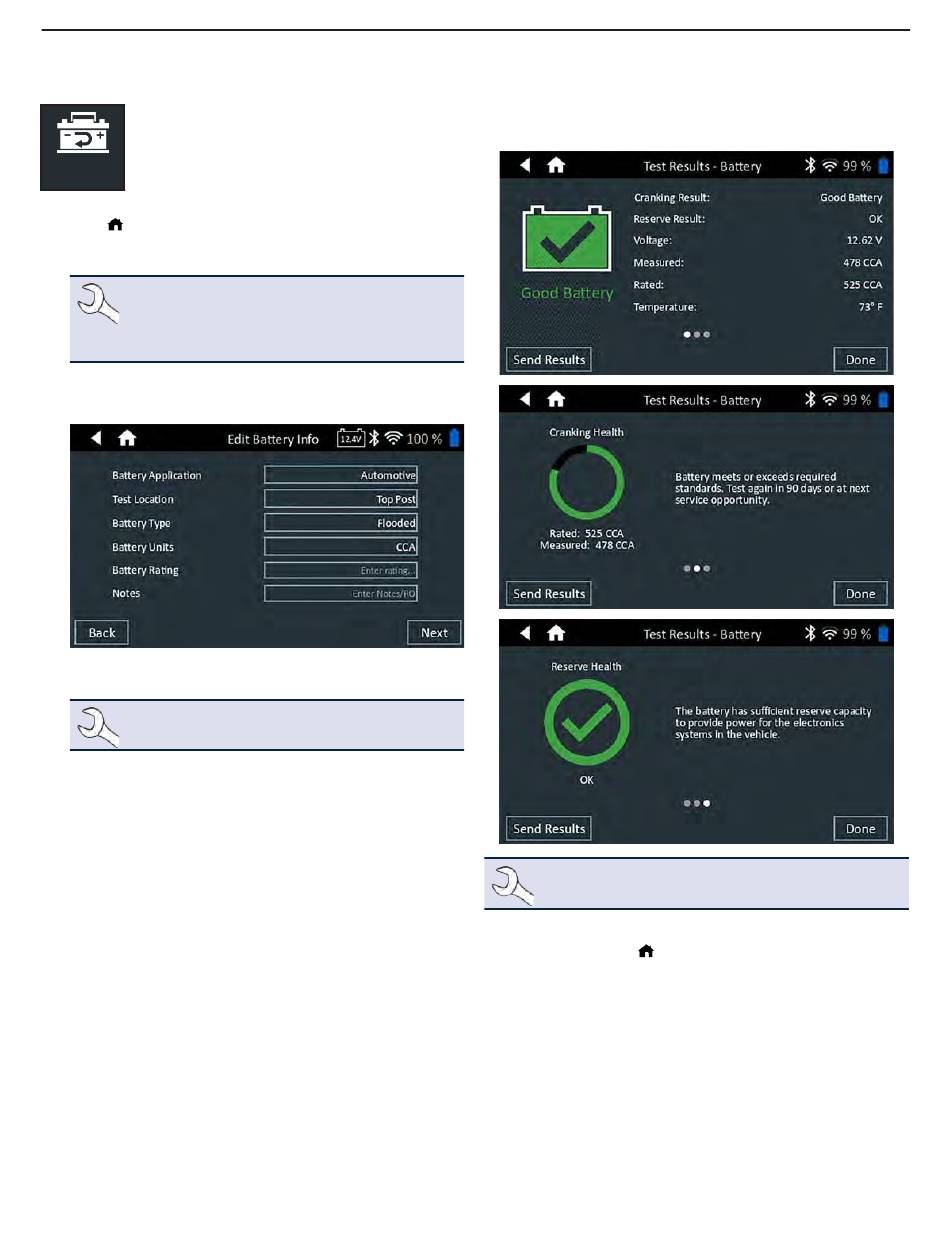

Use Out Of Vehicle Test to test and verify the
condition of customer batteries that are out-of-
vehicle for possible return and/or warranty claim.
Out Of Vehicle
Test
At any time during the test tap  to return to the previous
screen or to return to the Main Menu.
1. Connect the Tester Pod test clamps to the battery.
NOTE: For any reoccurring issues with the Con-
troller connecting to the Tester Pod, and the
Tester Pod is connected to a <9.5V battery, re-
place the Pod's 6 AA batteries.
At the Main Menu, tap Out Of Vehicle Test. The Edit Bat-
2.
tery Information screen is displayed.
3. Enter the correct battery information for each field.
NOTE: See Appendix B for test parameter
descriptions.
4. Align the temperature sensor on the Controller over the
battery and tap Capture. The test begins when the tem-
perature is successfully captured.

Chapter 4: Out Of Vehicle Test

Battery Test Results

The test results are displayed on the Controller screen.
To send the test results to a configured printer tap Send
Results. Tap Done or
Chapter 4: Out Of Vehicle Test
NOTE: See Appendix A for possible test result
descriptions.
to return to the Main Menu.
