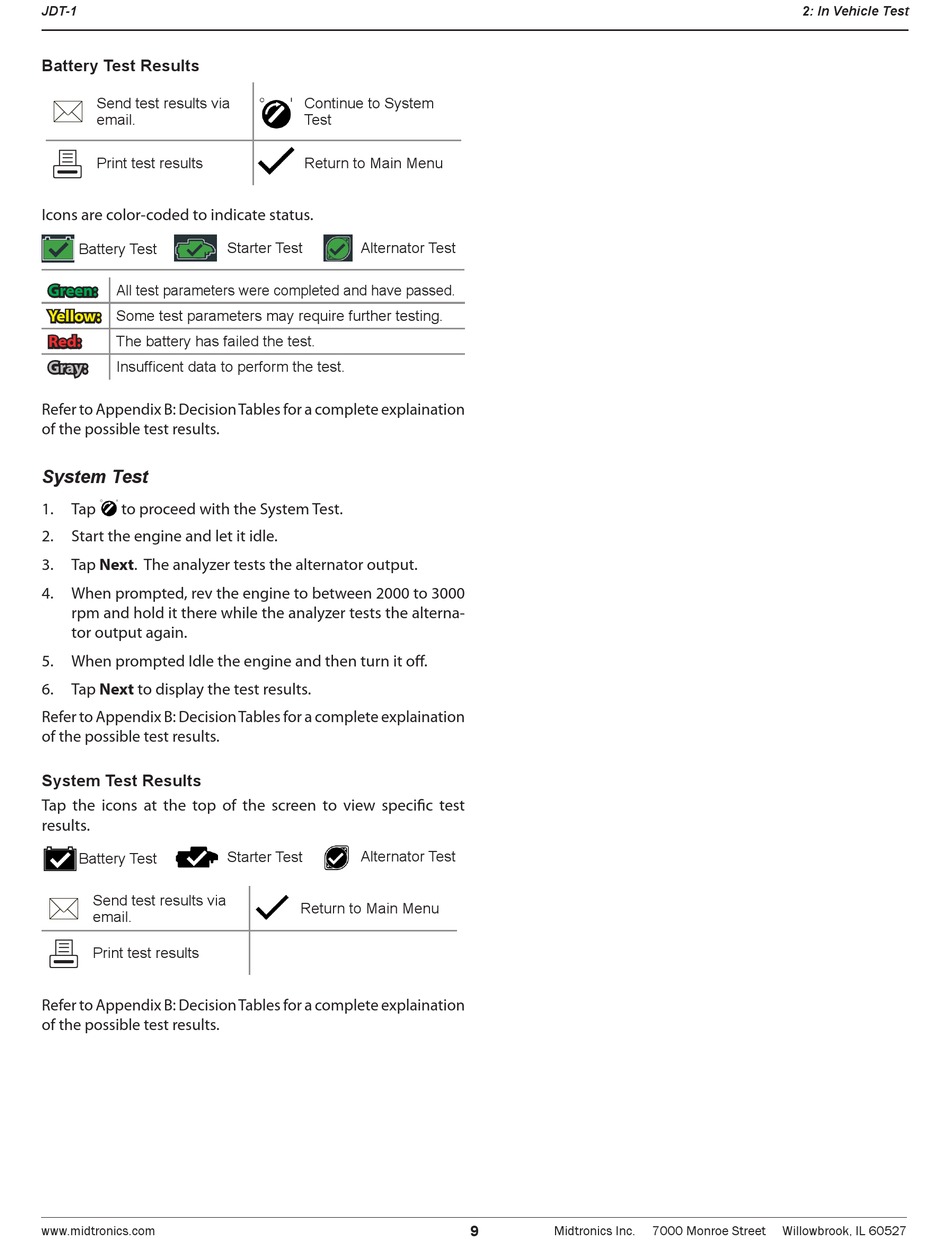

Battery Test Results

Send test results via

email.
6
Print test results
Icons are color-coded to indicate status.
Battery Test
Green:
All test parameters were completed and have passed.
Yellow:
Some test parameters may require further testing.
Red:
The battery has failed the test.
Gray: Insufficent data to perform the test.
Refer to Appendix B: Decision Tables for a complete explaination
of the possible test results.

System Test

1. Tap to proceed with the System Test.
2. Start the engine and let it idle.
Tap Next. The analyzer tests the alternator output.
3.
4. When prompted, rev the engine to between 2000 to 3000
rpm and hold it there while the analyzer tests the alterna-
tor output again.
5. When prompted Idle the engine and then turn it off.
Tap Next to display the test results.
6.
Refer to Appendix B: Decision Tables for a complete explaination
of the possible test results.

System Test Results

Tap the icons at the top of the screen to view specific test
results.
Battery Test
Send test results via

email.
6
Print test results
Refer to Appendix B: Decision Tables for a complete explaination
of the possible test results.
www.midtronics.com
Continue to System
Test
Return to Main Menu
Starter Test Alternator Test
Starter Test Alternator Test
Return to Main Menu
