DSS-5000 HD
9.

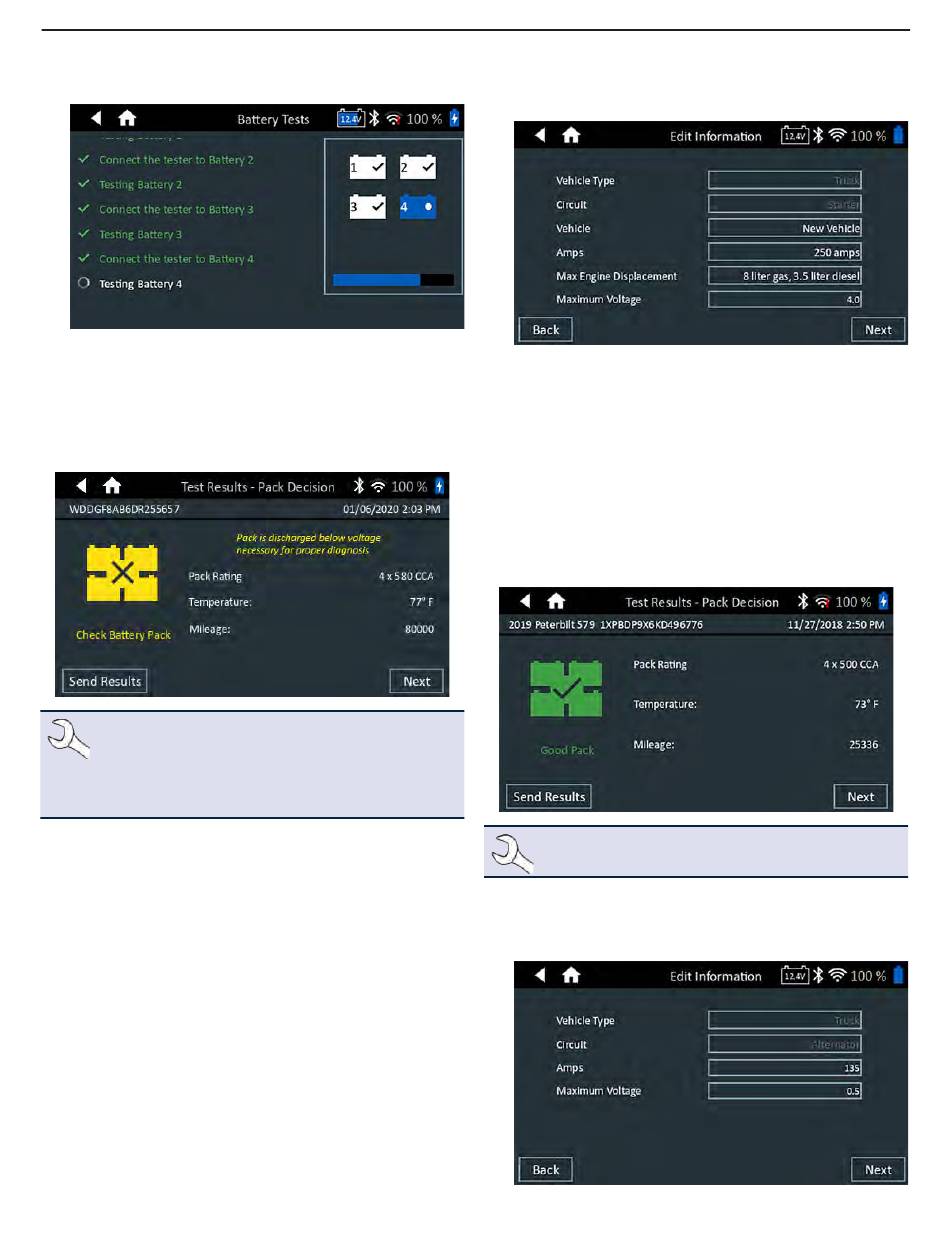

Repeat the testing process until all batteries in the pack
have been tested.
After the last battery in the pack has been tested, the
results of the individual battery tests are displayed.
Check Battery Pack
Following a Check Battery Pack decision, the option is given to
break the pack apart and test each individual battery.
NOTE: If the message "Pack is discharged below
voltage necessary for proper diagnosis" is dis-
played, the pack voltage is below 12.4 V and the
RP129 test is aborted. Break the pack and individu-
ally test or charge each battery before retesting.
Follow the on-screen prompts when breaking the pack and
testing each individual battery.
Tap Next following each step.
1.
Disconnect all of the batteries in the battery pack.
2.
Connect the clamps to the first battery in the pack.
3.
Once the test on the first battery is complete, remove the
clamps and connect them to the second battery.
4.
Repeat the process for each battery in the pack. As each
battery is tested, the numbered icons on the Tablet Con-
troller will display white and display a checkmark.
Test results are displayed when all of the batteries in the
pack have been individually tested.
5.
Tap a numbered battery icon on the screen to see the spe-
cific results for that battery.
To print, email, or send the test results to a configured printer
tap Send Results. To return to the Home Screen, tap Done or
System Test to continue with the System Test.
Battery Test Results
The test results are displayed on the Controller screen.
NOTE: See Appendix A for possible test result
descriptions.
1.
Tap Send Results to print or send the test results to a con-
figured printer or Next to continue.
Edit the displayed vehicle information and tap Next.
2.
Chapter 5: RP129 Test
