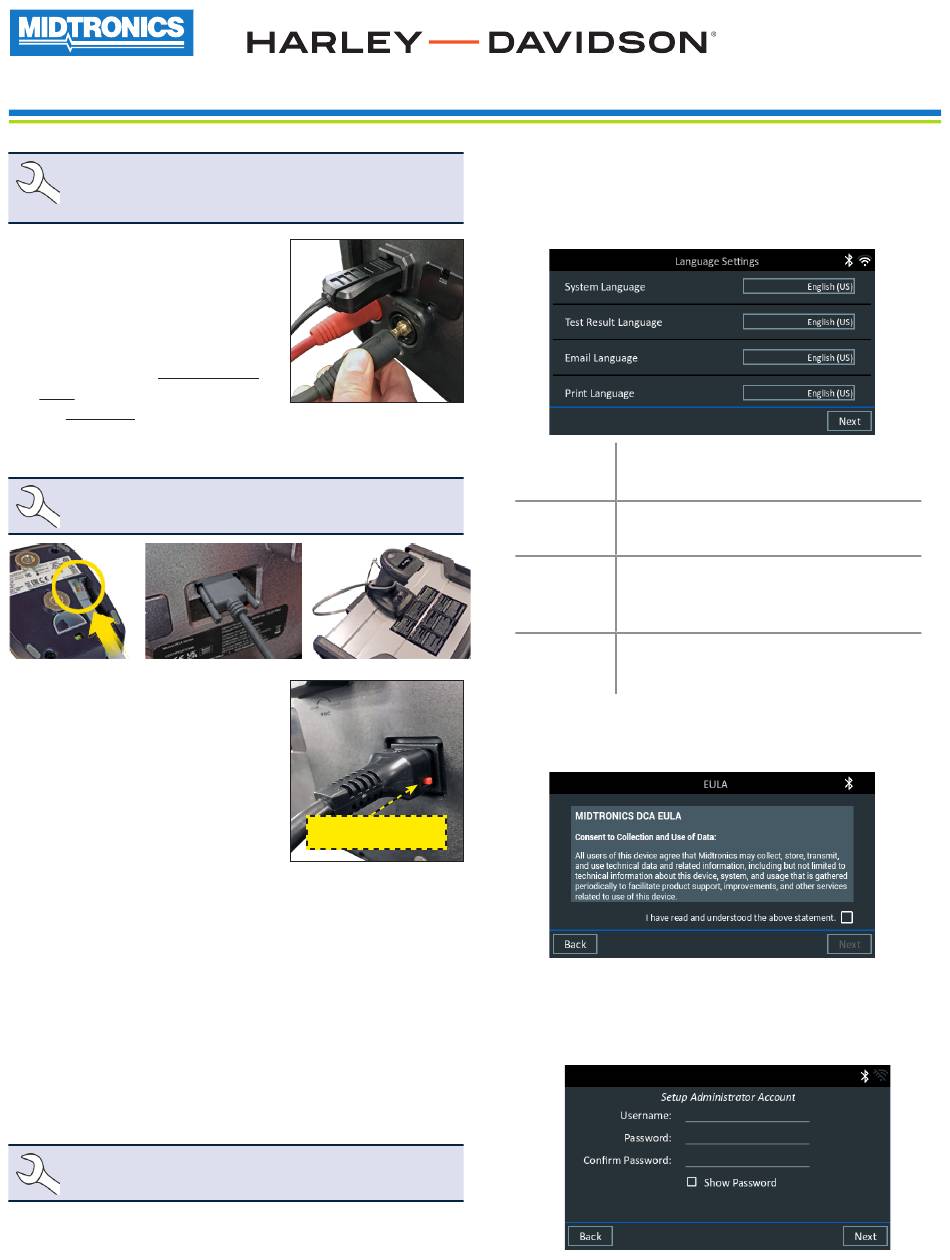

Midtronics HARLEY-DAVIDSON DCA-8000 Quick Reference Manual

NOTE:
Periodically leave the DCA-8000 plugged-in
to allow the tool to check for and perform available
software updates.
Charging Cables
1. Insert the communication cable
until the connector locks into
place.
2. For strain relief, pre-twist each
quick connector counter clock-
wise, before inserting and rotat-
ing clockwise 180° onto each
Locking Post on the back of the
charger.
NOTE: The barcode scanner base is magnetic and can
be placed anywhere on the top of the DCA
Locking Power Cord
1. Install power cord.
2. If removal is necessary, pull back
on the red tab on the side of the
connector to release/remove the
power cord from the charger's
power socket.
3. The connection process is com-
plete when all three cables are
secured to the charger.
Optional Wireless Barcode Scanner Cable
1. Insert the RJ50 connector into the bottom of the scanner
base until it clicks into place.
2. If necessary, using a flat blade screwdriver, pry off the
plastic cover over the DB9 connector on the back of the
charger.
3. Use the thumb screws on the DB9 connector to secure the
cable from the dock to the charger.
NOTE: The barcode scanner base is magnetic and can
be placed anywhere on top of the DCA charger.
DCA-8000
Initial Setup
1.
charger.
2.
Pull back to release
3.
Upon initial power-up, the Language Settings screen is dis-
played. If necessary, adjust the language settings for your
dealership, then tap Next to continue.
System Select the Controller default language
displayed on the screen.
Language
Test Result Select the Controller default language for
Language all displayed tests and test results.
Select the default standard language for
Email
Language the analyzer to use for all tests and results
sent via email.
Select the default standard language for
Print
Language the analyzer to use for all tests and results
printed using a networked printer.
A Consent To Collect Data screen is displayed. Read the
terms for collecting data, tap the Consent check box and
then tap Next to continue.
Next you must create an admin account; begin by entering
your dealership's name as the Username.
Tap Next to continue.
Quick Reference Guide
167-001082EN-B
August, 2024
