SolaX Power QUICK INSTALLATION GUIDE Quick Installation Manual page 22

Wiring Connection on the BI

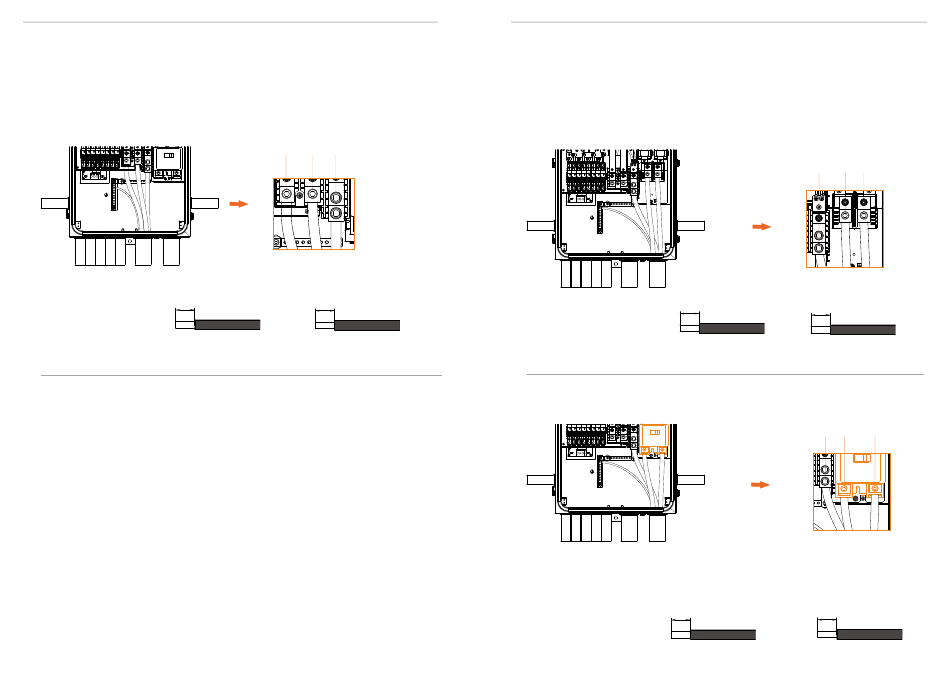

7.3 Connect Load Conductors to BI
• AC cable
6-4 AWG 1.77 in / 45 mm
GND cable
40
L1 L2 N
4/0 AWG 1.25 in / 32 mm
Wirings
Wirings
AC cable
7.4 Connect Grid Conductors to BI
Before installing a main breaker
6-4 AWG 1.77 in / 45 mm
GND cable
After installing a main breaker
6-4 AWG 1.77 in / 45 mm
GND cable
Wiring Connection on the BI
N L1 L2
4/0 AWG 1.25 in / 32 mm
Wirings
Wirings
AC cable
N L2 L1
4/0 AWG 1.25 in / 32 mm
Wirings Wirings
AC cable
41
