SolaX Power X3-Matebox advanced Quick Installation Manual

Quick Installation Guide

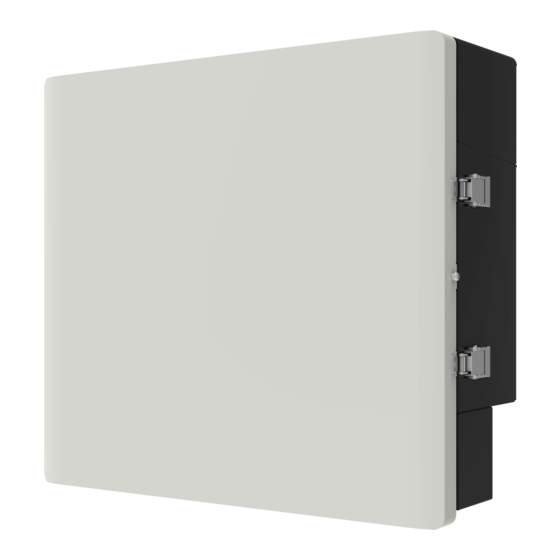

X3-Matebox advanced
1. Introduction
X3-Matebox advanced is a critical part for energy storage system,
which integrates the DC breaker/AC breaker/switch unit/Meter
and so on, it can easily be installed compare to the traditional
separate system, this unit can be used with Hybrid and Fit series
inverters.
There are 2 wiring diagrams for your system connection reference,
please follow your local policy to chose which one is suitable for
your side.
Diagram A: N line and PE line separate wiring, M
series inverters; (For most countries)
PV 1
Inverter PV 2
CT
Main Breaker/RCD
CT-R
BAT Grid EPS(Off-grid) CT-S
CT-T
N
X3-Matebox
E-BAR
Distribution Box
Battery
Loads
EPS(Off-grid) loads
N-BAR for loads
N-BAR for EPS(Off-grid) loads
2. Overview
1) Dimension and terminals of X3-Matebox advanced.
551 mm
204.5 mm
500 mm
Object Name
PV
A
EPS(INV)/(Off-grid)
B
Grid(INV)
C
D Grid
E Load
BAT
F
G PV (INV)
H Meter
I BAT(INV)
J DC Switch
2) Electrical schematic diagram
1
Matebox
Grid
Diagram B: N line and PE line together, M series
inverters; (Applicable to Australia)
PV 1
Inverter PV 2
CT
CT-R
RCD
BAT Grid EPS(Off-grid) CT-S
N
E-BAR
Grid
X3-Matebox
Battery
EPS(Off-grid) loads Loads
N-BAR for EPS(Off-grid) loads N-BAR for loads
A B C D E F
Load
EPS(INV)
Grid
Meter
G H I
Description
PV connection port (PVarray)
EPS output portof the inverter
Grid output portof the inverter
Gridconnection port (to local grid)
Load connection port
Battery connection port(tobatterypack)
PV connection port of the inverter
Meter
Battery connection port of the inverter
DC switch
C
3. Preparation
- Packing Lists
X3-Matebox
advanced *1
Load
16 mm² OT terminal
*1
- Tools
Main Breaker
CT-T
N
Grid
E-BAR
4. Mounting
Step 1: Bracket installation
Fasten the brackets to the wall, according to the following steps.
(1) Fix the inverter bracket
on the bracket B;
J
Monkey Wrench
Torque: 1.5±0.2N·m
Note :When installing the bracket, be sure to use a
the horizontal plane.
Bracket A should be installed at a distance of 300mm (at least) from the ground.
Step 2: Screw the brackets on the wall
a) Use the bracket as a template to mark the
two holes on the wall with a marker pen. Drill
holes at marked spots with depth of 80 mm.
c ) The bracket is aligned with the screw uses
the inner hexagonal wrench to screw the
tapping screw until the expansion bolt
"bang" is heard.
Step 3. Match the X3-Matebox advanced with the brackets
Use a level rstly to ensure that the brackets in the system are rmly installed and level. Then follow the
steps below to hang X3-Matebox advanced.
Mount X3-Matebox advanced on brackets and tighten the screws.
Open the upper cover and the isolation plate of X3-Matebox
advanced before wiring.
Bracket A *1 Bracket B *1
16 mm² terminals
*10
16 mm² Ground
Sealing rubber
terminal *1
rings *2
Inverter bracket
level to test and keep the bracket parallel to
spirit
b) Insert expansion bolt into the hole, use rubber
hammer to knock the expansion screw bolt into
the wall.
Φ10 drill
a)
d) The Matebox should be prioritized over the
installation of the inverter. Before installing the
inverter, you need connect the ground wire and
the Dongle communication accessories)
Screw
Inner
hexagonal
wrench
c)
Philips
Screwdriver
torque:1.5±0.2Nm ·
(Expansion bolt ,
6 mm² terminals *8 Gasket ,Self-tapping
Flange nuts *2 bolt) *2
N-wire connector*1,
N-terminal adjacent
bridge *1
Documentations
(for AU market)
(2)Then set the bracket B on
the bracket A and x it with
screws;
Monkey Wrench
＞300mm
Torque: 1.5±0.2N·m
Expansion
bolts
Rubber hammer
Torque :2.5±0.2N·m
b)
d)
2
