Wiring Connection between Inverter and Battery

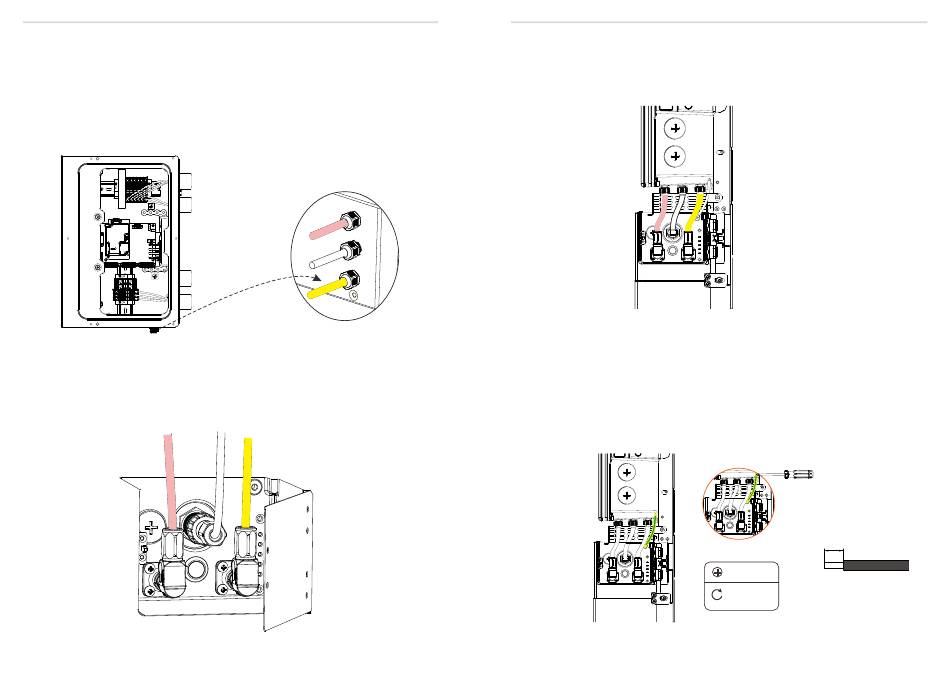

6. Wiring Connection Between Inverter and Battery
• BAT+, BAT- and COMM cable
On the side of inverter
BAT+
BMS
DIP
BAT+
POWER
On the side of battery
34
BAT+, BAT- and COMM
cable originally
connected on side of
inverter.
BAT+
COMM
BAT-
COM
BAT-
BAT-
Connection between inverter and battery
• GND cable
For easier connection, please connect the grounding cable on the BMS first.
Wiring Connection between Inverter and Battery
Inverter
Battery
8 AWG 0.47 in / 12 mm
Wirings
M5
17.7 lbf.in /
2.0 N·m
35
