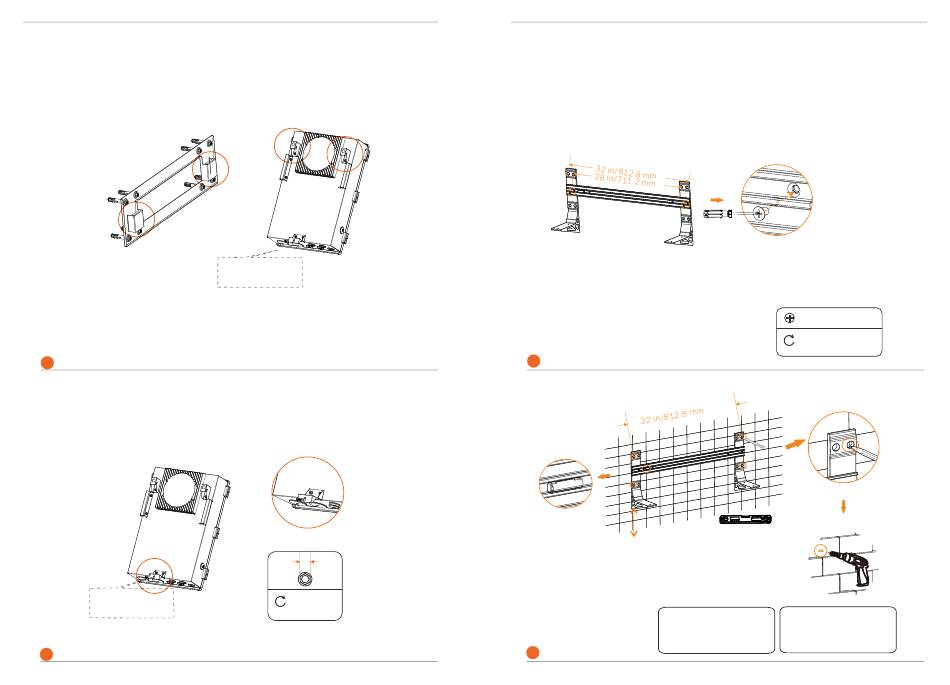

Mechanical Installation
5
Secure the BI
on the wall
26
6
Hang the BI
on the bracket
10
mm
26.5 lbf.in /
3.0 N·m
4. Mechanical Installation (Wall-mounting)
1
Cylindrical plastic
bubble spirit level
Ground
Note: The distance from the Base to
the ground is decided according to
the local regulations.
Φ 8 drill for wooden wall
Depth:
1.97 in/ 50 mm
2
Mechanical Installation
M5
17.7 lbf.in /
2.0 N·m
Φ12 drill for concrete wall
Depth:
3.54 in/ 90 mm
27
