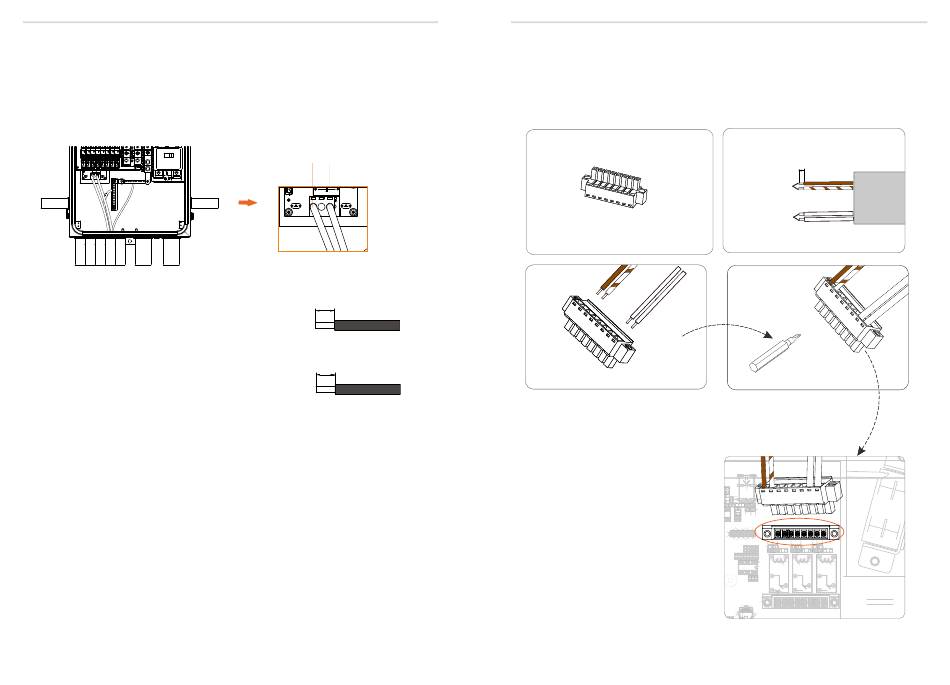

Wiring Connection on the BI
7.2 Connect Generator and EPO Conductors to BI
• AC cable of generator
38
L2 L1
8-4 AWG 0.67 in / 17 mm
Wirings
AC cable
8-6 AWG 0.79 in / 20 mm
Wirings
GND cable
• Communication cable of generator and EPO
Step 1 Step 1
8-pin 8-pin
Step 3 Step 3
Wiring Connection on the BI
Step 2 Step 2
Strip Length Strip Length
0.24 in / 6 mm
24-16 AWG 24-16 AWG
Generator Generator
Conduit Conduit
24-18 AWG 24-18 AWG
EPO EPO
Step 4 Step 4
1 8
On the side of BI On the side of BI
