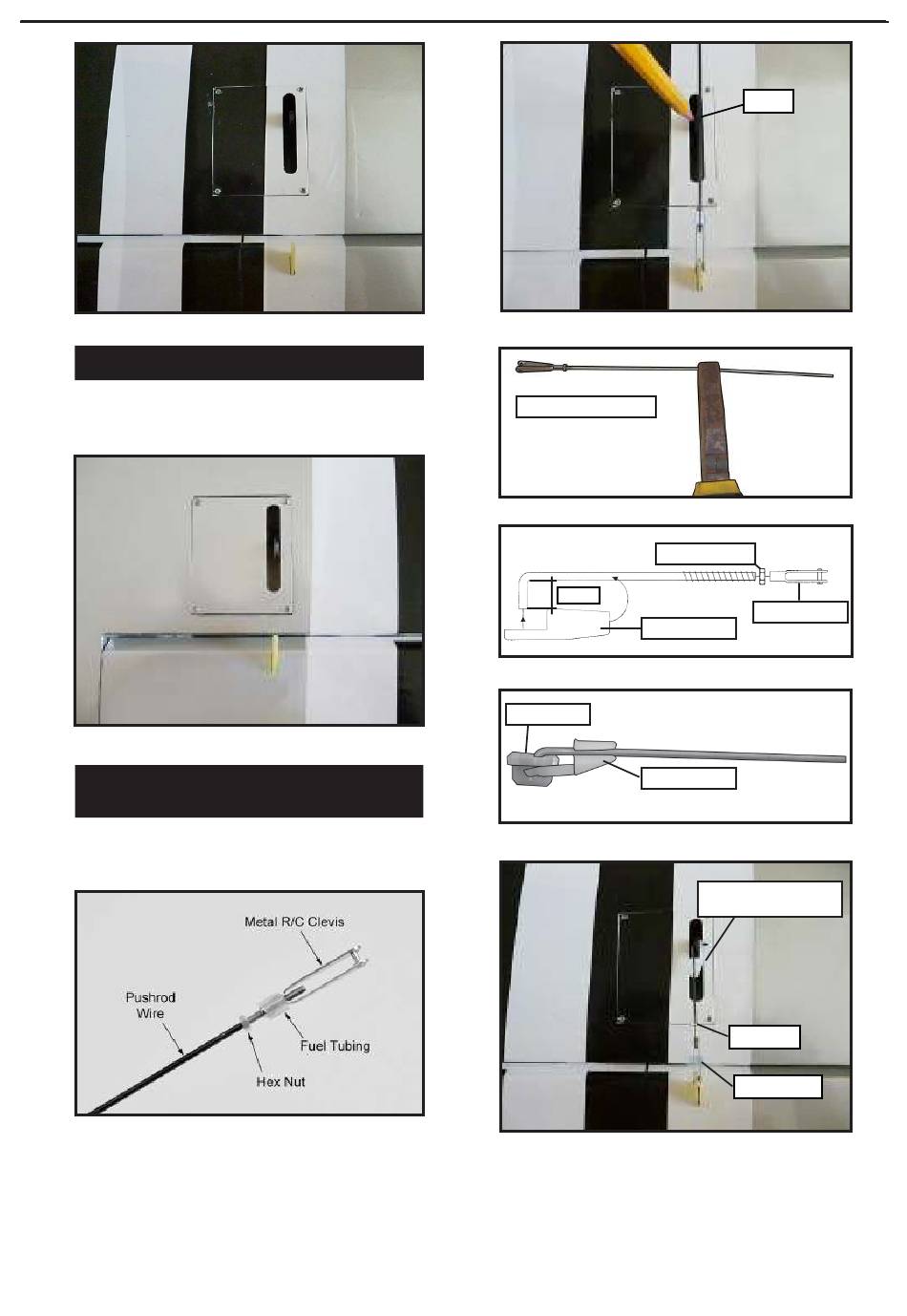

INSTALLING THE FLAP SERVO.
Repeat the procedure for the lap servo.
AILERON PUSHROD
INSTALLATION.
Please see below pictures.
Use a felt tip pen to mark the wire where
it crosses the hole. Use a pair of pliers to
put a shrp 90-degree bend in the wire at
the mark.
Bend at the mark
8mm
Servo arm.
.
Mark.
M2 lock nut.
Metal clevis.
Snap keeper.
Snap keeper.
Nylon Snap keeper.
Hex Nut.
Fuel tubing.
