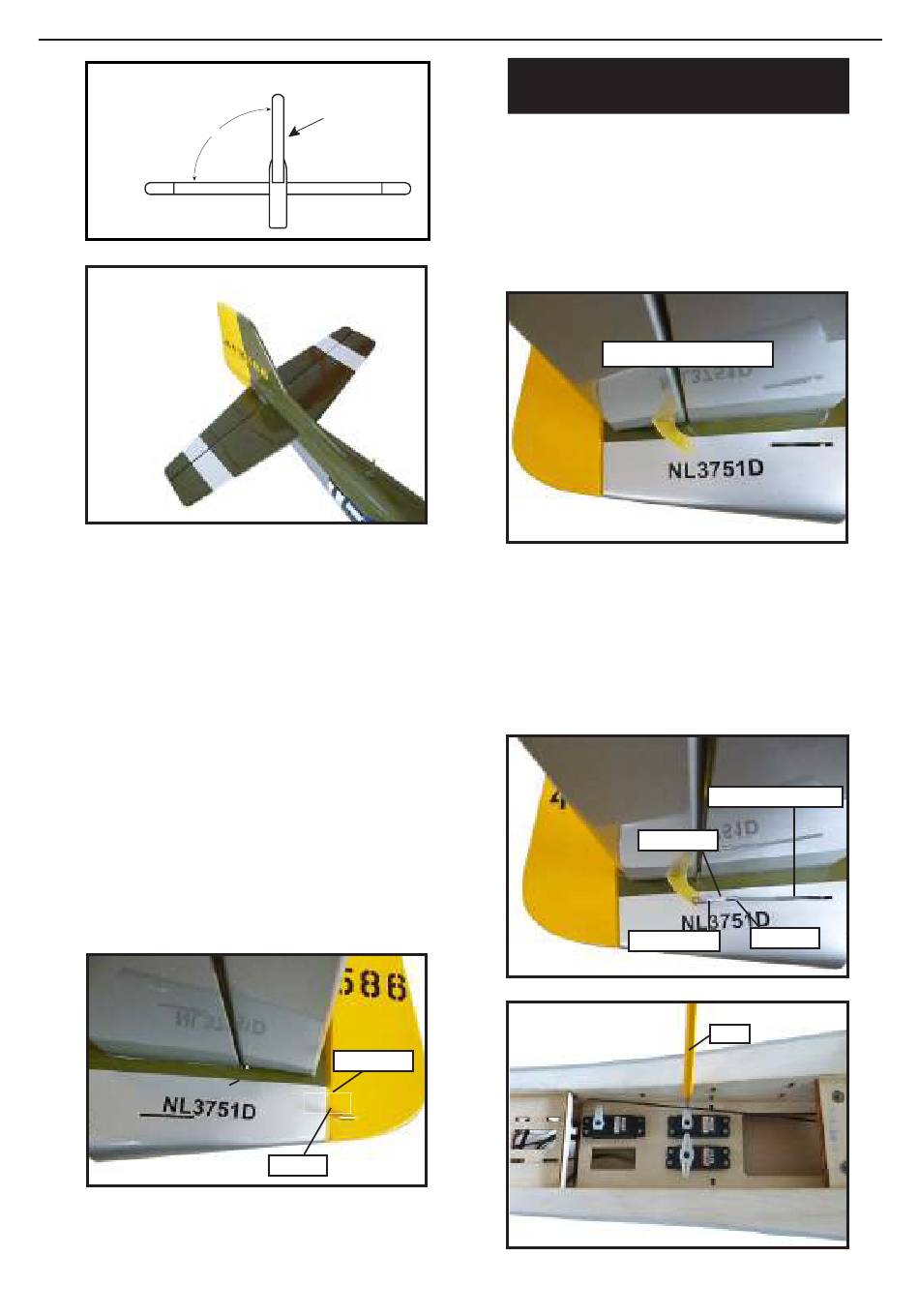

Elevator Pushrod Installation - Seagull Models SEA276 Assembly Manual

P-51D MUSTANG
Horizontal 90º
Stabilizer.
5) When you are sure that everything is
aligned correctly, mix up a generous
amount of Flash 30 Minute Epoxy. Ap-
ply a thin layer to the mounting slot
and to bottom of the vertical stabilizer
mounting area. Apply epoxy to the bot-
tom and top edges of the iller block and
to the lower hinge also. Set the stabilizer
in place and realign. Double check all of
your measurements once more before
the epoxy cures. Hold the stabilizer in
place with T-pins or masking tape and
remove any excess epoxy using a paper
towel and rubbing alcohol. Allow the
epoxy to fully cure before proceeding.
26
Vertical
Stabilizer.
C/A glue.
Hinge.
Instruction Manual.
ELEVATOR PUSHROD
INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron con-
trol horns.
2) Position the elevator control horn on
the both side of elevator.
Elevator control horn.
3) hread one clevis and M2 lock nut on
to each elevator control rod. hread the
horns on until they are lush with the
ends of the control rods.
4) Elevator pushrods assembly as pictures
below.
M2 clevis.
Fuel tubing.
.
Elevator pushrod.
Hex nut.
Pen.
