5.2.2. Drain
For the correct operation of the steam system of the COMPACT MASTER ovens, the
equipment must be connected to a drainage system with a nominal diameter 40mm
(DN40) through a heat-resistant and siphonic type pipe.
Mychef COMPACT MASTER ovens internally incorporate a system to block odors that may
come from the drain.
For correct operation, keep in mind that the tube must have a constant slope of at least 5º.
The drain must be a maximum of 1 meter long, have a diameter larger than
the drain connection and be free of chokes.
5.3. Vapor condensation hood
Refer to the installation manual supplied with the vapor condensation hood for installation.
The vapor condensation hood is an accessory. The hood can be installed
once the oven is installed.
mychefpro.com

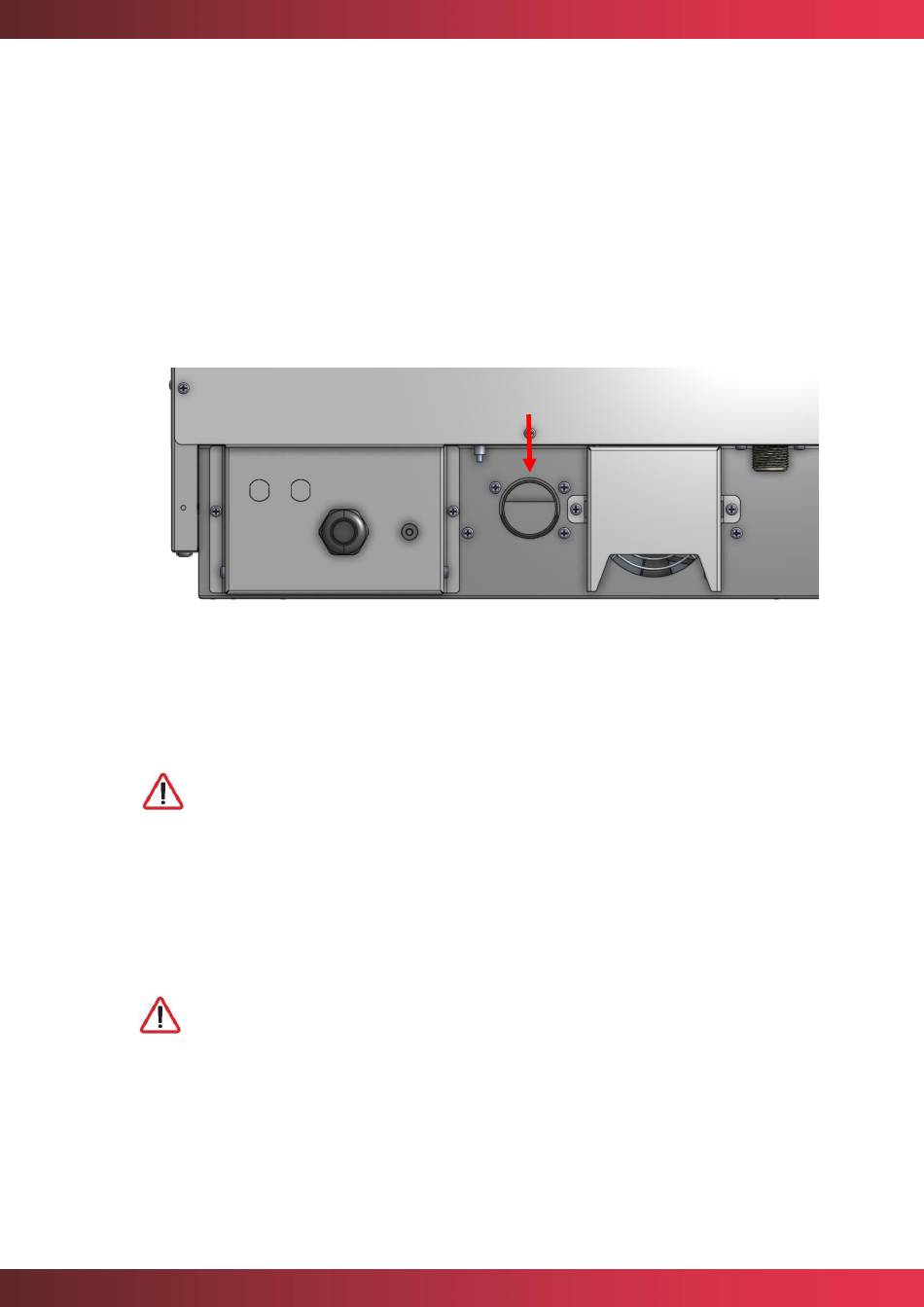

Figure7. Drain
