Mychef COMPACT MASTER Product Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

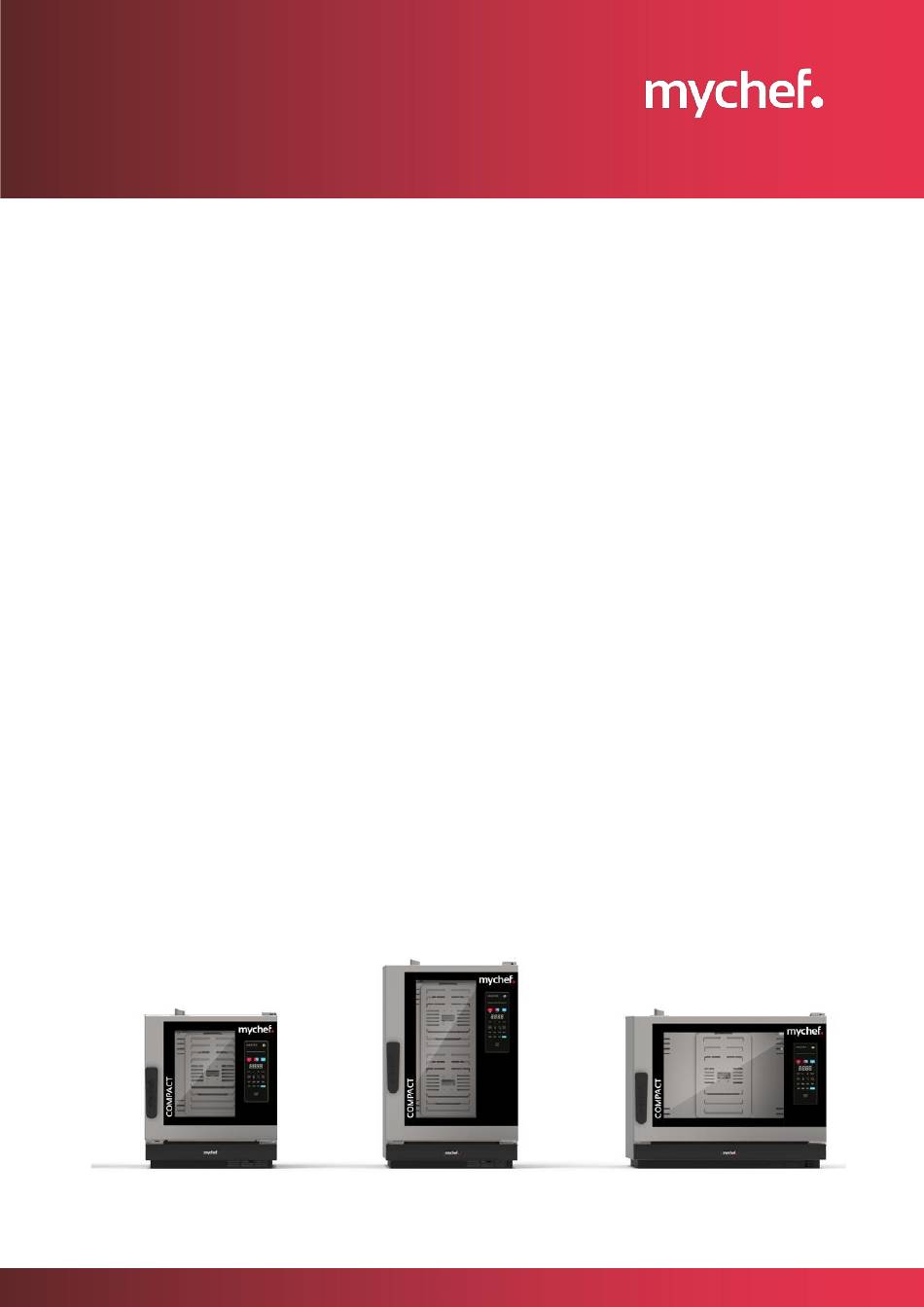

COMPACT
MASTER
Product Manual
Installation, use and maintenance
1
mychefpro.com
COMPACT MASTER PRODUCT MANUAL - 02/08/2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the COMPACT MASTER and is the answer not in the manual?

Questions and answers

Related Manuals for Mychef COMPACT MASTER

Summary of Contents for Mychef COMPACT MASTER

  • Page 1 COMPACT MASTER Product Manual Installation, use and maintenance mychefpro.com COMPACT MASTER PRODUCT MANUAL - 02/08/2023...
  • Page 2 INDEX 1. INTRODUCTION ..................... 5 2. TECHNICAL CHARACTERISTICS ..............6 2.1. Main features Mychef COMPACT MASTER ............6 3. GENERAL RULES ON SAFETY AND ACCIDENT PREVENTION ......7 3.1. Personnel in charge of using the equipment ............7 3.2. Electrical hazard ......................7 3.3.
  • Page 3 6.1.9. Quick memories ................... 32 6.1.10. Automatic cleaning ................32 6.1.10.1. Self-cleaning and rinsing program on COMPACT MASTER models 32 6.1.10.2. Fast cooling .................. 33 6.2. NightWatch ......................36 6.3. Errors and alarms ....................36 7. USING THE REMOTE CONTROL ..............39 7.1.
  • Page 4 8.4. Preventive Maintenance ..................66 COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 5 The equipment is shipped from the factory once calibrated and has passed rigorous quality and safety tests that ensure its correct functioning. The manufacturer will decline any responsibility for problems caused by improper installation, modification, use or maintenance. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...

  • Page 6: Technical Characteristics

    20-80 30-100 50-150 30-100 Board1. Main characteristics of the Mychef COMPACT MASTER ovens The maximum recommended food load per 40mm GN 1/1 tray is 3.5 Kg and 2Kg for 40mm GN 2/3 trays. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 7 When using cleaning products, special attention and appropriate safety measures must be taken to handle said products. Always read the safety data sheet for different chemical products before using them and follow their instructions for use. These products, in COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 8 MyCare CleanDuo and DA21 cleaning products have been specially formulated for the correct cleaning and protection of Mychef ovens with automatic washing. The product contains, in addition to detergent, rinse aid for a perfect finish. The use of this detergent is mandatory in Mychef COMPACT MASTER ovens.
  • Page 9 During transportation of the oven, it must always be in a vertical position. It must be lifted perpendicular to the ground and transported parallel to it. Make sure that during transport it does not tip over or hit any object. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 10 50mm from the rear o 500mm from the top The equipment should be placed on a Mychef support table or wall mount. If there are sources of heat or steam near the equipment (stoves, embers, griddle, fryer, pasta cooker, kettle, tilting frying pan, etc.), these must be at a distance greater than 1 meter.
  • Page 11 Be extremely cautious with oven cooling zones. If it sucks in vapors or hot air, it can drastically reduce the life time of the components. To install stacked Mychef ovens, follow the instructions that will be supplied with the corresponding stacking kit.
  • Page 12 If two devices are stacked, both must be connected to the equipotential system. Connection to an equipotential bonding system guarantees additional safety in the event of simultaneous ground leakage and differential failure. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 13 Never connect a phase to neutral or ground. Check that the installation voltages correspond to those of the equipment. The following subchapters show the types of connections possible for Mychef ovens. 5.1.1. Three-phase connection 400V 3L+N Color...
  • Page 14 Board4. Three-phase cable 230V 3L Figure4. Three-phase connection 230V 3L 5.1.3. Single-phase connection 230V L+N Color Wire Black ■ ■ Blue Neutral Green yellow Land ■ Board5. Single-phase cable 230V L+N Figure5. Single-phase connection 230V mychefpro.com COMPACT MASTER PRODUCT MANUAL - 02/08/2023...
  • Page 15 Contact our technical department in case of any questions. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 16 Copper (Cu) less than 0.05 mg/L Conductivity less than 20uS/cm Use of descaler and Mychef filter mandatory. The use of water with characteristics other than those indicated can cause serious problems in the oven components, such as corrosion in the cooking chamber or glass, premature failure of the solenoid valves, etc.
  • Page 17 5.2.2. Drain For the correct operation of the steam system of the COMPACT MASTER ovens, the equipment must be connected to a drainage system with a nominal diameter 40mm (DN40) through a heat-resistant and siphonic type pipe. Mychef COMPACT MASTER ovens internally incorporate a system to block odors that may come from the drain.
  • Page 18 6. USE 6.1. control Panel The figure below shows the control panel of the Mychef COMPACT MASTER ovens. It is made up of a central screen with displays, indicators and buttons. Figure8. COMPACT MASTER control panel The functionality of each of them is explained below: COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1...
  • Page 19 Figure9. COMPACT MASTER control panel detail COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 20 Button for selecting the self-cleaning program on button COMPACT MASTERs. Board6. Control panel description The central screen is a very important part when interacting with the oven, since it indicates the value of each cooking parameter. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 21 To carry out continuous cooking, press the adjustment button – until CONT appears on the display. In the COMPACT MASTER, when the probe is activated, to the right of C, the temperature in ºC that we intend to reach inside the cooking is displayed.
  • Page 22 The LOAD message indicates that the oven has reached the preheating temperature and the oven can now be loaded. Closing the door will begin the cooking cycle. The OFF message indicates that the phase is disabled. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 23 If the equipment does not turn on, check the status of the safety thermostat, located on the back of the equipment. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 24 There are three cooking modes: convection, mixed and steam. To select a specific mode, click on the corresponding button. Figure12. Cooking mode selector Figure13. Mixed mode humidity adjustment Convection mode acts as a forced convection oven without adding or removing moisture from the cooking chamber. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 25 In all cooking modes it is possible to humidify the chamber at will. To do this, press the HUMIDITY button until the oven sprays water into the cooking chamber. 6.1.3. Cooking control 6.1.3.1. Cooking by temperature and time control with temperature adjustment COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 26 At this point, the time indicator will show the keyword “End”, the oven will beep for a few seconds until the user finishes cooking by lightly pressing the START/STOP button. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 27 Figure16. Example. Cooking at 90ºC for 10 minutes Figure17. Oven temperature 6.1.3.2. Cooking by temperature and control by heart probe in the COMPACT MASTER The heart probe controlled temperature cooking control mode ends cooking when the temperature at the core of the food is equal to the selected temperature. The chamber temperature remains constant and equal to the selected temperature value.
  • Page 28 Figure19. Phase indicator Within each phase the cooking parameters are configured. During cooking, its progress appears on the screen, shown with Ph followed by the activated phase in relation to the final phase. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 29 If a parameter other than time is selected on the display, the last point will flash to indicate that cooking is in progress. Figure21. cooking indicator COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...

  • Page 30: Speed Selection

    At the end of a cooking cycle, the equipment visually and acoustically signals this status. Specific: A beep is emitted. The oven chamber light comes on. The keyword END appears on the central display until the user finishes cooking. To finish cooking, press START/STOP. 6.1.6. Speed selection COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 31 To do this, press the fan speed button. Then select the appropriate speed with the +/- buttons. Figure24. 4 speeds available: 1, 2, 3 and maximum (HI) for COMPACT MASTER 6.1.7. Save a program To save a program, press the PROG key and select the program with the +/- keys. Next, select the temperature, humidity, time and speed parameters for each of the phases.
  • Page 32 6.1.10. Automatic cleaning Only available on models with the MyCare self-cleaning system. 6.1.10.1. Self-cleaning and rinsing program on COMPACT MASTER models Using the MyCare cleaning system allows automatic cleaning of the cooking chamber and has a washing program specifically designed to use the CleanDuo detergent. Its special formulation stands out for having double the concentration of active product than most similar products available on the market.
  • Page 33 In this mode the convection fan turns on and the heaters turn off. In this particular case, even if the oven door is opened, the process will not stop and the fan will continue rotating. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 34 If cooling is not necessary, you can directly place the MyCare detergent in its assigned space, and start the cleaning or rinsing cycle by pressing the START/STOP key. Place as many tablets as there are holes in your oven. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 35 If at the end of any of the automatic cleaning processes you detect that there are traces of detergent in the chamber (even behind the fan protection plate), carry out a self-cleaning COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 36 Errors and alarms may occur during the preparation and execution of cooking or washing processes. If this is the case, the error or alarm code will be shown on the central screen. Figure30. error indicator COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...

  • Page 37: Communication Error

    ERROR PROBE3 TEMP SENSOR Reserved. Not used. SHORTED ERROR PROBE4 TEMP SENSOR fifteen Reserved. Not used. NOT CONNECTED ERROR PROBE4 TEMP SENSOR Reserved. Not used. SHORTED ERROR PROBE5 TEMP SENSOR Reserved. Not used. NOT CONNECTED COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 38 HOT ERROR ALARM RECOVERY TEMP TOO Reserved. Not used. INVERTER ERROR Reserved. Not used. Single point probe not connected. Check the SINGLE POINT PROBE ERROR probe and wiring. Board10. Errors, alarms and possible solutions COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...

  • Page 39: Using The Remote Control

    To link a device (mobile, tablet or computer) you must first configure a Wi-Fi connection on the oven. In the next section (7.1.2Wi-Fi connectivity) explains in detail how to configure this configuration. It is recommended to use the Google Chrome browser for best performance. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 40 Next, said Wi-Fi network will be selected on the device with which we want to link the oven. Once the Wi-Fi network is selected, enter the code or password provided by Mychef and wait for a configuration web portal to open automatically In this configuration web portal, you will enter the data of your usual Wi-Fi network and the one with which you want to connect the oven to the Internet (SSID).
  • Page 41 Inthe “Mychef login email” field must enter the username that has been created previously (7.1.1Creating a new user). It is important to write down the MAC address (MAC address) that appears at different points in the configuration, since this is unique for each device and will be necessary to link the equipment to the remote control.
  • Page 42 Once the Wi-Fi network is configured, it is important to wait a few minutes until the Wi-Fi network disappears (Mychef + MAC address). If this does not happen, it means that the configuration data entered to authenticate on the Wi-Fi network is not correct.
  • Page 43 7.1.4. control Panel In theFigure37 andFigure38 You can see the control panel of the ovens linked to the user account. The functionality of each panel element is explained below. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 44 L and setting the temperature value to be reached by the probe. The fan speed can be selected using the P block drop-down menu. In the case of the COMPACT MASTER it allows 4 speeds (1,2,3 and High). COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1...
  • Page 45 Indicates the real-time humidity value of the oven cooking EITHER (Real Point) chamber. Real oven cooking time Indicates the value of the cooking time that has passed indicator (Real Point) since cooking started. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 46 7.2.1. Synchronization of devices to Google Home At the moment, Mychef's intelligent voice control is only available in its entirety in English, so it is necessary to change the language of the mobile device with which it will be used to English to enjoy all the functionalities.
  • Page 47 1. On the home screen of the app we select the add symbol “+” and then “Configure the device”. Figure40. Screenshots, steps to follow Google Home application 2. The “Work with Google” option will be selected and then the “Mychef Control” service will be searched in the list of providers. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1...
  • Page 48 Whenever an oven is added or deleted in the control web application, the Google Home home screen will automatically update with the new devices. If not, it is necessary to unlink the account from the Mychef Control service. and repeat the steps in this section again so that the devices appear or disappear on the Google Home home screen.
  • Page 49 Figure42. Authentication server screen and messages that appear while validating and synchronizing information Figure43. Authentication server screen and messages that appear while validating and synchronizing information COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 50 “OK Google” or “Hey Google”, the Google Assistant will open, which will listen to In these commands the word “Mychef” appears to refer to the oven in question, but this word can be replaced by the name you want to give to the oven once it is added to the web control.
  • Page 51 1. Go to settings in Google Assistant and select the “Routines” icon. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 52 Figure45. Capture Google Assistant application 2. Next, manage routines and press the add icon (+). Figure46. Capture Google Assistant Routines COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 53 Assistant application In these commands the word “Mychef” appears to refer to the oven in question, but this word can be replaced by the name you want to give to the oven once it is added to the web control.
  • Page 54 Figure48. Execution of the configured routine via voice command in the Google Assistant application COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 55 Wi-Fi access point 7.3.3. Unlink “Mychef Control” service To unlink the Google account to the “Mychef Control” service, it is necessary to follow the steps in the section7.2.1Until the list of service providers appears, this screen will appear that we are linked to the “Mychef Control”...
  • Page 56 State Description On-line The equipment is connected waiting to start cooking or washing. In order to add the shortcut to the home screen, the Chrome application must have permissions to perform this action. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 57 In the same way, if you want to edit a recipe, the same form will open with the data previously entered at the time it was created and it will be enough to modify the data to the new desired parameters. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 58 Figure52. Recipe creation form If a recipe is chosen, the cooking parameter entry fields will be locked with the values of the recipe in question; to modify the cooking values again, select Manual cooking. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...

  • Page 59: Maintenance

    Frequency Inside the chamber Daily Compartment behind the suction plate Daily door draft excluder Daily Exterior plates of the equipment Daily Chamber drainpipe Weekly Interior-exterior door compartment Weekly Board14. Mychef oven cleaning frequency COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 60 Pressure water cleaning equipment. Steam cleaning equipment. Any use of the elements described above is harmful to the equipment and could cause it to break and would void its warranty. Mychef is exempt from any liability. 8.1.1. cooking chamber Mychef iCOMPACT ovens incorporate self-cleaning as standard (MyCare) for automatic and unattended cleaning of the cooking chamber.
  • Page 61 (B). To clean the interior surfaces, only use a soft cloth with a little soapy water. Rinse and dry carefully. Before removing the fan protection, the tray guides must be removed. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 62 To clean these more delicate surfaces (control support and the control itself), only a very soft cloth and a delicate surface cleaning product should be used. Take special care with the control panel, Mychef will not be responsible for any damage caused to this element if it is not cleaned correctly.

  • Page 63: Tray Support

    To clean the stainless steel guide bodies, only use a soft cloth with a little soapy water. Do not use abrasive elements, rinse and dry carefully. Figure54. Detail of the process of removing the guide body COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
  • Page 64 8.1.7. door glass Mychef COMPACT MASTER ovens are equipped with a high thermal efficiency door with three glasses to minimize heat losses. In order to clean these three glasses and the door itself, you must open the exterior door and open the clips holding the two glasses.
  • Page 65 Do not use the hand shower faucet accessory on the door glass while it is hot, there is a risk of breakage due to thermal shock. 8.2. Periods of inactivity If the Mychef oven is to be inactive for long periods of time, the following precautions must be followed: •...
  • Page 66 These periodic reviews must be carried out by an authorized technical service. The following table shows the operations to be carried out in the Mychef ovens in each of the reviews. The table is circular, and after 20,000 hours of use or 10 years, counting would begin again on the left of the table.
  • Page 67 Before any manipulation for maintenance or repair, the equipment must be disconnected from the electrical supply network. If the power cord is damaged, it must be replaced by your after-sales service or similarly qualified personnel in order to avoid risks. COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1 mychefpro.com...
